Spesifikasi Turbosound NuQ152 2-Way 15" Full-Range Passive Loudspeaker

Turbosound NuQ152 2-Way 15" Full-Range Passive Loudspeaker

NuQ152

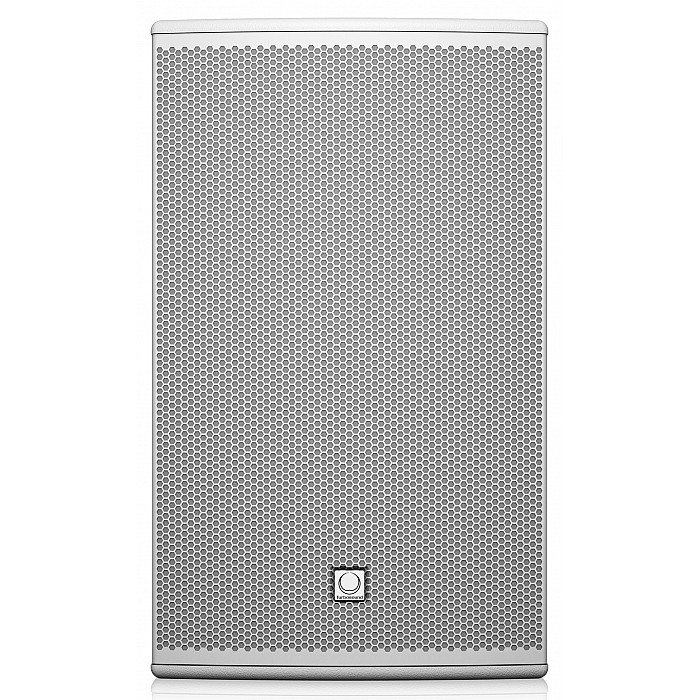

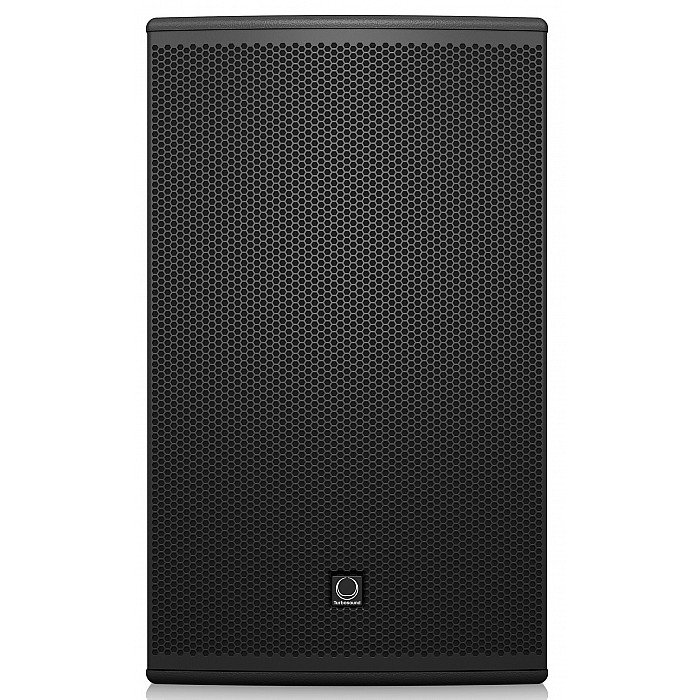

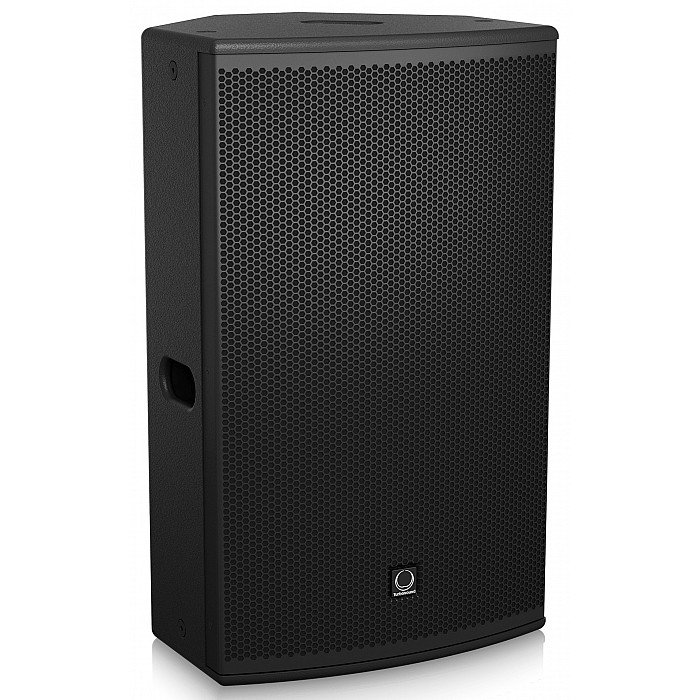

The 2 way full range NuQ152 is a switchable passive/bi-amp 2,000 Watt 15" loudspeaker system ideally suited for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the NuQ152 provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. The symmetrical trapezoidal shape and high frequency dispersion pattern also make the NuQ152 an obvious choice for mirrored left/right monitor wedge placement.

The NuQ152 loudspeaker features a carbon fibre loaded 15" low frequency driver with an inside/outside wound low mass voice coil for improved transient response, and an aluminium dome 1" neodymium high frequency compression driver mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

Ideally suited for a broad array of speech and music sound reinforcement applications, the 2-way, full-range NuQ152 from Turbosound is a switchable passive/bi-amp 2,000 Watt 15" loudspeaker system that's engineered to work in concert with Turbosound's loudspeaker management systems. It provides optimal performance for front-of-house (FOH), sidefill and delay line loudspeakers, plus it's an outstanding choice for wedge monitoring applications as well. Its symmetrical trapezoidal shape and high frequency (HF) dispersion pattern also make it an obvious choice for mirrored left/right monitor wedge placement.

It features a carbon fiber-loaded 15" low frequency (LF) driver with an inside/outside wound low-mass voice coil for improved transient response, and an aluminium dome 1" neodymium high frequency compression driver mounted on a 70° horizontal by 70° vertical dispersion low distortion waveguide. All the unit's drivers are matched with an internal passive crossover network surrounded by a reflex-loaded enclosure, with bi-amp mode engaged by means of a switch located on the rear panel. Additionally, the rear panel connector plate carries Neutrik speakON® NL4 connectors, enabling input and link connections to additional enclosures (sold separately).

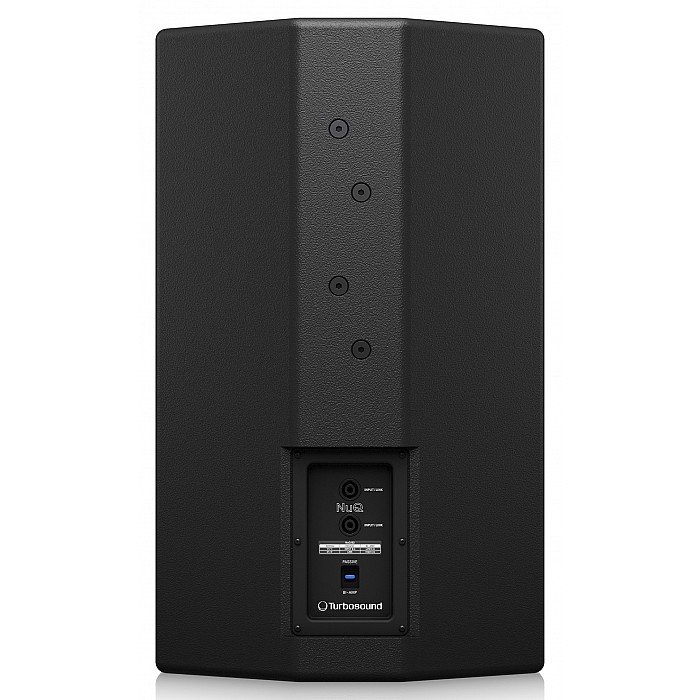

The cabinet comes finished in a highly-durable semi-matte black paint, is constructed from ⅝" (15mm) birch plywood, and includes a rugged, powder coated perforated-steel mesh grille backed with reticulated foam. Multiple threaded rigging points are also provided for suspension in any orientation, or for mounting with industry-standard wall brackets. An optional flying yoke allows for further flexibility in install applications (sold separately). The unit features a 35mm socket receptor for standard pole-mounting, plus integrated handles for convenient transport.

Features:

• 2-way, full-range loudspeaker for portable PA applications
• 500 Watts continuous, 2,000 Watts peak power
• Ideal for FOH, side fill and monitor applications
• Carbon fiber-loaded 15" LF driver with inside/outside coil
• Aluminum dome 1" neodymium motor compression driver
• Low-distortion waveguide provides 70° H x 70° V dispersion
• ⅝" (15mm) birch plywood enclosure with hard-wearing semi-matte black paint finish
• Rugged, powder coated perforated steel-mesh grille
• Integral 35mm pole-mount and handles
• Multiple internal rigging points allow bracket mount and suspension in any orientation
• Neutrik speakON NL4 connectors for reliable long life operation
• 3-Year Warranty Program (Contact your Sales Pro for further details)
• Designed and engineered in England
•

Specifications:

• Frequency Response: 50 Hz – 18 kHz (± 3 dB); 45 Hz – 20 kHz (-10 dB)
• Nominal Dispersion: 70° H x 70° V @ -6 dB points
• Directivity Factor (Q): 9.4
• Directivity Index (DI): 9.7
•

Power Handling (IEC):
Passive: 500 W continuous, 2,000 W peak

• Bi-amp: LF: 500 W continuous, 2,000 W peak HF: 40 W continuous, 160 W peak
• Sensitivity: 97 dB (1 W @ 1 m)

Maximum SPL:
Passive: 8 Ω
Bi-Amp: LF: 8 Ω HF: 6 Ω

• Crossover Type: Passive / Bi-amp switchable
• Components: 1x 15" (394 mm) LF driver; 1x 1" (25 mm) HF compression driver
• Connectors: 2x Neutrik speakON NL4
•

Wiring:
Passive: Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp: Pins 1+ / 1- LF, pins 2+ / 2- HF

• Dimensions (HxWxD): 28" x 16.9" x 15.2" (712mm x 430mm x 385mm)
• Net Weight: 53.7 lbs. (24.4 kg)
• Construction: ⅝" (15mm) birch plywood
• Finish: Semi-matte black paint
• Grille: Powder coated perforated steel
• Flying Hardware: M10 x12 points
