Spesifikasi RCF SUB 705AS MK3 Active Subwoofer

RCF SUB 705AS MK3 Active Subwoofer

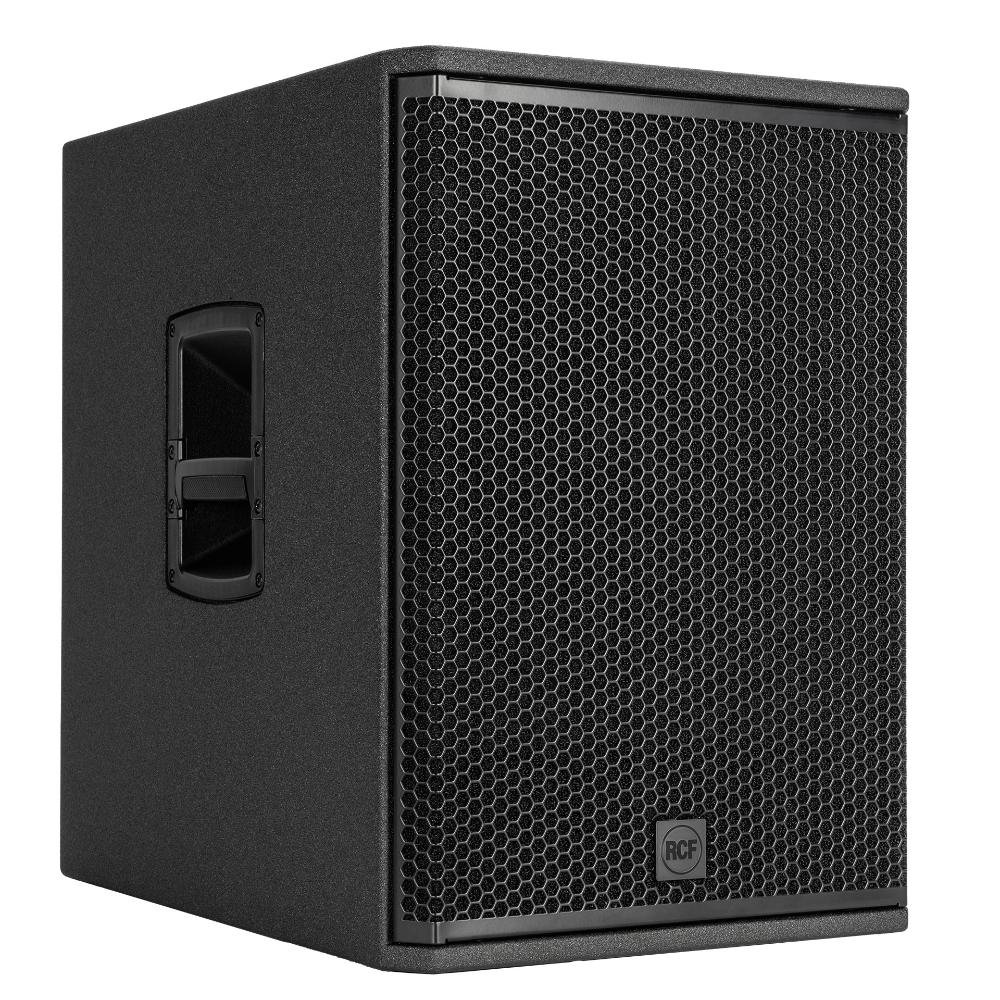

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.

Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.

Power That Moves
RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

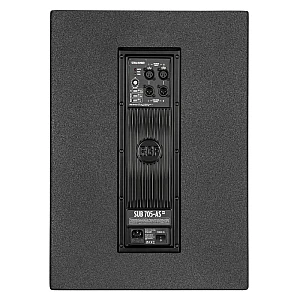

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:

• - X-OVER PRESET 80Hz/120Hz
• - POLARITY REVERSE
• - OUT SIGNAL, LINE / HIGH PASS

Tour-Ready Workhorse

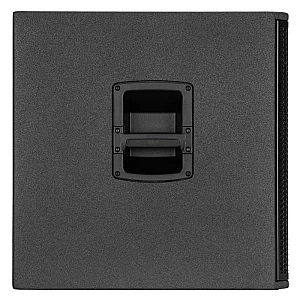

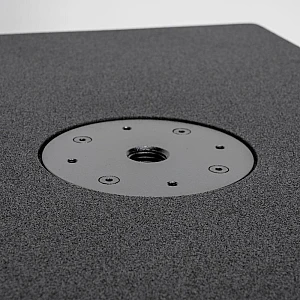

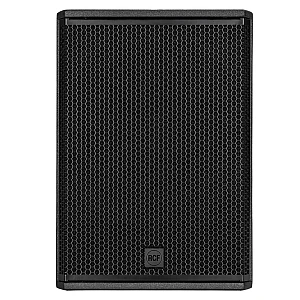

The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.

SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS

Frequency Response:
40 Hz ÷ 120 Hz
Max SPL @ 1m:
131 dB

TRANSDUCERS
Woofer:
15'', 3.0'' v.c

INPUT/OUTPUT SECTION
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu

PROCESSOR SECTION
Hi-Pass Frequencies:
110 Hz
Low-Pass Frequencies:
80 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Volume, EQ, Phase, Xover

POWER SECTION
Total Power:
1400 W Peak, 700 W RMS
Low frequencies:
1400 W Peak, 700 W RMS
Cooling:
Convection
Connections:
VDE

PHYSICAL SPECIFICATIONS
Cabinet/Case Material:
Baltic birch plywood
Handles:
One each side
Pole mount/Cap:
Yes
Grille:
Steel with clothing
Color:
Black

SIZE
Height:
598 mm / 23.54 inches
Width:
420 mm / 16.54 inches
Depth:
590 mm / 23.23 inches
Weight:
27.5 kg / 60.63 lbs
