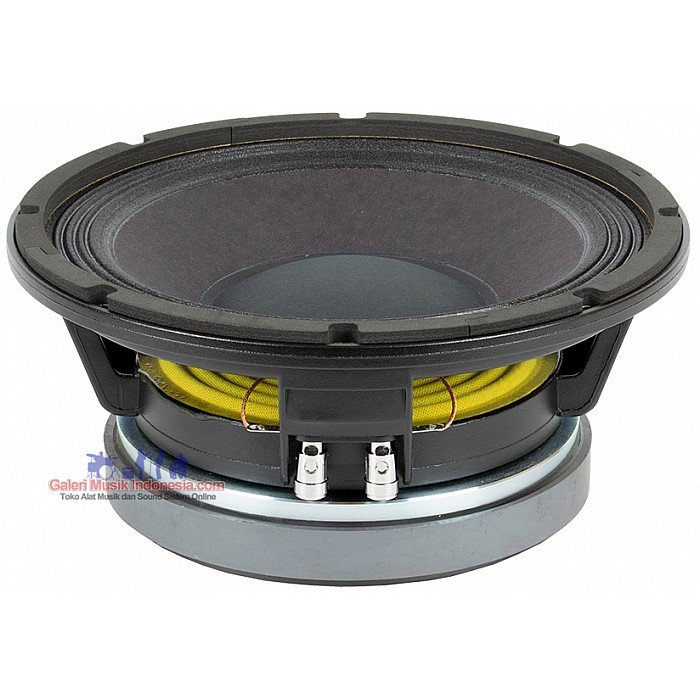

Beyma 10 MI 100 10 Inch Midrange Speaker
Rp.3.000.000,00
Tersedia
Spesifikasi Beyma 10 MI 100 10 Inch Midrange Speaker
Beyma 10 MI 100 10 Inch Midrange Speaker
- THE BEYMA 10Mi100 10" HIGH QUALITY MIDRANGE CAST FRAME SPEAKER THAT HANDLES 350 WATTS AES & 700 WATTS PROGRAM POWER HANDLING
- SUPER CLEAN LOUD MIDRANGE THAT IS NATURAL SOUNDING
- FEATURES A LIGHT CONE OF 38 GRAMS THAT ALLOWS FOR A FAST MOVING CONE FOR CLEARER MORE PRECISE MIDRANGE
- HIGH EFFICIENCY OF 3%, EXTREMELY LINEAR FREQUENCY RESPONSE & VERY LOW HARMONIC DISTORTION
- DESIGNED FOR THE HIGHEST QUALITY MID-FREQUENCY REPRODUCTION
- ONE OF THE BEST SOUNDING 10" MID-BASS SPEAKERS YOU'LL FIND ANYWHERE!
|
Specifications |
|
|
Nominal Basket Diameter |
10" / 250mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
350 Watts |
| Program Power | 700 Watts |
|
Frequency Response |
70Hz - 4.0kHz |
|
Sensitivity (1W/1m) |
98dB |
|
Voice Coil Diameter |
3" / 77mm |
| Recom. Enclosure Volume | .7-1.77 ft3 / 20-50 Liters |
| Voice Coil Length | 13.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 18.7 N/A |
| Magnetic Assembly Weight | 14.2 lb. / 6.5 kg. |
|
Mounting Information |
|
| Overall Diameter | 10.25" / 260.5mm |
| Bolt Circle Diameter | 9.58" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.0" / 228mm |
| - Rear Mount | 9.05" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
| Overall Depth | 4.72" / 120mm |
| Net Weight | 15.6 lb. / 7.1 kg. |
| Shipping Weight | 16.5 lb. / 7.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 6.6 |
| Electrical Factor (Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) | 1.91 ft3 / 54 Liters |
| Voice Coil Overhang (Xmax) | 4.5 mm |
| Moving Mass (Mms) | 38 Grams |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Reference Efficiency | 3.0% |
| Displacement Volume (Vd) | 170 cm3 |
|
Frequency Response & Distortion Curves |
|
|
|
|
|
Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
Beyma 10 MI 100 10 Inch Midrange Speaker
Kode Produk: 10 MI 100
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.3.000.000,00
Spesifikasi Beyma 10 MI 100 10 Inch Midrange Speaker
Beyma 10 MI 100 10 Inch Midrange Speaker
- THE BEYMA 10Mi100 10" HIGH QUALITY MIDRANGE CAST FRAME SPEAKER THAT HANDLES 350 WATTS AES & 700 WATTS PROGRAM POWER HANDLING
- SUPER CLEAN LOUD MIDRANGE THAT IS NATURAL SOUNDING
- FEATURES A LIGHT CONE OF 38 GRAMS THAT ALLOWS FOR A FAST MOVING CONE FOR CLEARER MORE PRECISE MIDRANGE
- HIGH EFFICIENCY OF 3%, EXTREMELY LINEAR FREQUENCY RESPONSE & VERY LOW HARMONIC DISTORTION
- DESIGNED FOR THE HIGHEST QUALITY MID-FREQUENCY REPRODUCTION
- ONE OF THE BEST SOUNDING 10" MID-BASS SPEAKERS YOU'LL FIND ANYWHERE!
|
Specifications |
|
|
Nominal Basket Diameter |
10" / 250mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
350 Watts |
| Program Power | 700 Watts |
|
Frequency Response |
70Hz - 4.0kHz |
|
Sensitivity (1W/1m) |
98dB |
|
Voice Coil Diameter |
3" / 77mm |
| Recom. Enclosure Volume | .7-1.77 ft3 / 20-50 Liters |
| Voice Coil Length | 13.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 24 mm |
| BL Factor | 18.7 N/A |
| Magnetic Assembly Weight | 14.2 lb. / 6.5 kg. |
|
Mounting Information |
|
| Overall Diameter | 10.25" / 260.5mm |
| Bolt Circle Diameter | 9.58" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.0" / 228mm |
| - Rear Mount | 9.05" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
| Overall Depth | 4.72" / 120mm |
| Net Weight | 15.6 lb. / 7.1 kg. |
| Shipping Weight | 16.5 lb. / 7.5 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 6.3 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 6.6 |
| Electrical Factor (Qes) | .22 |
| Total Q (Qts) | .21 |
| Comp. Equivalent Vol. (Vas) | 1.91 ft3 / 54 Liters |
| Voice Coil Overhang (Xmax) | 4.5 mm |
| Moving Mass (Mms) | 38 Grams |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Reference Efficiency | 3.0% |
| Displacement Volume (Vd) | 170 cm3 |
|
Frequency Response & Distortion Curves |
|
|
|
|
|
Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
