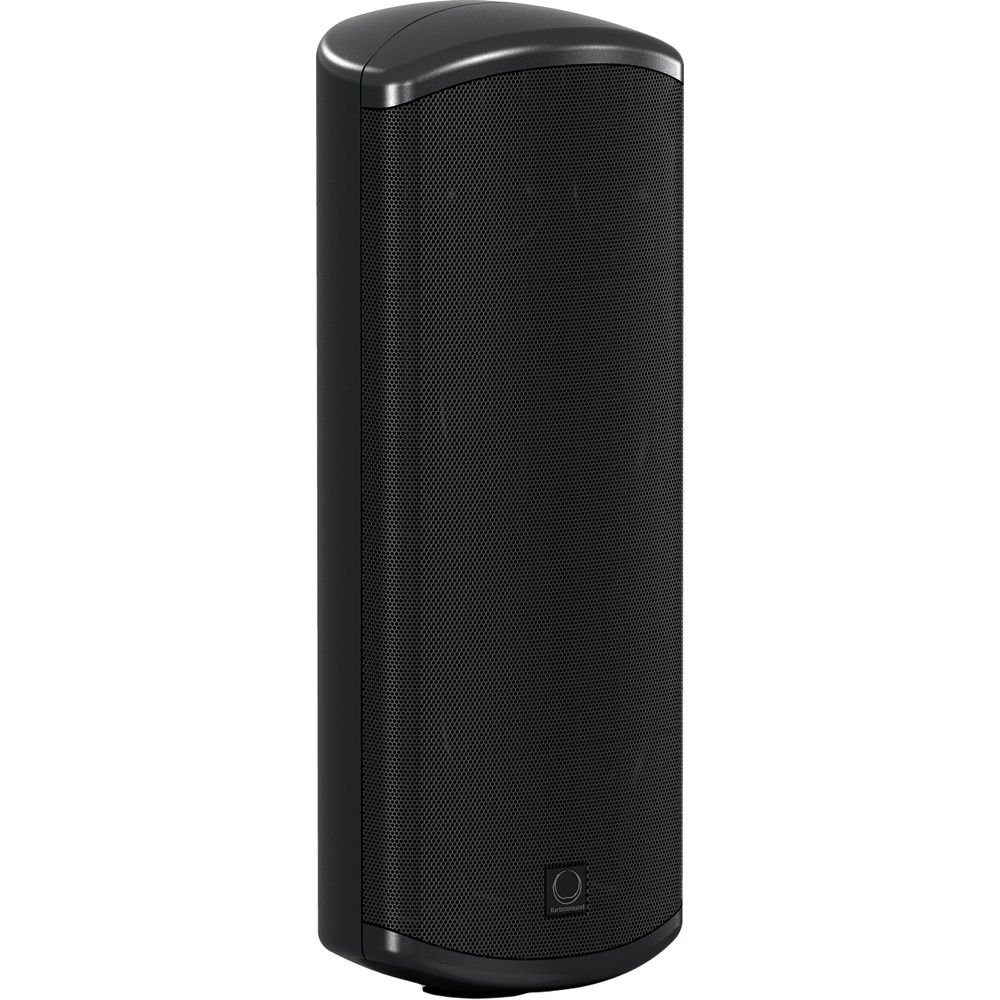

The Impact TCI53-T Dual 2-Way 5" Full-Range Loudspeakers with Line Transformer from Turbosound is a passive 2-way surface-mount loudspeaker that is suitable for a wide range of installed speech and music applications. It features a peak power-handling capacity of 480W and 120W in continuous operation. The system consists of dual high-excursion 5" low-frequency drivers with a high-temperature voice coil and dual 1" neodymium ferrofluid-cooled high-frequency drivers mated to a proprietary elliptical waveguide for a wide 100 x 70° (horizontal x vertical) dispersion pattern.
The loudspeaker includes an internal line transformer with multiple taps for use in 70 and 100 V line-distributed sound applications, as well as a direct 8-ohm input for use with low-impedance amplifiers. Taps are provided at 120, 60, and 30W on the 100 V line and 120, 60, 30, and 15W on the 70 V line.

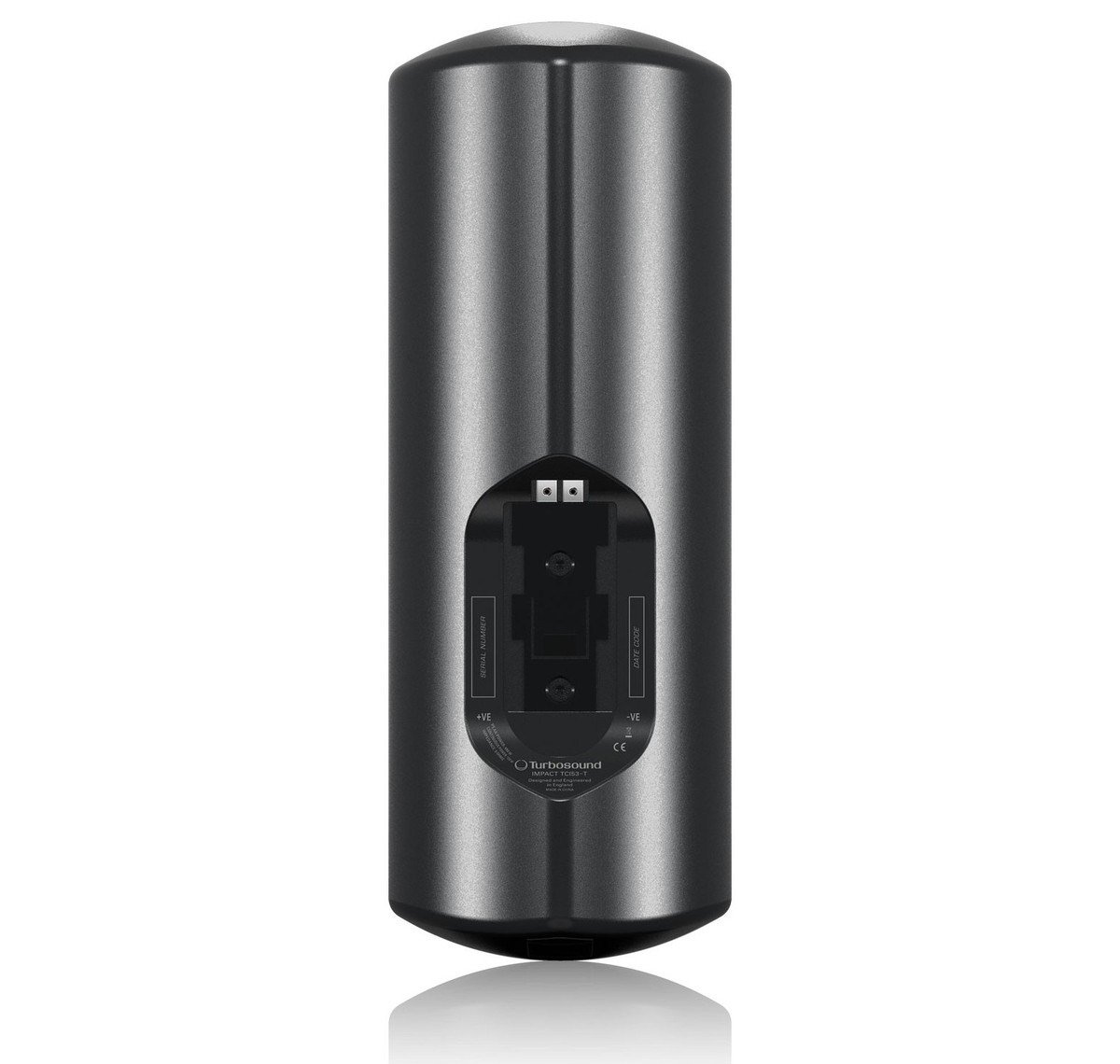

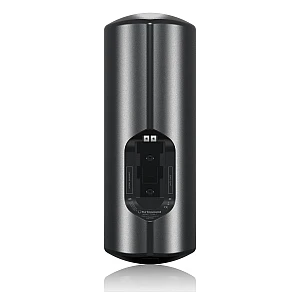

When permanently installed, the architecturally styled, glass-filled and impact-resistant enclosure sports a semi-matte black finish. The included integral wall-mounting bracket provides hidden cable management for a seamless visual presentation. The adjustable wall-mounting bracket also features wire connections for simplified installations. Threaded internal M6 rigging points are also provided for installation with Turbosound wall and ceiling hardware, as well as industry-standard brackets. A convenient 3⁄8" mic-stand fitting, hidden under the EPDM rubber cover on the bottom of the cabinet, allows affixing the speaker to a standard microphone stand for use as a spot monitor.
| System | |
|---|---|
| Frequency Response | 74 Hz to 18 kHz, ±3 dB; 43 Hz to 20 kHz, -10 dB |
| Nominal Dispersion | 100 x 70° (H x V) @ -6 dB points |
| Power Handling | IEC Passive: 120 W continuous, 480 W peak 100 V line: 120, 60, 30 W continuous 70 V line: 120, 60, 30, 15 W continuous |
| Sensitivity | 90 dB (1 W @ 3.3' (1.0 m)) |
| Maximum SPL | Passive: 111 dB continuous, 117 dB peak 100 V line: 117, 114, 111 dB peak continuous 70 V line: 117, 114, 111, 105 dB peak |
| Impedance | 8 ohms |
| Components | 2 x 5" (127 mm) LF driver 2 x 1" (25 mm) HF soft dome driver |
| Enclosure | |
|---|---|
| Connectors | Screw terminal block |
| Wiring | Input positive, negative |
| Construction | Gas-injected, glass-filled molded-ABS enclosure |
| Grille | Powder-coated perforated steel |
| Mounting Interface | M6 x 2 points |
| Dimensions (H x W x D) | 17.7 x 6.5 x 6.2" (45.0 x 16.4 x 15.8 cm) |
| Weight | 11 lb (5 kg) |
The Impact TCI53-T Dual 2-Way 5" Full-Range Loudspeakers with Line Transformer from Turbosound is a passive 2-way surface-mount loudspeaker that is suitable for a wide range of installed speech and music applications. It features a peak power-handling capacity of 480W and 120W in continuous operation. The system consists of dual high-excursion 5" low-frequency drivers with a high-temperature voice coil and dual 1" neodymium ferrofluid-cooled high-frequency drivers mated to a proprietary elliptical waveguide for a wide 100 x 70° (horizontal x vertical) dispersion pattern.
The loudspeaker includes an internal line transformer with multiple taps for use in 70 and 100 V line-distributed sound applications, as well as a direct 8-ohm input for use with low-impedance amplifiers. Taps are provided at 120, 60, and 30W on the 100 V line and 120, 60, 30, and 15W on the 70 V line.
When permanently installed, the architecturally styled, glass-filled and impact-resistant enclosure sports a semi-matte black finish. The included integral wall-mounting bracket provides hidden cable management for a seamless visual presentation. The adjustable wall-mounting bracket also features wire connections for simplified installations. Threaded internal M6 rigging points are also provided for installation with Turbosound wall and ceiling hardware, as well as industry-standard brackets. A convenient 3⁄8" mic-stand fitting, hidden under the EPDM rubber cover on the bottom of the cabinet, allows affixing the speaker to a standard microphone stand for use as a spot monitor.
| System | |
|---|---|
| Frequency Response | 74 Hz to 18 kHz, ±3 dB; 43 Hz to 20 kHz, -10 dB |
| Nominal Dispersion | 100 x 70° (H x V) @ -6 dB points |
| Power Handling | IEC Passive: 120 W continuous, 480 W peak 100 V line: 120, 60, 30 W continuous 70 V line: 120, 60, 30, 15 W continuous |
| Sensitivity | 90 dB (1 W @ 3.3' (1.0 m)) |
| Maximum SPL | Passive: 111 dB continuous, 117 dB peak 100 V line: 117, 114, 111 dB peak continuous 70 V line: 117, 114, 111, 105 dB peak |
| Impedance | 8 ohms |
| Components | 2 x 5" (127 mm) LF driver 2 x 1" (25 mm) HF soft dome driver |
| Enclosure | |
|---|---|
| Connectors | Screw terminal block |
| Wiring | Input positive, negative |
| Construction | Gas-injected, glass-filled molded-ABS enclosure |
| Grille | Powder-coated perforated steel |
| Mounting Interface | M6 x 2 points |
| Dimensions (H x W x D) | 17.7 x 6.5 x 6.2" (45.0 x 16.4 x 15.8 cm) |
| Weight | 11 lb (5 kg) |
