Spesifikasi Turbosound NuQ152-AN 2-Way 15" Full Range Loudspeaker

Turbosound NuQ152-AN 2-Way 15" Full Range Loudspeaker

Widely respected among touring concert professionals and live music fans for its superb, high-grade sound systems, Turbosound pours its decades of experience into this powerhouse of a loudspeaker. Beneath the hood of this muscular 15” NuQ152-AN is a potent yet efficient KLARK TEKNIK Class D amplifier, pounding out an amazing 2500W of clean power.

 The NuQ152-AN’s KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low volume levels and transparent limiting for clarity at high output levels, as well as long-term reliability.

 Impressive low-end and mid-range performances are delivered by a carbon-fiber-loaded 15 in. driver with a low-mass voice coil for improved transient response. An aluminum-dome 1 in. neodymium high-frequency compression driver supplies pure highs.

 As versatile as it is rugged, the NuQ152-AN makes an ideal main speaker for mobile gigs and is equally suited for fixed installations. Designed to work individually without a controller, the NuQ152-AN provides optimal performance for FOH, sidefill and delay line loudspeakers. It’s also an exceptional choice for wedge monitoring applications.

 ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices including mixers, I/O stage boxes and personal monitoring systems.

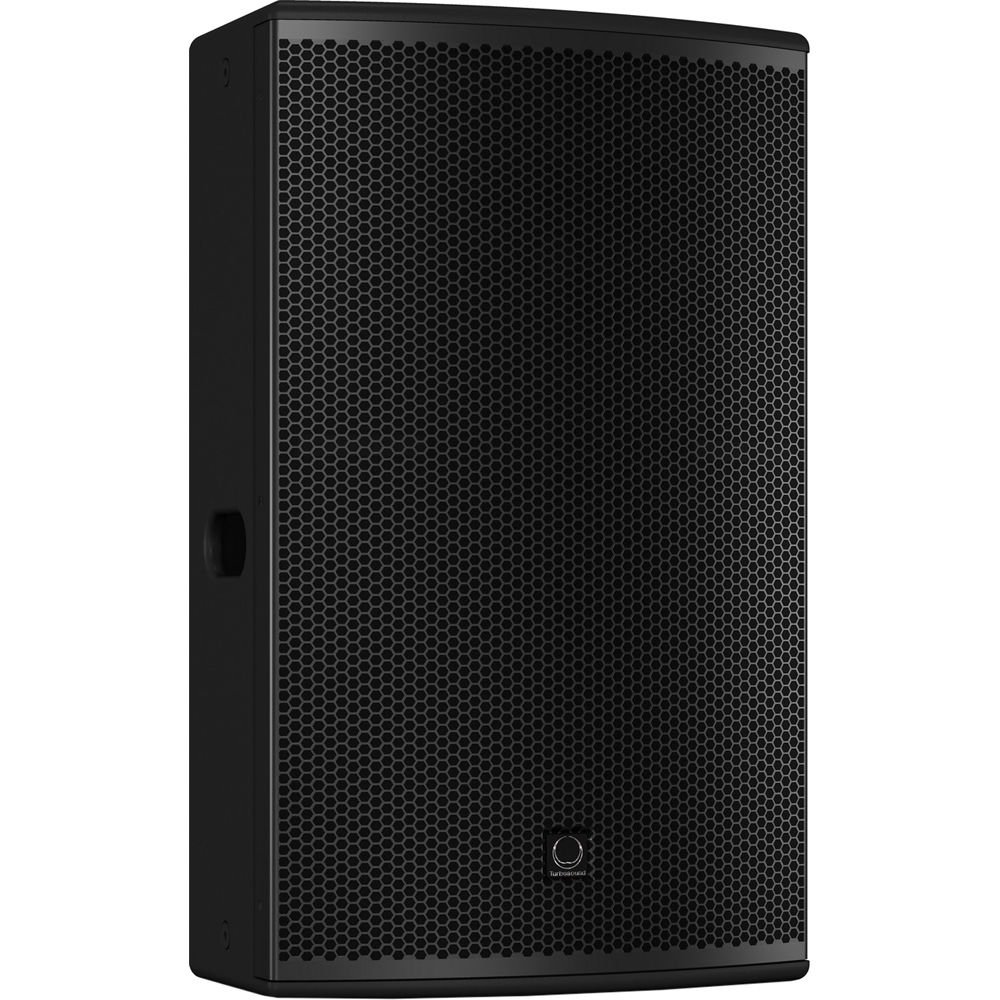

 Finished in a durable, semi-matte black paint, the speaker’s trapezoidal cabinet is constructed from 15 mm birch plywood and includes a rugged, powder-coated, perforated-steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ152-AN also features a 35 mm socket for standard pole mounting, plus integrated handles for convenient transport. Mains power input is provided via a Neutrik powerCON connector. Uncompromising build quality means the NuQ152-AN is designed to withstand the rigors of the road for years to come.

Speaker configuration

• Active/passive: Active
• Type: Full range
• LF driver: 15"
• MF driver: N/A
• HF driver: 1"

Power

• Amplifier class: D
• Wattage: 2500W
• Mixer/preamp: N/A

Audio

• Frequency response: 55Hz - 18kHz +3dB
• Coverage pattern: 70 x 70
• Max SPL: 133 dB

Inputs

• XLR: 1 XLR/TRS combo
• TRS: N/A
• TS: N/A
• RCA: N/A

Output/thru

• XLR: 1
• TRS: N/A
• TS: N/A
• RCA: N/A
• Speak-ON: N/A

Enclosure

• Cabinet material: 15 mm birch ply
• Width: 16.9"
• Height: 28"
• Depth: 15.2"
• Weight: 52 lb.
