Spesifikasi Turbosound Madrid TMS218B Dual 18" Front Loaded Subwoofer

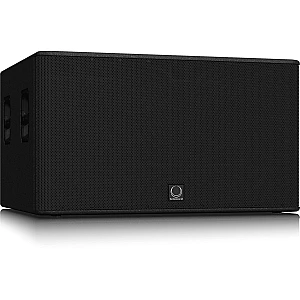

Turbosound Madrid TMS218B Dual 18" Front Loaded Subwoofer

The 6,400-Watt TMS218B is a front-loaded dual 18" subwoofer system designed for a wide range of music and live sound reinforcement applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the TMS218B provides optimal FOH performance, as well as exceptional drum and side fill monitoring duties.

A bass reflex port design enclosure, with a high-powered carbon fiber-loaded 18" low frequency driver that utilizes a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, better heat dissipation, high power handling capacity, and improved efficiency. The TMS218B subwoofer provides fast and accurate transient response for virtually distortion-free operation.

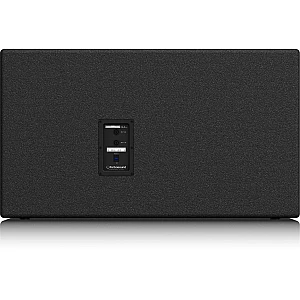

Finished in a highly durable semi-matte black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes a rugged powder-coated perforated steel mesh grille backed with reticulated foam, and durable carry handles that are strategically placed for easy transport. The rear panel connector plate carries Neutrik speakON* NL4 connectors, with switchable input and link connections to accommodate standalone subwoofer applications, or subwoofer and satellite speaker connectivity via 4-core speaker cabling.

Speaker configuration

• Active/passive: Passive
• Type: Subwoofer
• LF driver: 2 x 18"
• MF driver: Not applicable
• HF driver: Not applicable

Power capacity

• 8 Ohms program/peak:
• 4 Ohms program/peak: 1600W/6400W

Audio

• Frequency response: 33Hz - 200Hz +3dB
• Coverage pattern: Not applicable
• Max SPL: 138 dB peak

Inputs

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Enclosure

• Cabinet material: 18 mm particle board
• Width: 23.7"
• Height: 42"
• Depth: 33"
• Weight: 181.1 lb.
