Spesifikasi Beyerdynamic TG 500SR Single Receiver

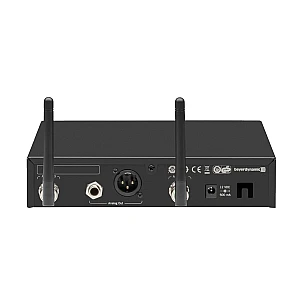

Beyerdynamic TG 500SR Single Receiver

With an operating range of up to 120 metres, the beyerdynamic TG 500 allows for substantially greater freedom than comparable systems. The switching bandwidth is up to 40 MHz, and when all four frequency bands are used, up to 72 channels (18 compatible frequencies per band) can be operated simultaneously, thus making the TG 500 system suitable even for larger installations.

At the heart of every beyerdynamic TG 500 set is an attractively designed receiver with a durable metal enclosure and a parametrised front panel. The combination of intuitive operating elements and a backlit LC display makes the menu navigation particularly user-friendly. The frequency response of the system ranges from 45 to 15 kilohertz. A balanced XLR output and a balanced jack are provided as analogue audio ports.

The diversity antenna operation guarantees optimum reception for all the receivers, ensuring that there are no unwanted interruptions in transmission even in challenging environments. Intermodulation-free transmission frequencies are also provided in preconfigured groups to ensure interference-free multi-channel operation. Frequencies can also be freely allocated. A scan function with automatic search provides assistance for system set-up. The integrated pilot tone function ensures interference-free transmission and gives a warning when the battery power is running low.

The individual receiver takes up a single height unit in the 19” installation; the rack assembly kit supplied allows two 9.5” devices to be installed in one rack.

Features:

• intuitive , user friendly Menu structure
• up to 40 MHz switching bandwidth
• Infra-Red synchronization for relaying settings from receiver to transmitter
• Backlit LC-Display
• Status display (Battery, frequency, Name)
• Scan Function
• BNC- connector
• detachable BNC- antennas
• XLR and jack output (balanced)
• Pilot tone function
