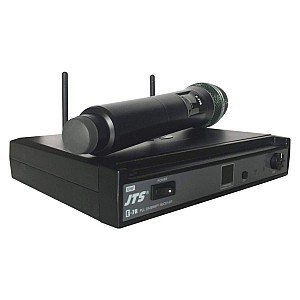

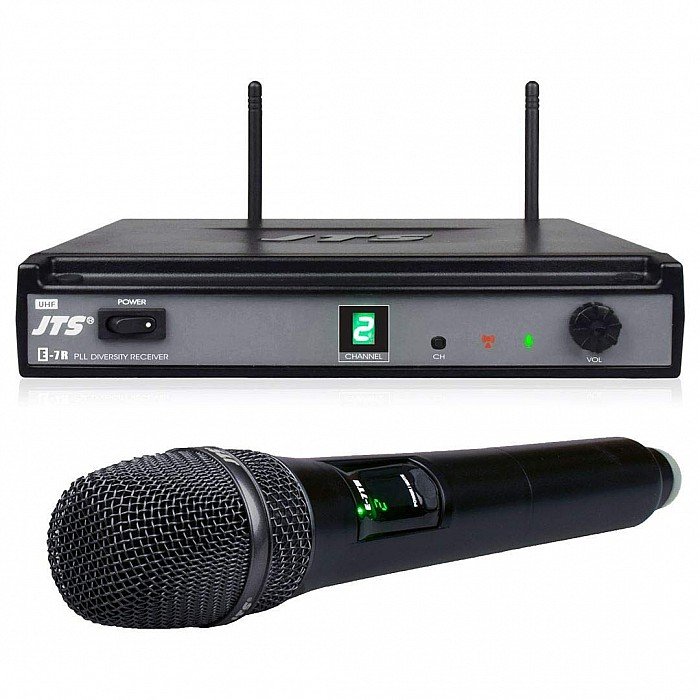

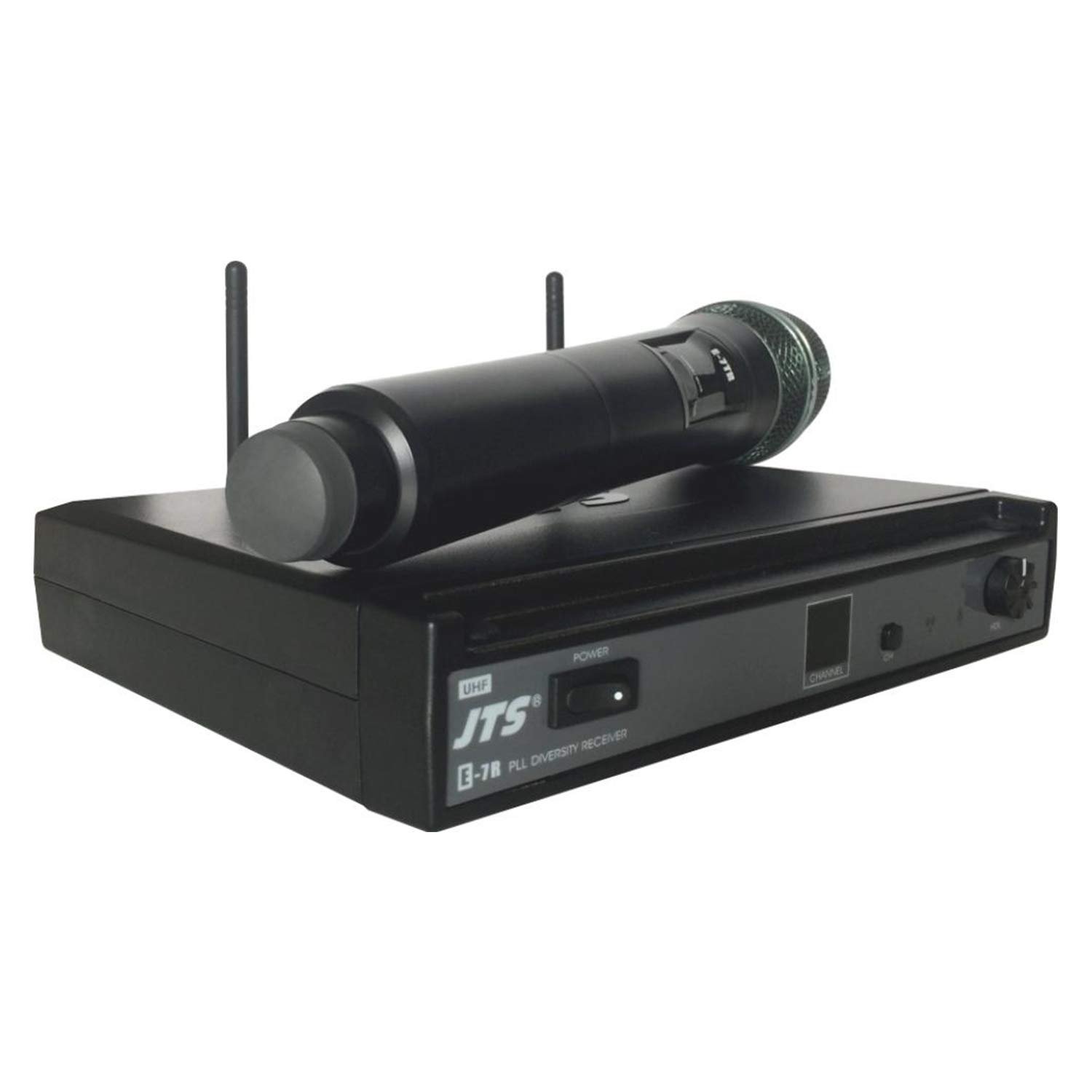

JTS E-7R/E-7TH Single Hand Wireless Microphone

Spesifikasi JTS E-7R/E-7TH Single Hand Wireless Microphone

JTS E-7R/E-7TH Single Hand Wireless Microphone

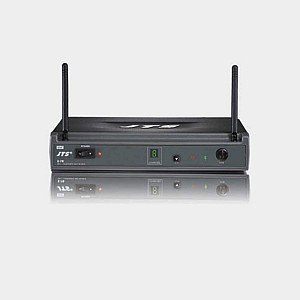

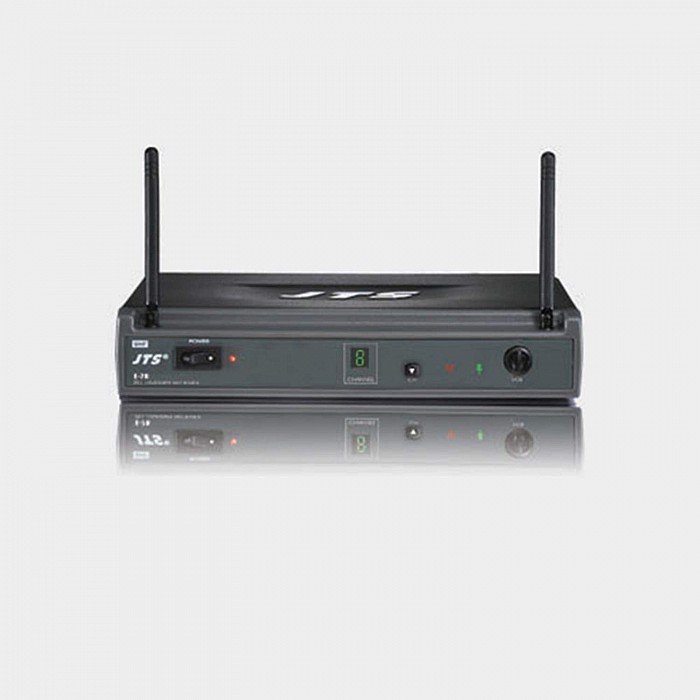

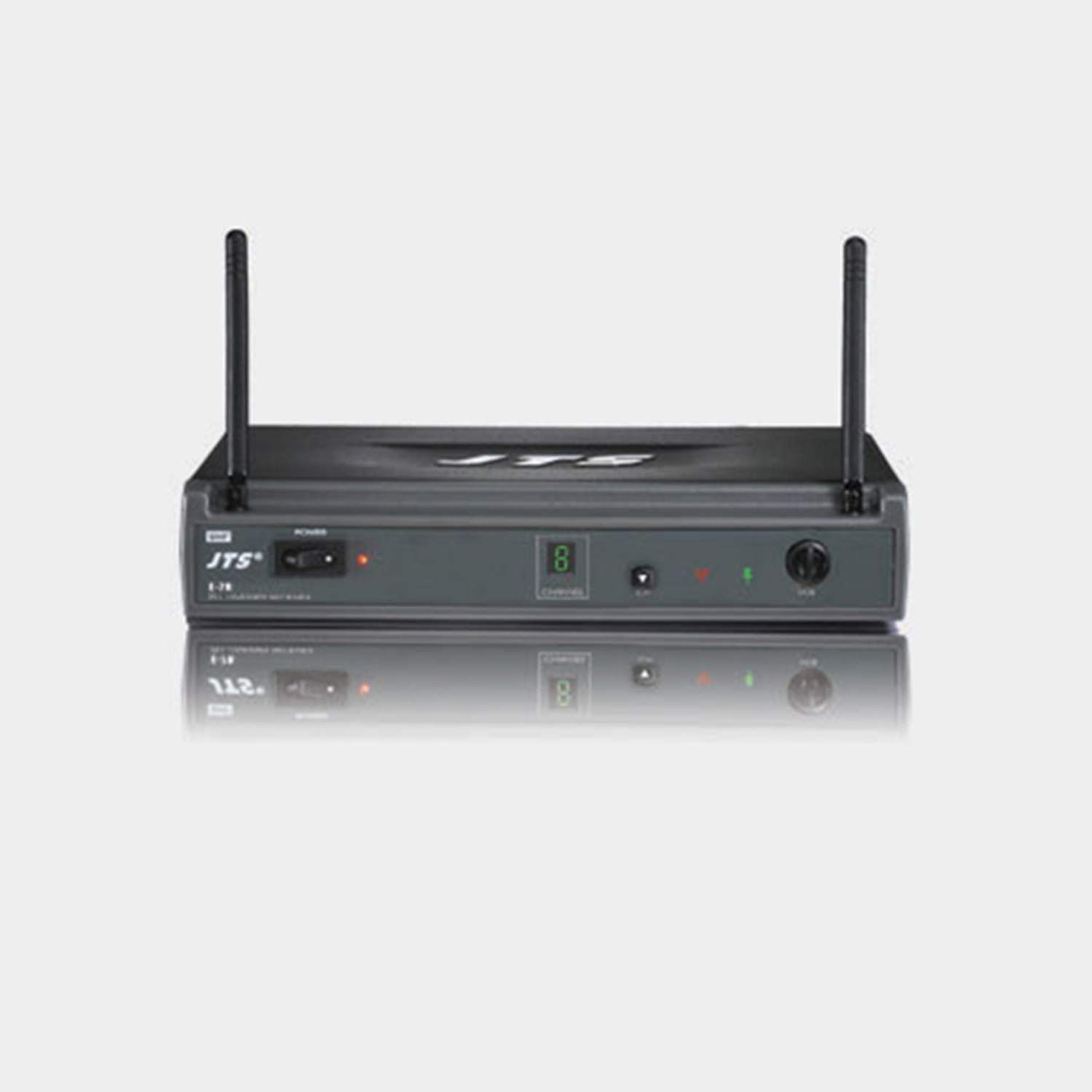

E-7R Overview

Wireless microphone system is of latest wireless circuit design. It provides 16 selectable channels. Stable RF link and good audio performance are assured. 7 segments display makes operation easy. The system is of very affordable price.

E-7R Specifications

Frequency Preparation: PLL Synthesized Control
S/N Ratio: >100dB
T.H.D: <0.6%@1KHz
Display Contents: Channel, RF/AF Status
Controls: Power On/Off, Channel Selecting, Audio Level
Audio Output Level: -15dB
AF Output Impedance: 600Ω
Squelsh: Pilot Tone & Noise Mute
Operation Voltage: 12V 150mA
Output Connector: 6.3mm balanced jack
Dimensions: 210mm x 40mm(H) x 170mm(D)

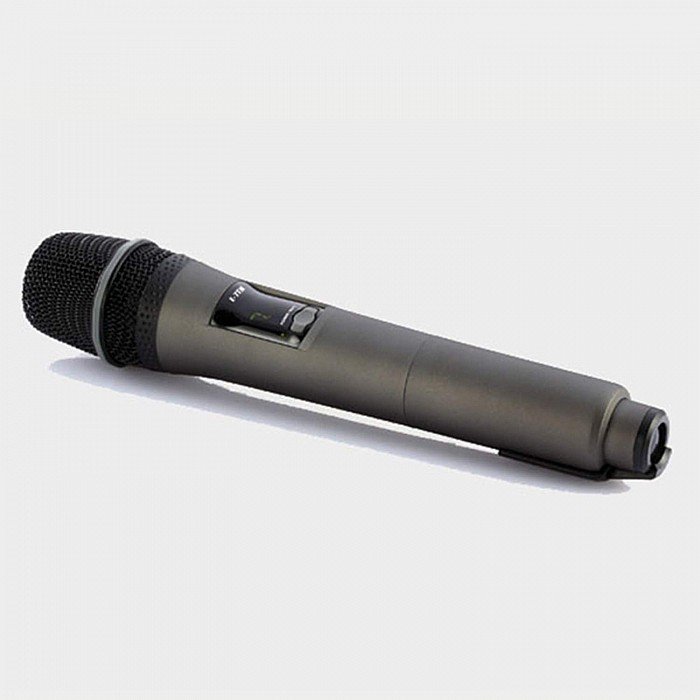

E-7TH Features

16 Selectable channels
PLL synthesized control
Advanced circuitry ensures stable signal transmission
Noise mute and Tone-key squelch
Extended dynamic range and smooth frequency response
Internal antenna design.

E-7TH Specifications

Frequency Preparation: PLL Synthesized Control
Stability Frequency: <±10KHz
Deviation: ±48KHz (Peak)
Display Contents: Channel, Battery Status, Power On/Off, Mute
Controls: Power On/Off, Channel, Mute
Spurious Emissions: <-50 dBC
Audio Frequency Response: 50Hz~18KHz
Battery: UM3, AA Alkaline x2

About this item

1. 16 Selectable channels.
2. PLL synthesized technology.
3. Advanced circuitry ensures stable signal transmission.
4. Noise mute and Tone-key squelch.
5. Extended dynamic range and smooth frequency response.
6.

• Mic ‎Wireless
• Compatible Devices ‎Camcorder, Camera, Personal Computer
• Included Components ‎Battery
• Polar Pattern ‎Omnidirectional
• Audio Sensitivity ‎15 Decibels
• Impedance ‎600 Ohm
• Microphone Form Factor ‎Microphone System
• Item dimensions L x W x H ‎21 x 4 x 71 Centimeters
• Power Source ‎Battery Powered
• Material ‎Metal
• Signal-to-Noise Ratio ‎100 dB
• Number of Channels ‎16
• Frequency Response ‎18 KHz
• Manufacturer ‎JTS
• Product Dimensions ‎21 x 4 x 71 cm; 2.5 kg
• Item model number ‎E-7R/E-7TH
• Item Weight ‎2 kg 500 g
