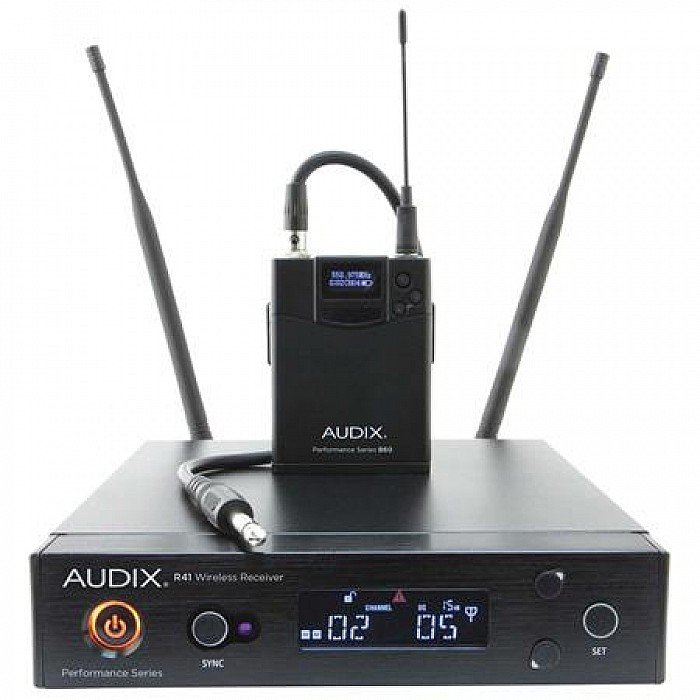

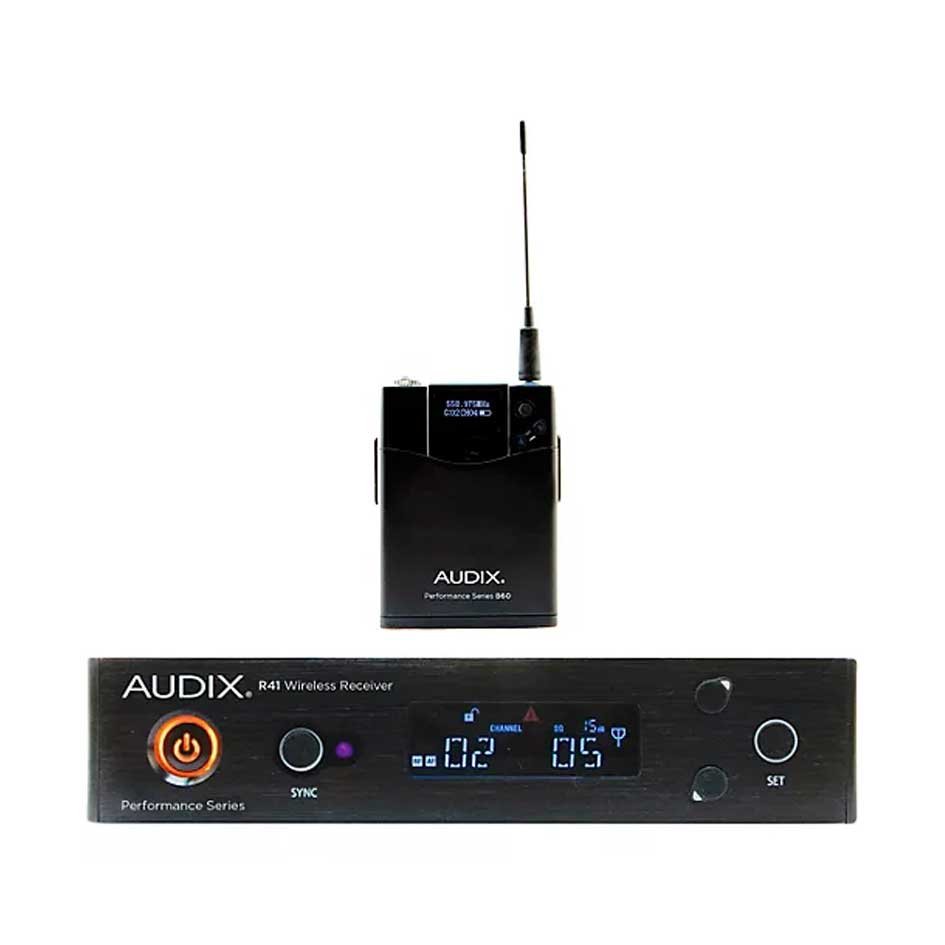

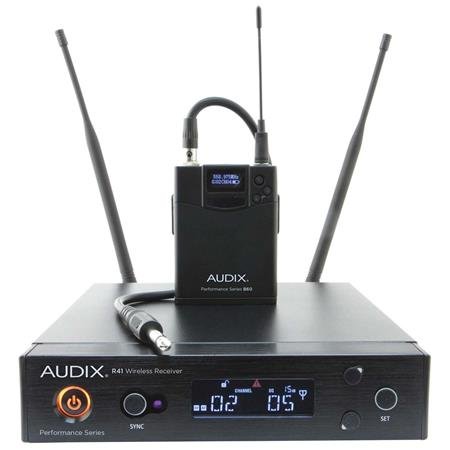

Audix AP41 BP Wireless Microphone System R41 Diversity Receiver

Spesifikasi Audix AP41 BP Wireless Microphone System R41 Diversity Receiver

Audix AP41 BP Wireless Microphone System R41 Diversity Receiver

A professional diversity wireless system featuring the B60 bodypack transmitter.

This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass. Optional accessories include a single space rack mount kit with BNC cables for front mounting antennas, rackmount kit for mounting two systems in one rack space, active directional antennas, and antenna distribution system for up to four systems (4 channels).

AVAILABLE FREQUENCY BANDS
A = 522 MHz – 554 MHz
B = 554 MHz – 586 MHz

FEATURES
R41 Diversity Receiver

• 32 MHz Wide spectrum receiver
• 106 Pre-coordinated frequencies for quick, easy, and reliable set up
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• B60 Bodypack Transmitter

64 MHz Wide spectrum transmitter
Durable metal housing
14 Hour run time – AA batteries

Whats in The Box?

• 1x R41 32 MHz Diversity Receiver
• 1x B60 Bodypack Transmitter
• 2x Antennas
• 1x Audio Cable
• 2x AA Batteries
• 1x Carrying Case
• 1x Power Supply
• 1x User Guide
• 1x Rackmount Hardware
•

Specifications:

• General
• Frequency Range A: 522MHz–554MHz/B: 554MHz–586MHz
• Compatible Systems: Up to 16 systems
• Switchable Frequencies: 106 Pre-coordinated frequencies
• Frequency Response: 45Hz–18kHz
• Compander System: 2:1
• Pilot Tone: 32 kHz
• Receiving System: Single tuner, diversity
• Signal-to-Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
• Total Harmonic Distortion: ≤0.7% (33 kHz deviation at 1 kHz)
• Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
• Audio Output: (AF=0)
• Balanced: -12dBv @ 25kHz deviation, 600 ohm load 1/4": -18dBv @ 25kHz deviation, 10 kohm load
• Output Connectors:1/4", XLR
• Audio Level Adjust: Balanced: -12 to +9 dBu, line: -24 to +4 dBu (adjustable in 3 dB-steps)
• Range: 300'
•

Other

• Power Supply: 100–240V/50–60 Hz, 12VDC, 1A
• Width: 8.07"
• Depth: 8.11"
• Height: 1.73"
• Net Weight: 1.92 lbs
