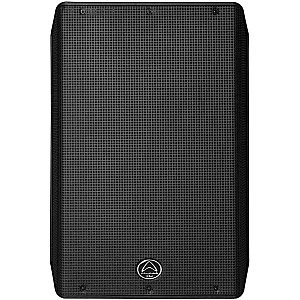

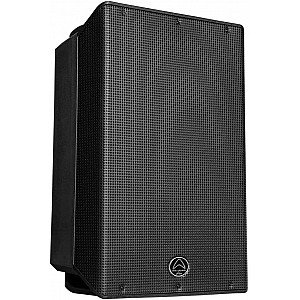

Wharfedale Typhon AX15 770Watt 15 inch Active Speaker with Bluetooth

Spesifikasi Wharfedale Typhon AX15 770Watt 15 inch Active Speaker with Bluetooth

Wharfedale Typhon AX15 770Watt 15 inch Active Speaker with Bluetooth

WHARFEDALE PRO TYPHONAX15BT DETAILS
Every aspect of the Wharfedale Typhon-AX15-BT is designed to make it useful in a variety of applications. The integrated mixer caters to a wide range of sound sources, with XLR and jack connectors at both line and mic level. A link output also makes it easy to create stereo pairs with another speaker.

Delivering all the power you'd expect from a speaker named after an ancient mythical giant, the Wharfedale Typhon-AX15-BT packs a punch and then some. A state-of-the-art aptX Bluetooth module is included for simple music streaming and connection to another speaker. For floor monitor use a wedge adapter is included. Most active speakers include a monitor angle in the cabinet, which can negatively affect its resonance. Why compromise? The included wedge means you can get the perfect monitor angle without losing out on perfect cabinet resonances.

Features:

• Bluetooth streaming for music or stereo linking to another speaker
• Four DSP presets let you adapt to a variety of rooms and situations in seconds
• XLR and jack inputs at line or mic level, along with a link output for easy pairs
• Wedge included to get a great monitor angle without compromising cabinet construction
• 770 watts continuous power output from the efficient class-D amplifier
• A huge variety of rigging points integrated for install or flown applications
• Specially designed drivers give the best possible pairing with the amplifiers


Specs:

Model Name: Typhon-AX15-BY
System type: Active 15" 2-way
Frequency Response: (+/-3dB) 45 Hz-20 KHz
Frequency Range: (-10 dB) 40 Hz-20 KHz
Maximum SPL @1m: 130dB
Sensitivity @ 1W / 1m: 99dB
Low Frequency Transducer

Size (mm / inches): 381mm / 15"
Voice Coil Size (mm / inches): 75mm / 3.0"
Rated Impedance: 4O

High Frequency Transducer

HF Driver Type: Compression Driver
Coil Size (mm / inches): 44mm/1.75"
Exit Size (mm / inches): 25mm/1"
Diaphragm Material: Titanium
Rated Impedance 8O
Nominal Coverage (H x V) Hybrid Symmetry Horn 100° x 80°
Amplifier design 2 x Class D
Power rating1540 W Peak (1300 W LF +240 W HF), 770 W Continuous (650 W LF + 120 W HF)
DSP Controls FLAT/MONITOR/BASS/PUNCH

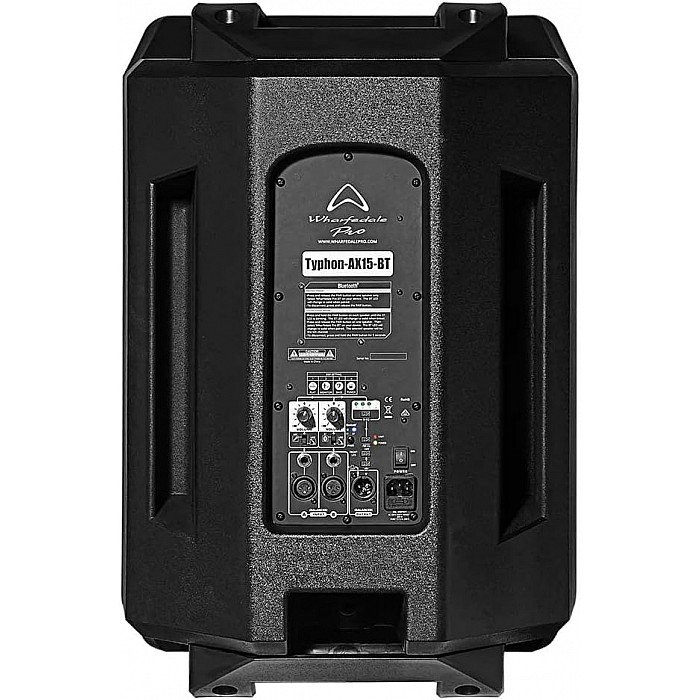

Input A- Balanced/Bluetooth (aptX with link Stereo)
Input sensitivity 775mV (0dBu)
Input connectors 2 x XLR, 2 x 6.3mm jack (Line/MIC)
Input impedance 20KO
Line output Balanced XLR
Loop gain 0dB
AC Power 220~240VAC/100~120VAC 50/60Hz

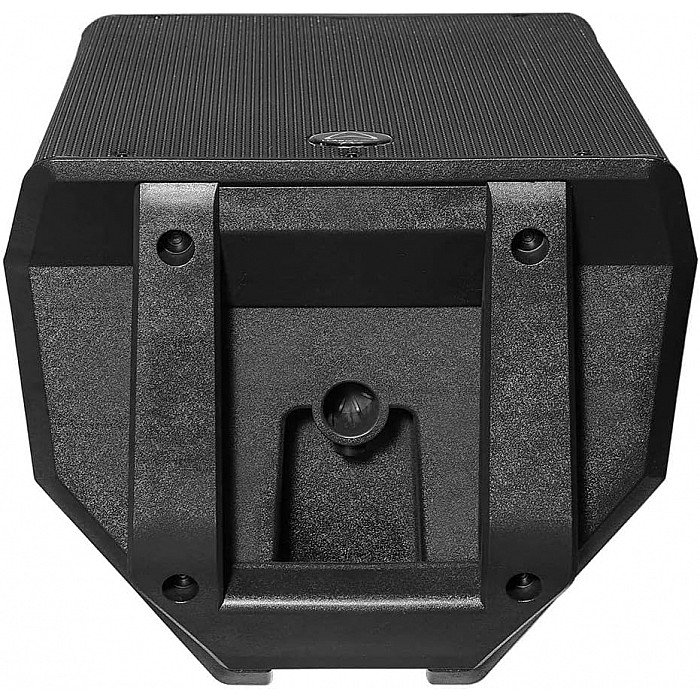

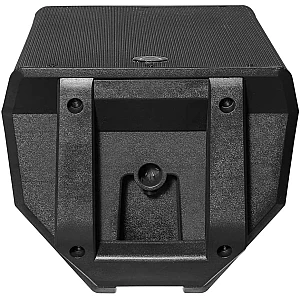

Rigging 9 x M8 threaded inserts
35mm pole socket with lock screw
5 x carry handles
Optional WPB-2 wall-mount bracket
Enclosure Injection moulded polypropylene

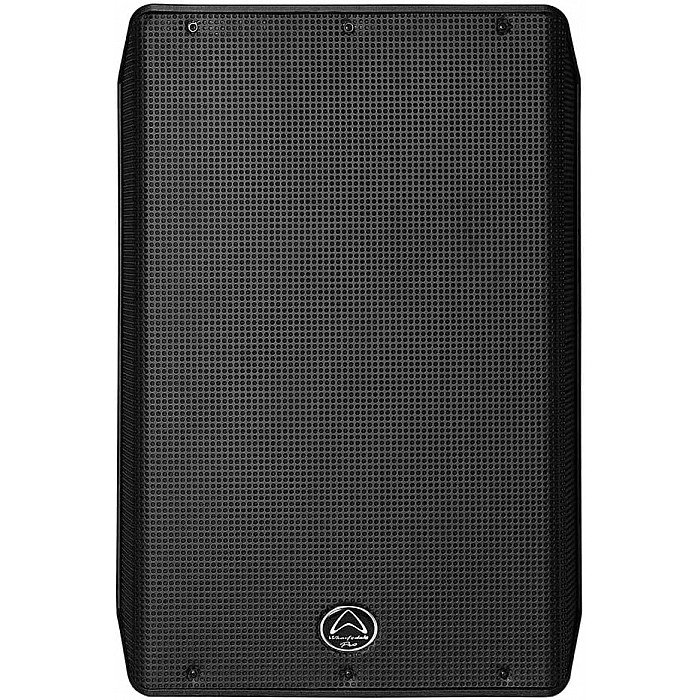

Grille material & finish Full front - steel
Country of Origin: China

Dimensions - Unpacked (mm / inches):

Height 697.7 mm / 27.5"
Width front 480 mm / 18.9"
Width rear 186.2 mm / 7.3"
Depth 400 mm / 15.7"
Net Weight (kg / lbs) 23.5 kg / 51.7 lbs
