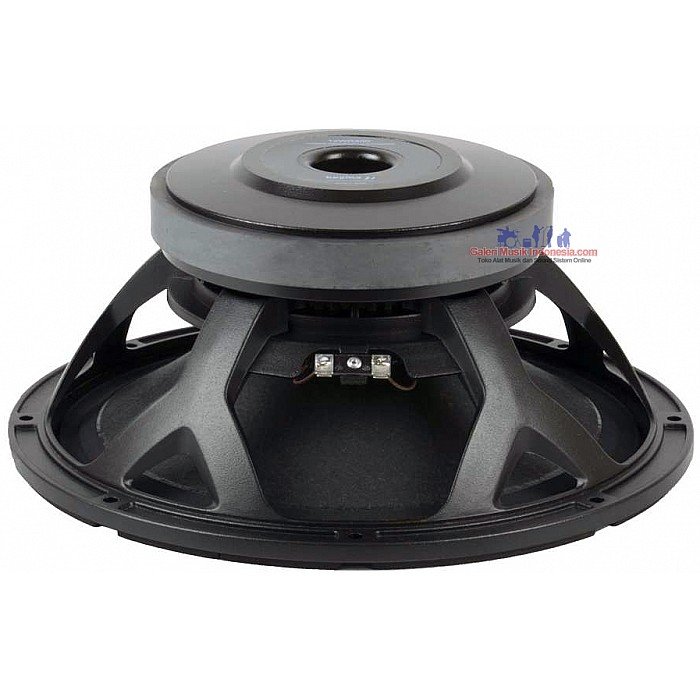

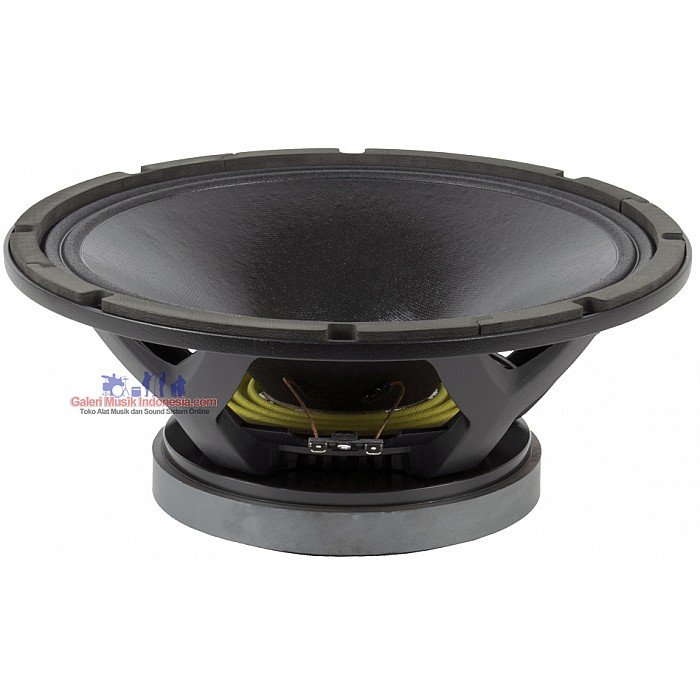

Beyma 12 WR 400 12 Inch MidBass / Bass Speaker
Kode Produk: 12 WR 400
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.2.400.000,00
Spesifikasi Beyma 12 WR 400 12 Inch MidBass / Bass Speaker
Beyma 12 WR 400 12 Inch MidBass / Bass Speaker
- NEW THE BEYMA 12WR400 12" MID-BASS / BASS SPEAKER HANDLES 400 WATTS AES & 800 WATTS PROGRAM POWER HANDLING
- CLEAN LOUDS MIDS & DEEP RICH THICK BASS WITH A 6.3MM XMAX
- MMS TECHNOLOGY FOR HIGH CONTROL, LINEARITY AND LOW HARMONIC DISTORTION
- 30MM PEAK TO PEAK DISPLACEMENT & WATERPROOF CONE ON FRONT & BACK
- WORKS GREAT AS A BASS GUITAR SPEAKER FOR PLAYERS THAT WANT A GOOD COMBINATION OF LOUD CLEAN MIDS AND TIGHT DEEP BASS
- ALSO WORKS WELL IN 2 OR 3-WAY SPEAKER SYSTEM TO COVER THE MIDS & BASS
- AVAILABLE IN 4 AND 8 OHMS
|
Specifications |
|
|
Nominal Basket Diameter |
12" / 300mm |
|
Impedance |
4 & 8 ohms |
|
AES Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Frequency Response |
45Hz - 5.0kHz |
|
Sensitivity (1W/1m) |
97dB |
|
Voice Coil Diameter |
3" / 77mm |
| Voice Coil Length | 16 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
|
Mounting Information |
|
| Overall Diameter | 12.28" / 312mm |
| Bolt Circle Diameter | 11.59" / 294.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 10.94" / 278mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
| Overall Depth | 5.12" / 130mm |
| Net Weight | 12.12 lb. / 5.5 kg. |
| Shipping Weight | 13.23 lb. / 6.0 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 42 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 5.6 |
| Electrical Factor(Qes) | .3 |
| Total Q (Qts) | .28 |
| Comp. Equivalent Vol. (Vas) | 3.22 ft3 / 91.1 Liters |
| Voice Coil Overhang (Xmax) | 6.3mm |
| Effective Surface Area (Sd) | .053 m2 |
| Diaphragm Mass (Mms) | 62 Grams |
| Reference Efficiency | 2.2% |
| BL Factor | 18N/A |
|
Low Frequency Response & Distortion Graph |
|
 |
|
| Impedance Graph | |
 |
|
| Mounting Dimensions | |
 |
|
