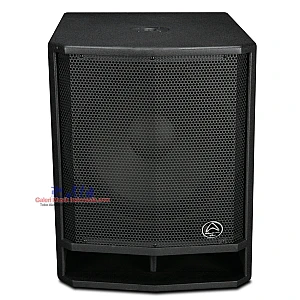

Wharfedale Pro DVP AX18B Powered Sub

Spesifikasi Wharfedale Pro DVP AX18B Powered Sub

Wharfedale Pro DVP AX18B Powered Sub

With an internal Class D amplifier using fan-less convection cooling, the DVP-AX18B subwoofer delivers power and functionality from a road ready MDF cabinet.

An internal adjustable Low Pass Filter makes connection to other loudspeakers simple and 0° / 180° polarity switching means that phasing issues are no longer a problem.

Add in balanced High Pass and Thru outputs and DVP-AX18B is a powerful and versatile addition to your system.

FEATURES

18" Active subwoofer
MDF construction
Class D amplification
600w RMS
1200w Peak
Adjustable low pass filter
132dB Max SPL @1m
Custom quad layer LF driver
2.5" voice coil
Hi Pass Outputs

SPECIFICATIONS

Model Name DVP-AX18B
System Type Active 18" Subwoofer
Frequency Response (+/-3dB) 35-150Hz
Frequency Range (-10dB) 30-150Hz
Max SPL @1m 132dB
Sensitivity @1w / 1m 99dB
LF transducer
Size 470mm / 18"
LF Coil size Quad Layer 2.5"
Amplification
LF Power Amplifier -Class D, RMS/Peak Watts 600w / 1200w
HF Power Amplifier -Class D, RMS/Peak Watts N/A
DSP N/A
Amplifier Protection. Power On, Thermal, low voltage Yes
Driver Protection, DC, Short, Clip limiter, clip indicator Yes
Limiter indicator Yes
Power indicator Green LED (Red LED front)
Inputs
Input Sensitivity : Balanced 775mv
Max input level 6v
Input connectors XLR & 1/4" (Line/MIC)
Input impedance Balanced:20k
LPF Control 80Hz - 120Hz
Polarity control 0° / 180°
