Spesifikasi LD Systems LDMIX102AG3 Passive 2 Way Loudspeaker

LD Systems LDMIX102AG3 Passive 2 Way Loudspeaker

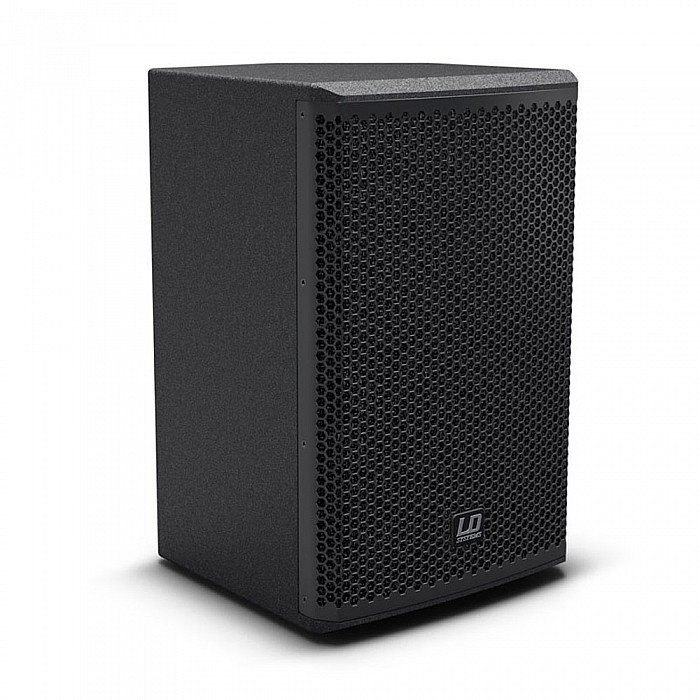

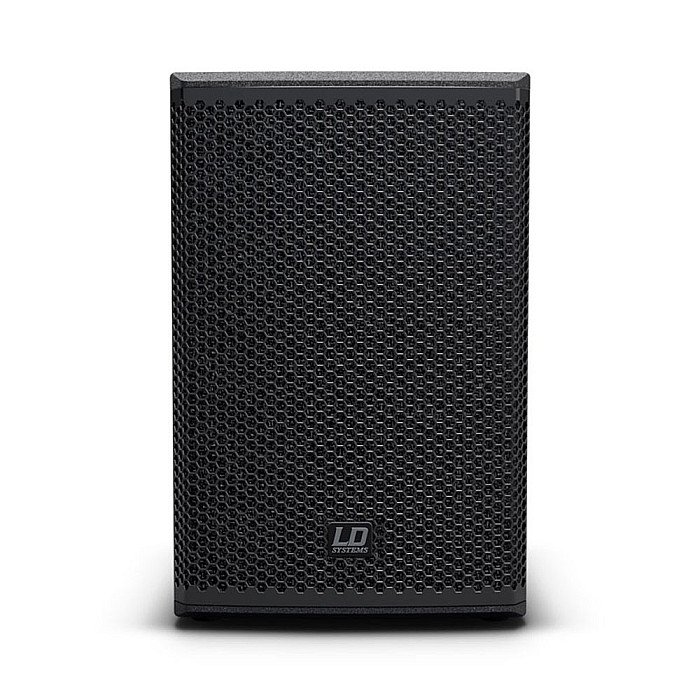

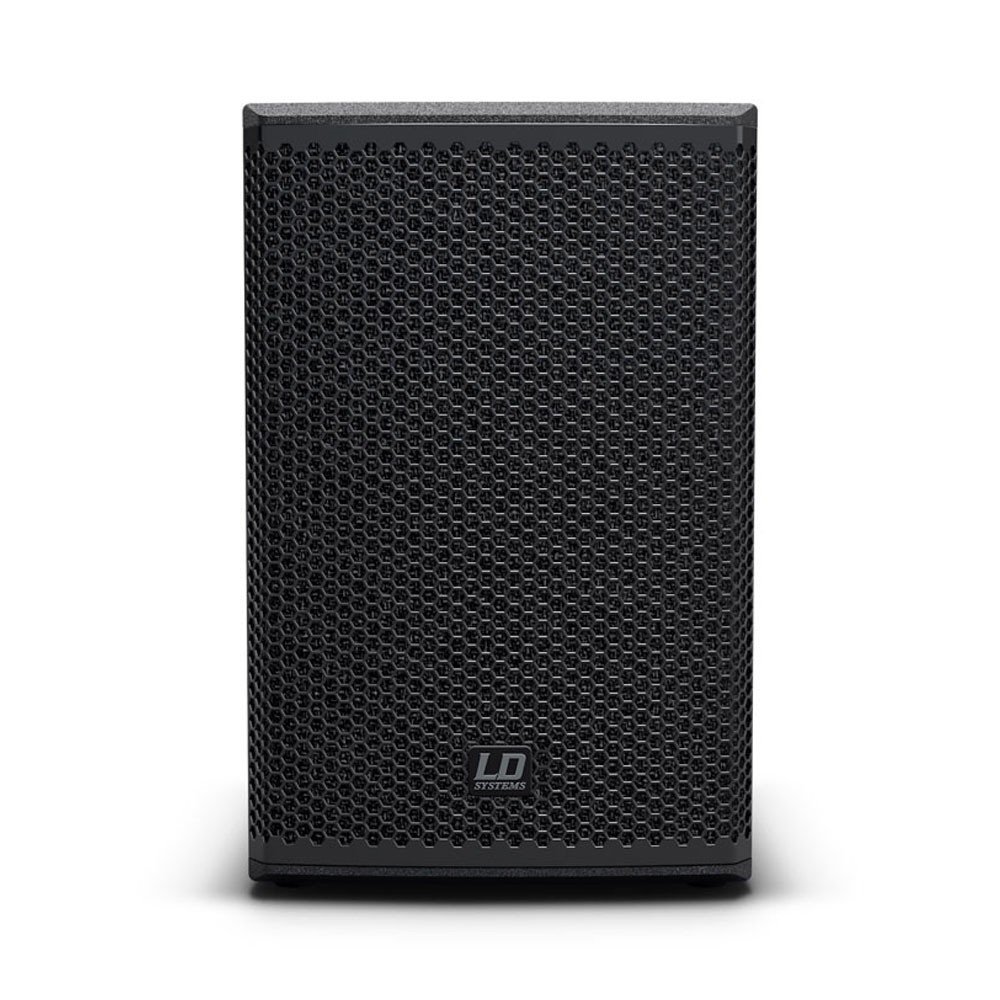

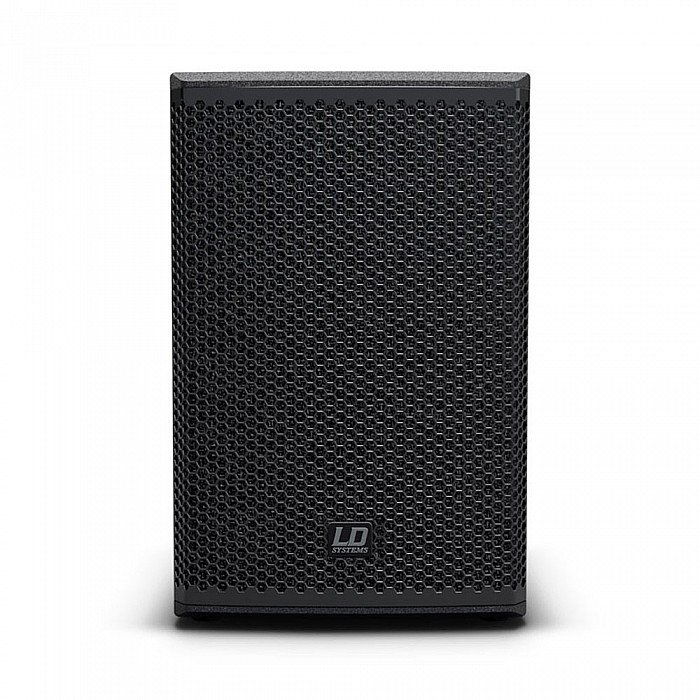

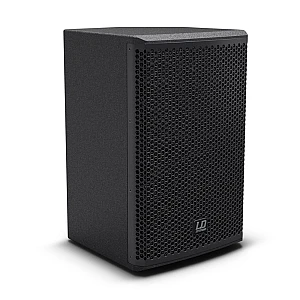

This passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail. The compact bass reflex enclosure is constructed with tough birch plywood sporting a speakON-compatible input, 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. In a main-and-followe setup with the active unit , the MIX 10 G3 provides amazing performance and versatility in a lightweight, easily portable package.

​

The ideal choice for small-scale PA and personal monitoring applications, the passive LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail. Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Features

• 2 x 200 watts RMS class D amplification
• 10” custom woofer and 1” Celestion HF driver
• Integrated 7-channel mixer
• DSP with 16 FX Presets
• Bluetooth® audio streaming
• Standalone mono or stereo applications with LD MIX 10 G3
• Subwoofer and monitor outputs
• Rigid plywood enclosure
• Dual-Tilt pole mount for 0° or 5° orientation
•

Specifications
General

• Product type PA loudspeaker
• Type passive
• Low/mid Woofer dimensions 10 "
• Woofer dimensions (mm) 254 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• Woofer voice coil 2 "
• Woofer voice coil (mm) 50.8 mm
• Horn CD Horn
• HF driver dimensions 1 "
• HF driver dimention (mm) 25.4 mm
• HF driver magnet Ferrite
• HF driver brand Celestion
• HF driver voice coil 1 "
• HF driver voice coil 25.4 mm
• Dispersion (H x V) 80 x 70 °
• Load rating (RMS) 200 W
• Peak power 400 W
• Frequency response 65 - 20.000
• SPL (1W/1m) 95 dB
• Max. SPL 121 dB
• Impedance 4 Ohm(s)
• Protection circuits HF Driver
• Loudspeaker inputs 1

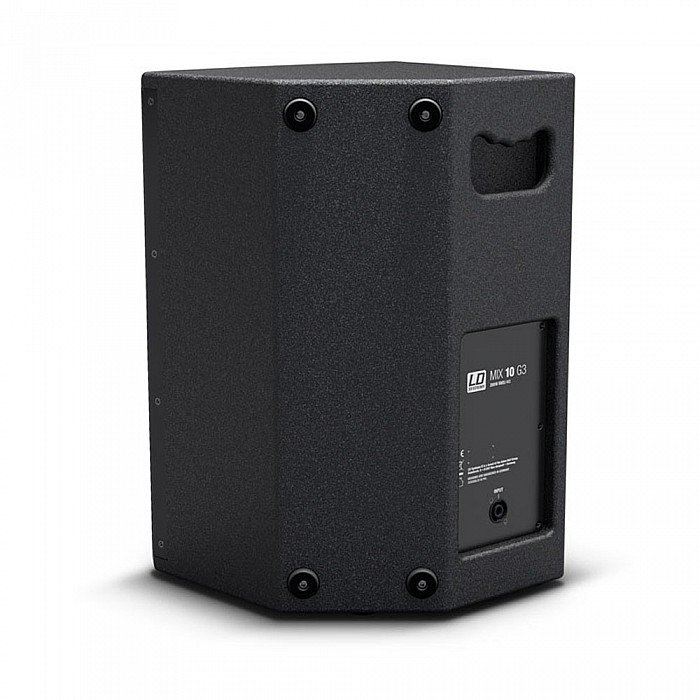

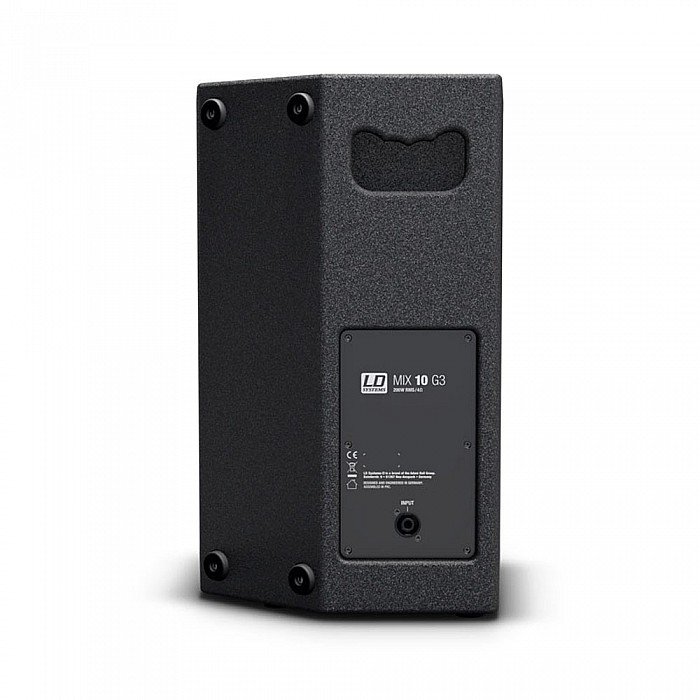

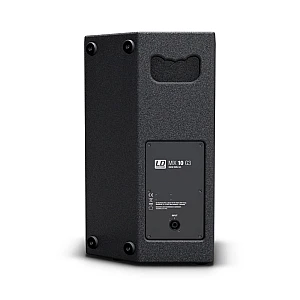

• Speaker input connections Speakon compatible
• Cabinet material 16 mm Plywood
• Cabinet surface PA painting
• Cabinet construction Bass Reflex

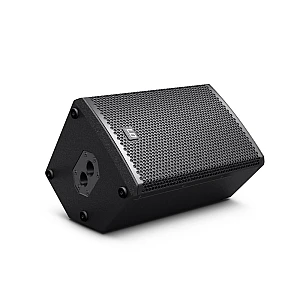

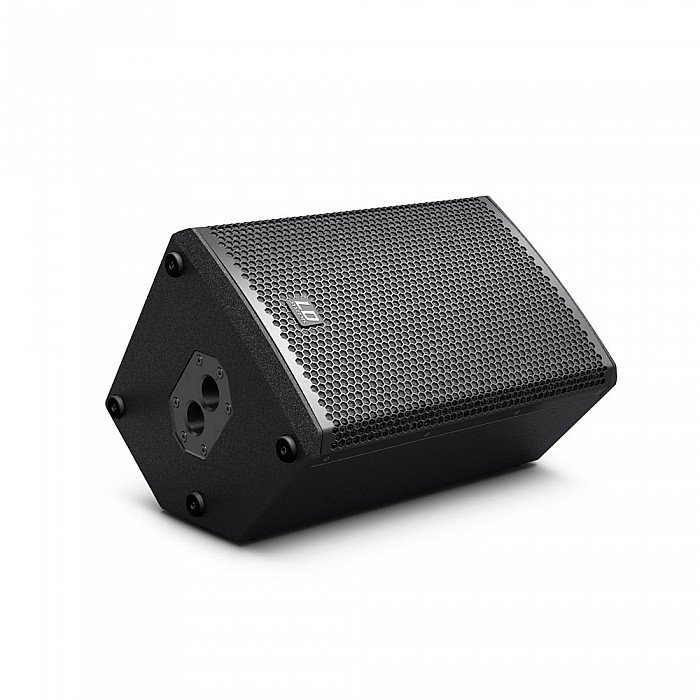

• Monitor angle 50 °
• Width 315 mm
• Height 489 mm
• Depth 307 mm
• Features dual-tilt flange (0°/5°), Ergonomic handle
• Weight 10,8 kg
