Spesifikasi Turbosound Madrid TMS118B - 18" Front Loaded Subwoofer

Turbosound Madrid TMS118B - 18" Front Loaded Subwoofer

The 3200-Watt TMS118B is a front-loaded 18" subwoofer system designed for a wide range of music and live sound reinforcement applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the TMS118B provides optimal FOH performance, as well as exceptional drum and side fill monitoring duties.

A bass reflex port design enclosure, with a high powered carbon fiber loaded 18" low frequency driver that utilizes a specialized voice coil wound on both the inside and outside of the coil former for higher magnetic density, better heat dissipation, high power handling capacity, and improved efficiency. The TMS118B subwoofer provides fast and accurate transient response for virtually distortion-free operation even in the most demanding performances.

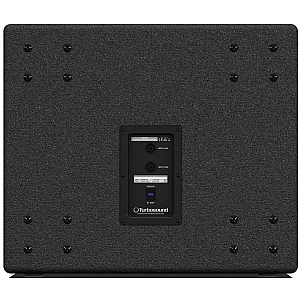

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾") birch plywood and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam, an integral 20 mm threaded pole mount for satellite speaker applications, and durable carry handles that are strategically placed for easy transport. The rear panel connector plate carries Neutrik speakON* NL4 connectors, with switchable input and link connections to accommodate standalone subwoofer applications, or subwoofer and satellite speaker connectivity via 4 core speaker cabling.

Speaker configuration

• Active/passive: Active
• Type: Subwoofer
• LF driver: 18"
• MF driver: Not applicable
• HF driver: Not applicable

Power capacity

• 8 Ohms program/peak: 800W/3200W
• 4 Ohms program/peak:

Audio

• Frequency response: 38Hz - 200Hz +3dB
• Coverage pattern: Not applicable
• Max SPL: 132 dB peak

Inputs

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Enclosure

• Cabinet material: 18 mm birch ply
• Width: 23.5"
• Height: 20.2"
• Depth: 29.5"
• Weight: 87.6 lb.
