Spesifikasi Turbosound Madrid TMS152 15" Full Range Loudspeaker

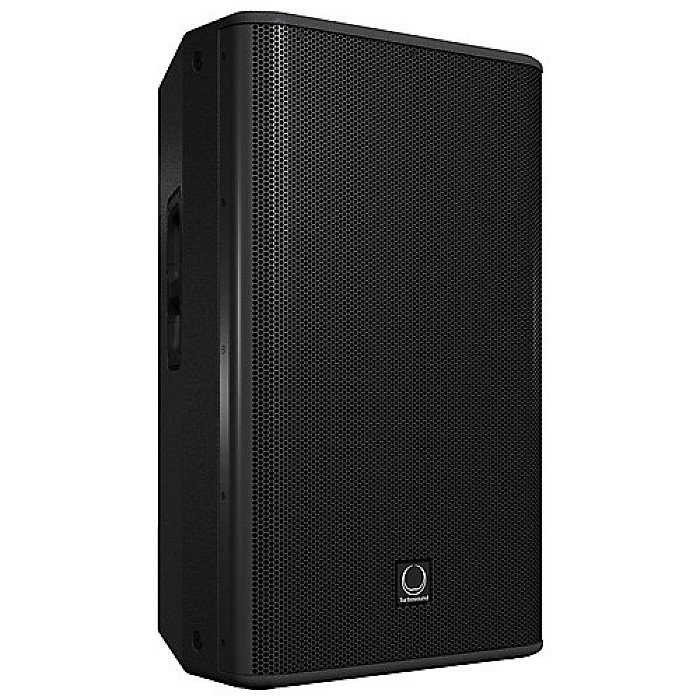

Turbosound Madrid TMS152 15" Full Range Loudspeaker

The 2-way full-range TMS152 is a switchable passive/bi-amp 15" 3200W loudspeaker system designed for a wide range of portable speech and music sound reinforcement applications. The TMS152 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side and drum fill applications, as well as offering considerable flexibility to adapt to varying venue requirements.

The TMS152 loudspeaker features a carbon fiber-loaded 15" low frequency driver with an inside/outside wound low mass voice coil for improved transient response and a titanium dome 1.4" neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

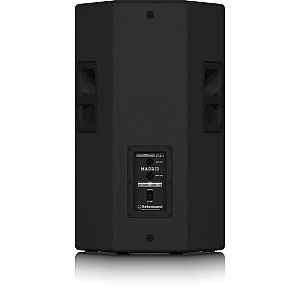

Finished in a highly durable semi-matte black paint, the cabinet is constructed from 15 mm (5⁄8") birch plywood and includes a rugged powder-coated perforated steel mesh grille backed with reticulated foam. The TMS152 includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/ speaker stands to optimize audience coverage and durable handles for easy transport. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

2 way full range loudspeaker for portable PA and installation applications
800 Watts continuous, 3,200 Watts peak power
Ideal for FOH, side and drum fill applications
Carbon fibre loaded 15" low frequency driver with inside/outside wound coil
Titanium dome 1.4" neodymium motor compression driver
Switchable passive/bi-amp operation for flexibility of use
Low distortion waveguide provides 75° H x 50° V dispersion
15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Dual angle pole mount for accurate audience coverage
Durable handles for easy lifting and carrying
Multiple internal rigging points for installation applications
Neutrik speakON* NL4 connectors for reliable long life operation
3-Year Warranty Program*
Designed and engineered in England

Speaker configuration

• Active/passive: Passive
• Type: Full-range
• LF driver: 15"
• MF driver: Not applicable
• HF driver: 1.4" Titanium dome

Power capacity

• 8 Ohms program/peak: 800W Cont/3200W Peak
• 4 Ohms program/peak:

Audio

• Frequency response: 55Hz - 20kHz
• Coverage pattern: Not applicable
• Max SPL: 132 dB

Inputs

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Enclosure

• Cabinet material: 15 mm birch ply
• Width: 17"
• Height: 28.2"
• Depth: 16"
• Weight: 61 lb.
