Spesifikasi Behringer PK115A Active 800 Watt 15" PA Speaker System
Behringer PK115A Active 800 Watt 15" PA Speaker System
PK115A
The PK115A is a super compact, exceptional 2-way, 800-Watt powered PA sound-reinforcement loudspeaker with built-in media player and Bluetooth* that is ideal for live sound, portable PA, Karaoke, monitor wedge and House of Worship applications.
This amazingly self-contained PA solution that merges state-of-the-art, 800-Watt Class-AB power amp technology with an integrated 3-channel mixer and 2 standalone microphone channels, built-in Bluetooth, a high-performance MP3 player with USB stick/SD/MMC card and built-in wheels for effortless transport.
Bluetooth Ready
We know your music lives on your phone, computer or tablet, so we've made it easy to access and play through the PK115A. With a simple swipe of your finger, you can instantly stream all your favorite music from any Bluetooth-equipped device, such as your computer, smart phone or tablet. Streaming music via Bluetooth Technology opens a tremendous amount of available content, such as a virtually limitless array of online radio-channels, multimedia providers and much more. Imagine that you have the whole PA at your fingertips; control the party from the dance floor, or the background music comfortably from your chair. Simple, easy and amazing.

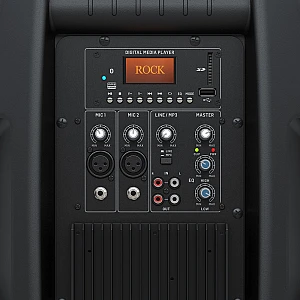

Built-in Mixer
The amazing PK115A features a built-in 3-channel mixers with the same ultra-low noise, high-headroom mic preamps that have made our mixers legendary. Also included is 2-band equalizer, plus Bluetooth for streaming audio directly from your device, and 2 standalone Mic inputs and a Line input accept virtually any level signal you’re likely to run across. Variable Input gain controls (with Clip LED) will have you dialing in the perfect level every time. The simple and intuitive user interface consists of a dedicated Level control per channel, a Master volume and separate controls for Treble and Bass.
Specification
Amplifier
Max output power
800 W*
Type
Class-AB
Loudspeaker System Data
Woofer
15" (386 mm) LF driver
Tweeter
1" (25.5 mm) HF compression driver
Frequency response
20 Hz to 20 kHz (-10 dB)
Sound pressure level (SPL)
Max. 95 dB
Audio Connections
MP3 Playback
USB / SD / TF
File system
FAT 16, FAT 32
Format
MP3 / WMA / WAV / FLAC / APE
Bit rates
32 – 800 kbps
Sample rates
44.1 kHz
Input
1 x XLR / 1/4" TRS combo jack
Input impedance
22 kΩ balanced
Line in
1 x 1/8" (3.5 mm) TRS, stereo
Input impedance
8.3 kΩ
Aux in
2 x RCA
Input impedance
8.3 kΩ
Aux out
2 x RCA
Output impedance
100 kΩ, unbalanced
SD card slot
Card memory
Up to 32 GB supported
Bluetooth**
Frequency range
2402 MHz ~ 2480 MHz
Channel number
79
Version
Bluetooth spec 4.2 compliant
Compatibility
Supports A2DP 1.2 profile
Max. communication range
15 m (without interference)
Max output power
10 dBm
Equalizer
High
±12 dB @ 10 kHz, shelving
Low
±12 dB @ 100 Hz, shelving
Power Supply, Voltage (Fuses)
USA / Canada
120 V~, 60 Hz (F 5 A L 250 V)
UK / Australia / Europe
220-240 V~, 50/60 Hz (F 2.5 A L 250 V)
Korea / China
220-240 V~, 50 Hz (F 2.5 A L 250 V)
Japan
100 V~, 50/60 Hz (F 5 A L 250 V)
Power consumption
220 W
Mains connection
Standard IEC receptacle
Dimension / Weight
Dimensions (H x W x D)
400 x 485 x 740 mm (11.6 x 13.97 x 12.5")
Weight
17.7 kg (39 lbs)
