Wharfedale

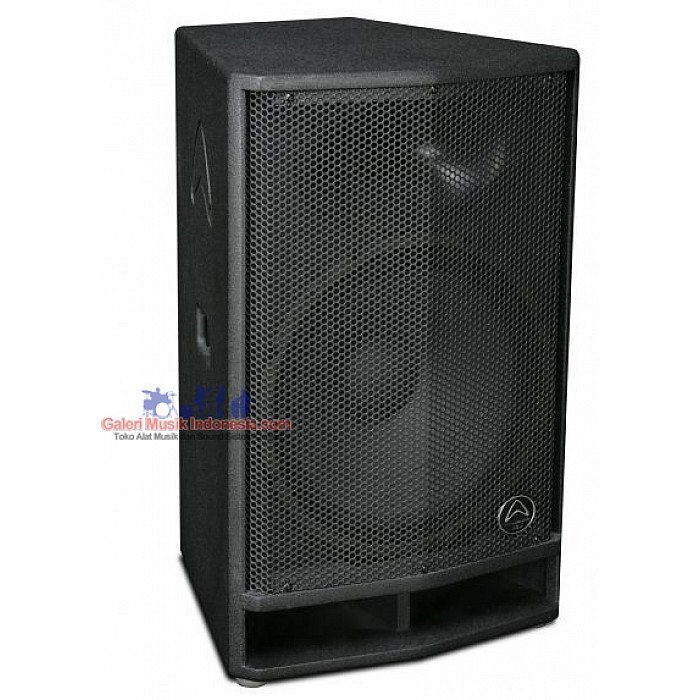

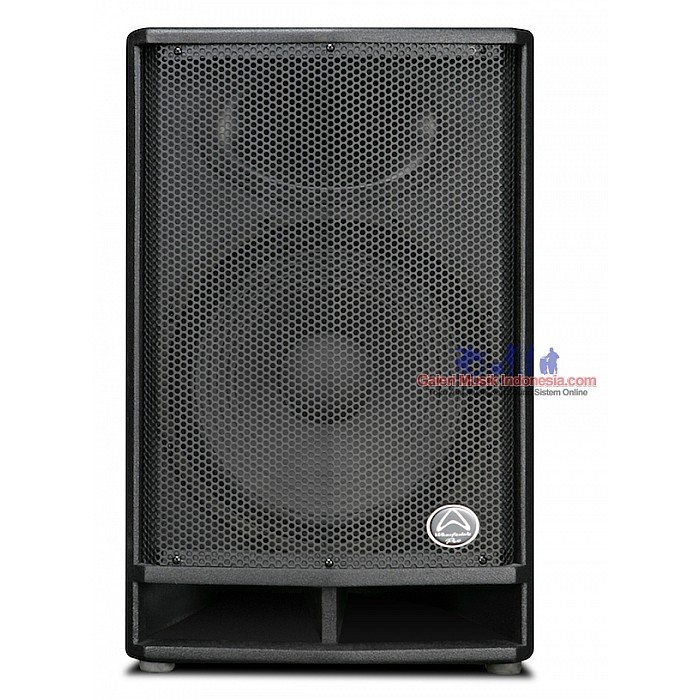

Wharfedale Pro DVP AX15 Powered Speaker
Rp.7.700.000,00
Tersedia
Spesifikasi Wharfedale Pro DVP AX15 Powered Speaker
Wharfedale Pro DVP AX15 Powered Speaker
DVP-AX is a comprehensive lineup of versatile and road-ready active loudspeakers. Class D amplification housed in ultra hard wearing cabinets make DVP-AX a perfect choice for hardworking DJ’s and musicians on the road.
DVP-AX15 features advanced DSP processing with 6 presets tailored to overcome many real-life sonic challenges. DVP-AX15 also features a practical 2-channel mic/line mixer to make life alot easier on-stage.
Key Features
|
|

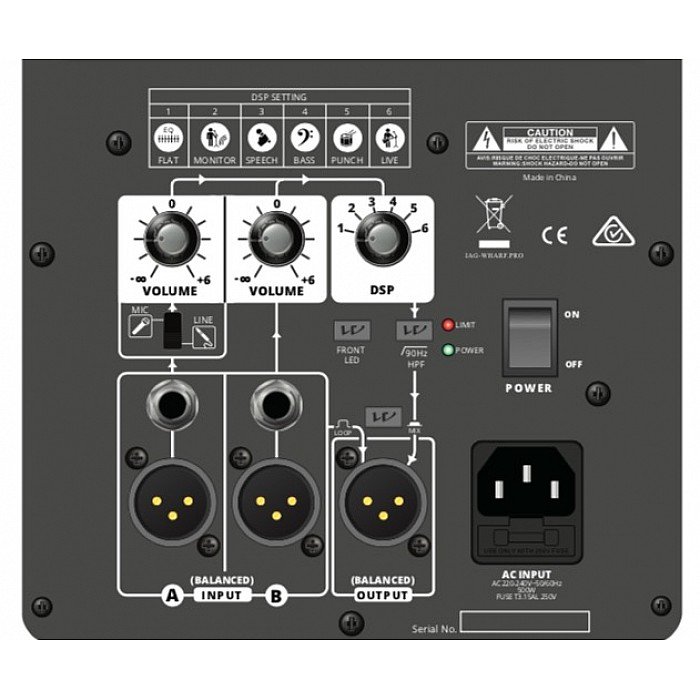

Around the back
DVP-AX12 features advanced DSP signal processing with 6 presets.
These presets allow for the sound of the DVP to be tuned to the acoustic environment.
The 6 presets
FLAT | MONITOR | SPEECH | BASS | PUNCH | LIVE
cover most acoustic situations and environments.
The rear panel also contains the 2-channel mic/line mixer. Inputs are available on XLR or 1/4" jack connections with mic/line switching on Channel 1.
In addition, the rear panel also contains the balanced XLR link output. This makes it easy to daisy-chain to another DVP-AX model or alternative powered speaker.
Class D amplification
DVP-AX15 is bi-amplified using 2 Class D amps.
These 'light in weight' amplifiers have been tuned to deliver perfectly matched power for the IRIS X HF Compression driver and the dual layer LF driver.
All DVP-AX models also use convection cooling. This means that there are no fans to clean out and no background mechanical noise.
Double Roll Surround
DVP-AX15 loudspeakers use the latest in Wharfedale Pro driver technology: For the LF driver, engineers have incorporated a curvilinear, double-roll surround for smooth mid-high transitions and stability for low through to mid range frequencies. Combined with 2.5” voice coils for improved thermal dissipation, you can expect consistent delivery at the highest of volumes throughout a performance.
The 44mm IRIS X Diaphragm HF compression driver used on the AX15 is equally robust in design – using a solid aluminum rear plate, the HF driver is strengthened for durability and heat is dissipated efficiently during prolonged time periods. Wharfedale Pro engineers have also selected a 90° x 60° elliptical waveguide optimised for wide coverage in multiple venues while touring.
Acoustically matched cabinets
The cabinet of the DVP-AX15 has been developed to work in perfect harmony with the advanced drive units within. Special attention has been paid to the acoustic properties of the port and port mouth to ensure a huge bass output with detail and minimised distortion.
DVP-AX15 is coated in the latest generation chip-resistant, Rhino Rock paint.
SPECIFICATIONS
| Model name | DVP-AX15 |
| System type | Active 15" 2-way |
| Frequency response (+/-3dB) | 50Hz-18kHz |
| Frequency range (-10dB) | 45Hz-20kHz |
| Max SPL @ 1m | 130dB |
| Sensitivity @ 1w / 1m | 98dB |
| LF Transducer | |
| Size | 381mm / 15" |
| LF voice coil size | Dual layer 2.5" |
| HF Transducer | |
| Type | Compression driver |
| HF coil size | 44mm / 1.75" |
| HF Exit size | 25mm / 1" |
| HF Diaphragm material | Titanium |
| Nominal coverage | 90° x 60° |
| Amplification | |
| LF Power Amplifier -Class D, RMS/Peak Watts | 350w / 700w |
| HF Power Amplifier -Class D, RMS/Peak Watts | 50w / 100w |
| DSP | Yes |
| DSP controls | 1:FLAT 2:MONITOR 3:SPEECH 4:BASS 5:PUNCH 6:LIVE |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection, DC, Short, Clip limiter, clip indicator | Yes |
| Limiter indicator | Red LED |
| Power indicator | Green LED (Red LED front) |
| Inputs | |
| Input sensitivity : Balanced | 775mv |
| Max input level | 4v |
| Input connectors | 2*XLR & 2*1/4" (Line/MIC) |
| Input impedance | Balanced : 20k |
| AC Power | SMPS |
| 220-240V 50/60Hz | |
| 100-120V 50/60Hz | |
| Pole socket | Dual-angle (0° or -10°) 35mm socket |
| Handles | 2 (one on each side) |
| Enclosure material | MDF / Black paint |
| Grille material | Steel |
| Dimensions unpacked | |
| Height | 689mm / 27.1" |
| Width | 443.5mm / 17.5" |
| Width (rear) | 243.5mm / 9.6" |
| Depth | 429.0mm / 16.9" |
| Dimensions packed | |
| Height | 750mm / 29.5" |
| Width | 520mm / 20.5" |
| Width (rear) | 290mm / 11.4" |
| Depth | 485mm / 19.1" |
| Net Weight | 23.8kg / 52.4lbs |
| Gross Weight | 27.3kg / 60.1lbs |
