Spesifikasi Speaker Karaoke Ashley BS998
Speaker Karaoke Ashley BS998

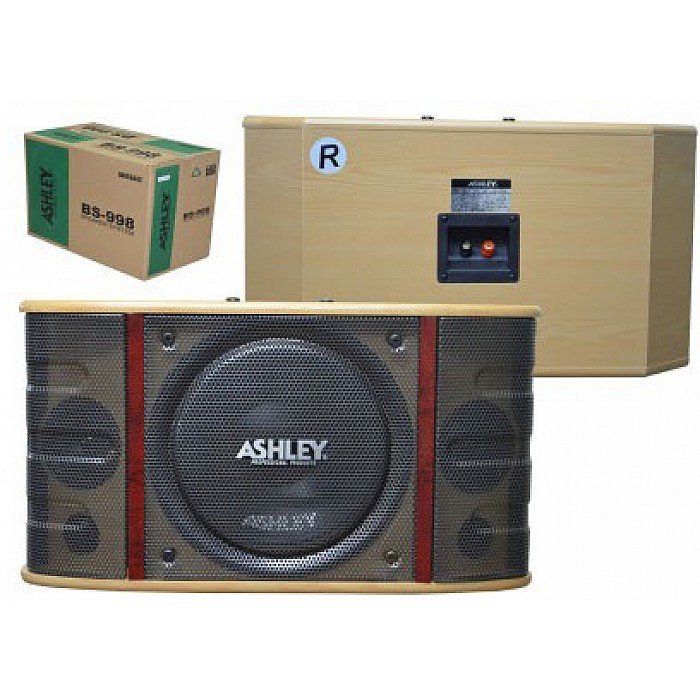

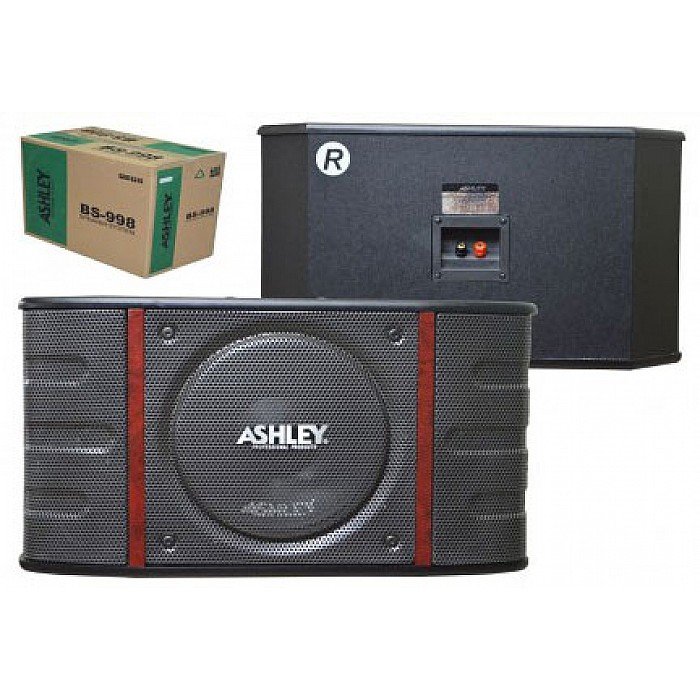

Speaker KARAOKE ASHLEY BS-998
The ASHLEY BS-998 utilizes a 10″ woofer and two 1″ silk dome tweeters. The 10″ woofer features a non-pressed long fiber pulp cone and pure nitrile butadiene rubber surround providing necessary stiffness and high reliability and capacity to withstand the tremendous accelerating force from the motor. An anodized aluminium voice coil former provides extra cooling for greater long-term power handling. The two 1″ silk dome tweeters provide warm, clear and crisp high frequency and wide, even coverage of listening area.
- High-performance 10″ woofer features a sophisticated cone design with rubber surround for long-life, high reliability, and unsurpassed low-frequency reproduction
|
- Dual 1″ silk dome neodymium tweeter
|
- Enclosure constructed of MDF (Medium Density Fiberboard) with vinyl laminated finish
|
- High-strength ABS (Acrylonitrile Butadiene Styrene) horn providing even and smooth frequency response
|
- Precision engineered crossover for optimal power response and performance in the critical mid-range region
|
- Built-in protection circuit engineered specifically to protect the tweeter without interrupting performance
|
- “Flat” and “Boost” switch offers two options in high frequency response
|
System Type |
: |
10″, 2-way, bass-reflex |
|
Frequency Range (-10 dB) |
: |
65 Hz - 20 KHz |
|
Frequency Response (±3 dB) |
: |
76 Hz - 18 KHz |
|
Sensitivity (1w/1m) |
: |
88 dB |
|
Nominal Impedance |
: |
8 Ohms |
|
Maximum SPL |
: |
113 dB (119 dB peak) |
|
Power Rating
(Continuous/Program/Peak) |
: |
250 W / 500 W / 1000 W |
|
Coverage Pattern |
: |
120° x 100° (H x V) |
|
Dimensions (H x W x D) |
: |
290 mm x 525 mm x 320 mm
11.4 in x 20.7 in x 12.6 in |
|
Net Weight |
: |
11.5 Kg/PC (25.6 lbs/PC) |
|
|
HF Driver |
: |
2 x 1″ silk dome tweeter |
|
Input Connectors |
: |
Binding post |
|
Enclosure Construction |
: |
Vinyl covered 12 mm MDF |
|
