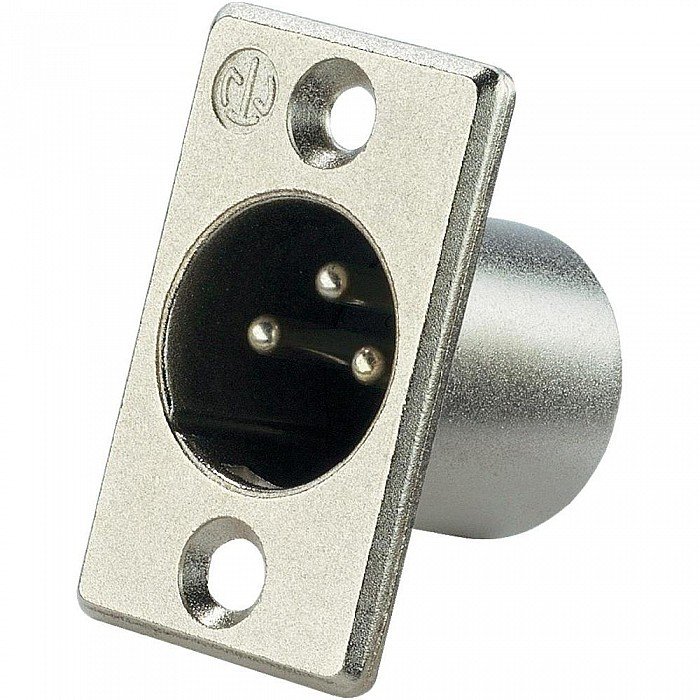

NEUTRIK NC3MP CHASSIS MALE
Rp.125.000,00
Tersedia
Spesifikasi NEUTRIK NC3MP CHASSIS MALE
NEUTRIK NC3MP CHASSIS MALE
3 pole male receptacle, solder contacts, Nickel housing, silver contacts
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Features & Benefits
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
Technical Information
Title
NC3MP
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
front
Chassis shape
P
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
NEUTRIK NC3MP CHASSIS MALE
Kode Produk: NC3MP
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.125.000,00
Spesifikasi NEUTRIK NC3MP CHASSIS MALE
NEUTRIK NC3MP CHASSIS MALE
3 pole male receptacle, solder contacts, Nickel housing, silver contacts
Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Features & Benefits
- Smallest available hard wiring receptacles with large solder cups
- Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
Technical Information
Title
NC3MP
Connection Type
XLR
Gender
male
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
front
Chassis shape
P
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
