NEUTRIK NC3FX JACK XLR FEMALE
Kode Produk: NC3FX
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.75.000,00
Spesifikasi NEUTRIK NC3FX JACK XLR FEMALE

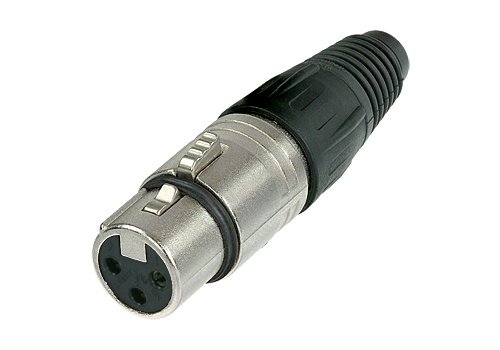

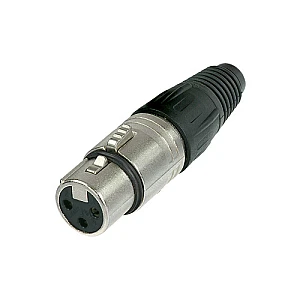

NEUTRIK NC3FX JACK XLR FEMALE
3 pole female cable connector with Nickel housing and silver contacts.
The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
Features & Benefits
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- UL recognized components
Technical Information
Title
NC3FX
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
St3K32 (latch) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
