Spesifikasi Shure SVX24/PG28 Vocal Mic Wireless System

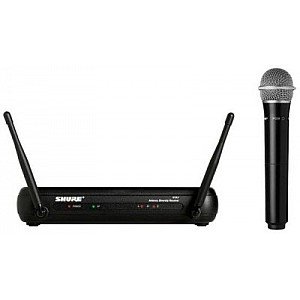

Shure SVX24/PG28 Vocal Mic Wireless System

Components

SVX4 Diversity Receiver

Single channel receiver for use with Shure SVX Wireless systems.

Features

    Up to 8 selectable channels
    Up to 4 compatible systems*
    Antenna Switching Diversity
    Adjustable Squelch Level
    Mic / Line Switch
    2 Audio Output:
        1/4" Connector
        XLR Connector
    Available with Handheld and Lavalier system packages

The SVX Wireless Handheld Transmitter comes with a PG28 or PG58 microphone option.

Features

    RF Level Switch between 1mW and 10mW
    2 “AA” batteries
    Up to 10 hours of battery life
    Bottom on/off switch design
    Anti-rolling ring on grille for PG28
    Power and battery status LED
    6 color rings for microphone identification

Tech Specs

    Transmitter Type: Handheld
    Dimensions: 254 mm X 51 mm diameter
    RF Output Power: 1
    Battery, endurance: 10 h
    Weight: 270 g

Further Technical Specs

    Audio Input Level: –20 dBV maximum
    Input Impedance: 22 kΩ
    RF Output (dependent on applicable country regulations):
    HI power mode: 10 mW maximum
    LO power mode: 1 mW maximum
    Weight: 270 g (10.2 oz.)(without batteries)
    Housing: Molded ABS
    Power Requirements: 2 “AA” size alkaline or rechargeable batteries
