Shure GLXD16+ Digital Wireless Guitar Pedal System

Spesifikasi Shure GLXD16+ Digital Wireless Guitar Pedal System

Shure GLXD16+ Digital Wireless Guitar Pedal System

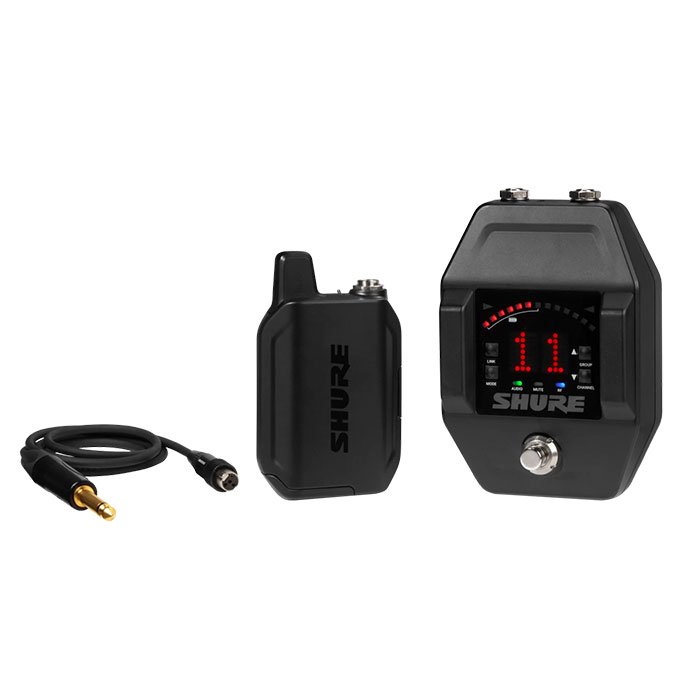

GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.

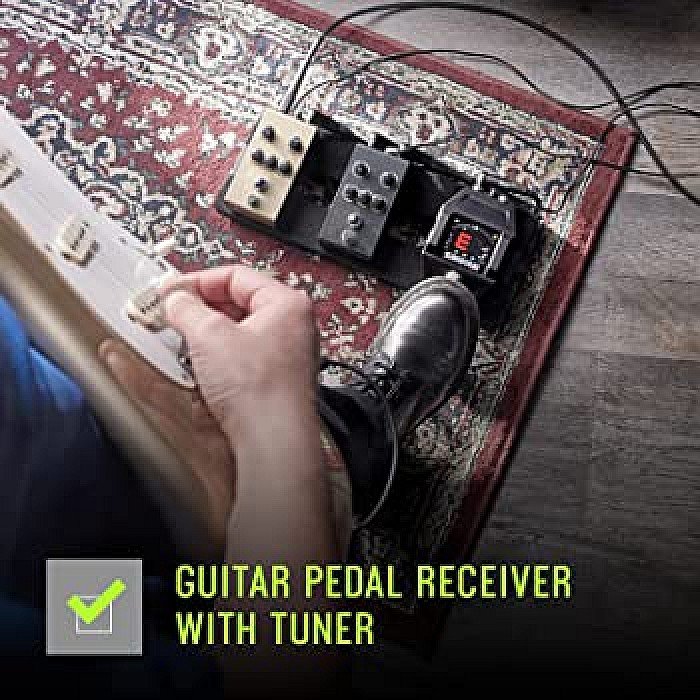

Ready-To-Go. Every time. Automatically. The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easilyswitch between two or more transmitters linked to a single receiver.

Whats in the box?

1. 1 PS24 Power Supply
2. 1 SB904 Lithium-Ion Rechargeable Battery
3. 1 WA305 Premium Instrument Cable
4. 1 SBC10-USBC Wall Charger
5.

Dependable Wireless Audio that Anyone Can Use
The Shure GLXD16+ is a digital wireless guitar system that offers reliable performance and outstanding sound quality in a package that's simple to use, even if you've never operated a wireless system before. Shure's next-generation technology handles the set up for you, automatically scanning both the 2.4 and 5.8 GHz frequency ranges to seek out the best possible digital transmission channel to ensure dependable performance for your application at a typical range of up to 100' indoors and 65' outside.

Bodypack Transmitter and WA305 Guitar Cable

This version of the GLXD16+ is configured with a bodypack transmitter and the WA305 guitar cable, a 3' instrument cable with a 4-pin mini connector (TA4F) on one end and a gold-plated Neutrik 1/4" TS connector on the other.
The rugged, metal chassis on the GLXD1+ transmitter offers an ergonomic design and a comfortable fit with a convenient on/off switch that can be operated by feel.
The system transmits audio with a flat, 20 Hz to 20 kHz frequency response and 120 dB of dynamic range, leaving the sound of your mic unaffected by the wireless components.
The transmitter's input gain can be wirelessly adjusted right from the receiver's front panel to optimize the audio signal.

Features

• GLX-D+ Dual-Band Digital Wireless systems operate in both the 2.4 and 5.8 GHz frequency ranges, automatically scanning both to select the one that offers the higher number of clean channels.
• The previous GLX-D only worked in the 2.4 GHz range, which offers 83.5 MHz of bandwidth. By expanding into the 5.8 GHz range, the GLX-D+ provides an additional 125 MHz worth of potential open frequencies for available channels, helping to minimize dropouts and enhance reliability.
• The system offers true digital diversity, which means two antennas and two independent receiver modules work together to reduce RF signal dropouts.
• In addition to the main transmission frequency, the GLX-D+ is constantly monitoring 2 extra "backup frequencies”, so if the system detects interference, it will switch to one of the backups automatically without the user even knowing.
• Besides the additional spectrum, there are other benefits to in operating in the 5.8 GHz range. In general, there are fewer devices operating in this range, making the spectrum cleaner. The 2.4 GHz range is home for Bluetooth devices and other devices, including Wi-Fi routers and repeaters, security cameras, baby monitors, garage door openers, and more. Operating in this range means competing with these devices for the same space.
• GLX-D+ receivers typically allow you to run up to 4 mics simultaneously in the same space. Under ideal conditions, up to 8 systems can be used.
• If you need more transmitters at once, consider a system with the GLXDR+ half-rack receiver, which offers removable antennas and can accommodate the GLXD+FM Frequency Manager (available separately). The frequency manager allows up to 11 transmitters to operate simultaneously (16 under highly optimal conditions) making it ideal for installations with multiple wireless systems.
•

• System
• Wireless Technology Digital 2.4 GHz/5.8 GHz
• Included Transmitters 1 x Bodypack
• Diversity True Digital Diversity
• RF Frequency Band Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz
• RF Bandwidth 208.5 MHz
• RF Channel Scanning Auto-Scan
• Max Operating Range 100' / 30.5 m (Line of Sight)
• Max Transmitters per Band 8
• Mobile App Compatible No

_{*As of February, 2023: Check with manufacturer for the most up-to-date compatibility}

• Latency 4.5 to 8 ms
• Dynamic Range 120 dBA
• Modulation Proprietary
•

Receiver

• Receiver Type Stompbox
• Mounting Options Pedalboard (with Included Hardware)
• Antenna 2 x External, Fixed (Top-Mount)
• Number of Audio Channels 1
• Audio I/O 1 x 1/4" TS Female Unbalanced Instrument Input
• 1 x 1/4" TRS Female Balanced Instrument Output
• Audio Output Level 1/4" Output:
• +8.5 dBV
• Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
• USB/Lightning Connectivity 1 x USB-C Female (Firmware Update)
• Impedance 1/4" Output:
• 100 Ohms (Balanced)
• 50 Ohms (Unbalanced)
• Approximate RF Sensitivity -88 dBm
• Spurious Rejection: >35 dB
• Power Requirements AC/DC Power Adapter
• AC/DC Power Adapter 9 to 15 VDC at 400 mA (Included)
• AC Input Power 100 to 240 VAC, 50 / 60 Hz
• Display & Indicators 1 x Backlit LED (Channel, Group)
• 1 x Multi-Segment LED (Transmitter Battery Status)
• Housing Aluminum
• Operating Temperature 32 to 122°F / 0 to 50°C
• Dimensions 3.7 x 1.9 x 5.4" / 95 x 48 x 138 mm
• Weight 19.8 oz / 560 g
•

Transmitter

• Transmitter Type Bodypack
• RF Output Power 10 mW (EIRP)
• Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
• Included Cable Connector 1/4" TS
• Pad None
• Muting Off/On Switch
• Audio Input Level -8.4 dBV / 7.5 V p-p
• Gain Range -20 to +40 dB (1 dB Steps)
• Sync Method Proprietary
• Antenna 1 x Internal, Fixed (Beltpack)
• Power Requirements Battery
• Battery Type 1 x Shure SB904 (Included, Replaceable)
• Internal Battery Capacity 2420 mAh
• Battery Charging Time .25 to 3 Hours
• Approx. Battery Life 12 Hours (Lithium Rechargeable)
• USB/Lightning I/O 1 x USB-C (Charging)
• Display & Indicators 1 x LED (Battery Status, Sync)
• Housing Metal
• Dimensions 2.6 x 4.5 x 1.1" / 67 x 115 x 28.5 mm
• Weight 5.4 oz / 153.1 g (without Batteries)
•

Packaging Info

• Package Weight 3.59 lb
• Box Dimensions (LxWxH) 12.1 x 9.5 x 3.3"
