Spesifikasi Shure SLXD24/SM58 Digital Wireless Handheld Microphone System w/ SM58

Shure SLXD24/SM58 Digital Wireless Handheld Microphone System w/ SM58

The Shure SLXD24/SM58 offers presenters and performers a wireless handheld microphone system that's dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with the SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

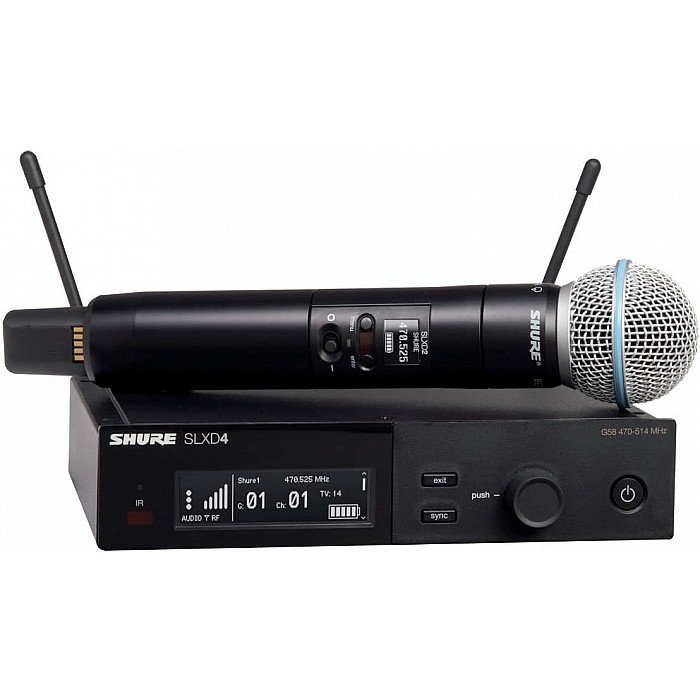

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.

• Handheld Transmitter with Legendary SM58 Dynamic Cardioid Capsule

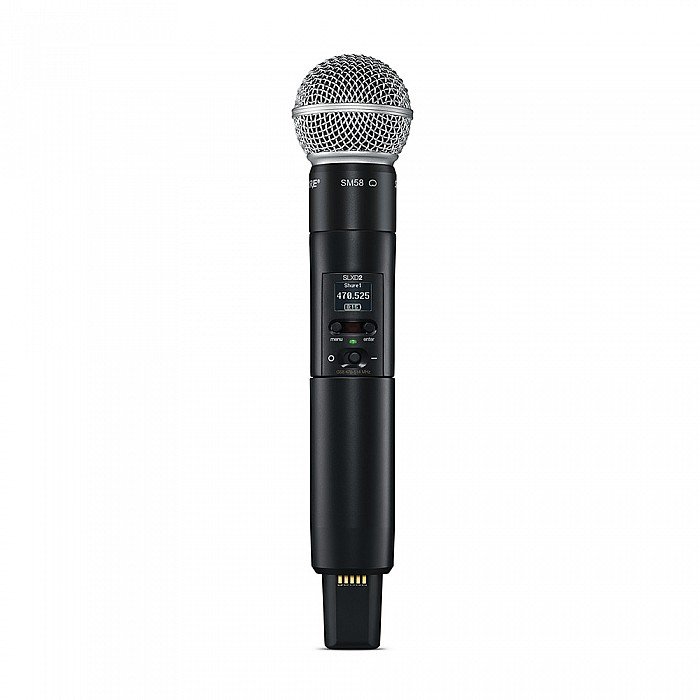

With durable aluminum housing, the SLXD2 handheld transmitter offers a lightweight design that's comfortable to hold and features an LCD to show essential information.

The SM58 dynamic microphone capsule features a cardioid polar pattern that minimizes background noise and feedback, while its brightened midrange and bass roll-off deliver that sought-after warm and clear vocal reproduction.

The transmitter's interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 58A, Beta 87A, and KSM8.

• Transparent Digital Sound, Dependable Performance, and More Mics

The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound for your events.

The system operates in the H55: 514 to 558 MHz UHF band with a 44 MHz tuning range and 1760 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.

Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.

With a low latency of 3.2 ms, the system is ideal for performances and conferences that require live sound reinforcement.

The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.

Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.

Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.

Features:

• Complete digital wireless system for live performance
• SLXD4 wireless receiver pairs easily with any transmitter
• SM58 transmitter delivers stage-ready sound
• Transparent 24-bit digital audio provides high-quality signal resolution
• Digital predictive switching diversity keeps your signal strong
• Low-profile design is comfortable to wear for extended periods
• Scan and IR sync provide easy pairing to a transmitter
• Tour tough construction stands up to punishment
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
•

1. Package Weight 7.48 lb
2. Box Dimensions (LxWxH) 17.8 x 13.8 x 4.5"
