Shure SLXD14/93 Digital Wireless Omni Lavalier Microphone System

Spesifikasi Shure SLXD14/93 Digital Wireless Omni Lavalier Microphone System

Shure SLXD14/93 Digital Wireless Omni Lavalier Microphone System

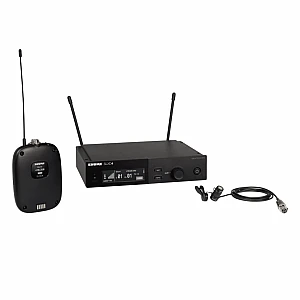

The Shure SLXD14/93 offers presenters, instructors, clergy, and performers a wireless lavalier microphone system that's dependable, easy to set up, and features crystal-clear digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration comes with a WL93 subminiature omnidirectional lavalier microphone optimized for speech intelligibility. The discreet bodypack transmitter has a selectable 1/10mW RF power output and a transmission range up to 330'. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

Lightweight Bodypack Transmitter with Lav Mic for Hands-Free Presentations

• The WL93 condenser lavalier microphone features an omnidirectional polar pattern, which picks up sound evenly from all directions, allowing for flexible mic positioning.
• The mic's subminiature size makes it easier to conceal.
• The lavalier mic plugs into the locking TA4M connector on the compact SLXD1 bodypack transmitter.
• The rugged, plastic transmitter has a belt clip that attaches to the talent's clothing and an LCD that shows essential information.
•

Transparent Digital Sound, Dependable Performance, and More Mics

• The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
• The system operates in the J52: 558 to 602 + 614 to 616 MHz UHF band with a 46 MHz tuning range and 1840 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.
• Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
• With a low latency of 3.2 ms, the system is ideal for applications that require live sound reinforcement.
• The SLX-D's spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
• Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.
• Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.
•

• 558 to 602 MHz
• 614 to 616 MHz
•
