Spesifikasi Shure PGADRUMKIT5 5-Piece Drum Microphone Kit
Shure PGADRUMKIT5 5-Piece Drum Microphone Kit
The PGADRUMKIT5 from Shure is a 5-piece professional-quality drum microphone kit designed to capture sound for close-mic kick drum, snare, and tom performance sets. It can be used in audio applications for live stage, theater, houses of worship, and more.

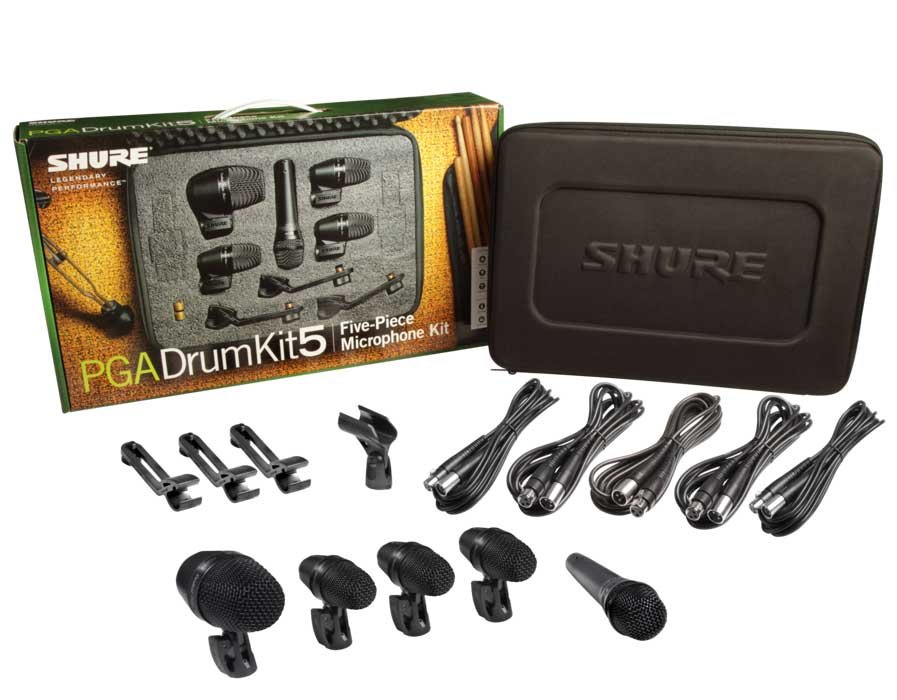

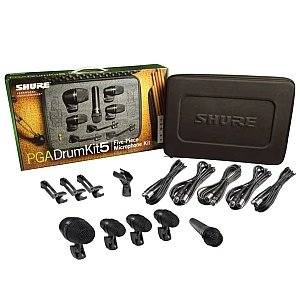

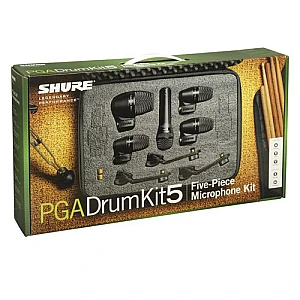

Included in the PGADRUMKIT5 are one PGA52 kick drum microphone, three PGA56 drum microphones for toms and snare, and one PGA57 instrument microphone. In addition, three drum mounts, one microphone clip, five XLR-XLR cables, and a carrying case are also included.
Specs
- Type Dynamic (moving coil)
- Frequency Response PGA52: 50 Hz to 15 kHz
- PGA56: 50 Hz to 15 kHz
- PGA57: 70 Hz to 15 kHz
- Polar Pattern Cardioid
- Output Impedance PGA52: 150 ohms
- PGA56: 200 ohms
- PGA57: 150 ohms
- Cable None
- Sensitivity PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
- Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
- Output Connector 3-pin XLR male
- Power Requirements PGA52: N/A
- PGA56: N/A
- PGA57: N/A
- Operating Temperature -20 to 165°F (-29 to 74°C)
- Operating Humidity 0 to 95%
- Dimensions Not specified by manufacturer
- Weight PGA52: 16.01 oz (454 g)
- PGA56: 10.12 oz (287 g)
- PGA57: 9.9 oz (280 g)
-
Packaging Info
Package Weight 10.6 lb
Box Dimensions (LxWxH) 22.7 x 13 x 4.2"
