Sennheiser XSW2 865 UHF Wireless System with Hand Mic

Spesifikasi Sennheiser XSW2 865 UHF Wireless System with Hand Mic

Sennheiser XSW2 865 UHF Wireless System with Hand Mic

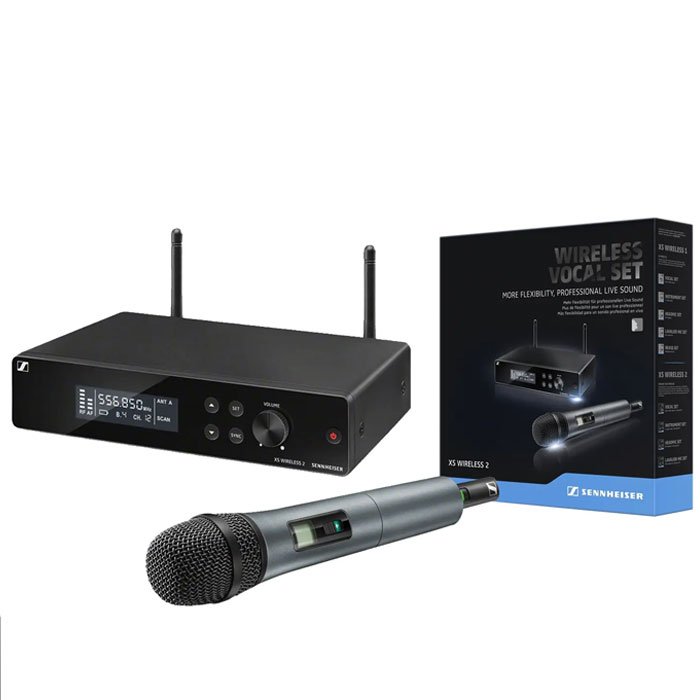

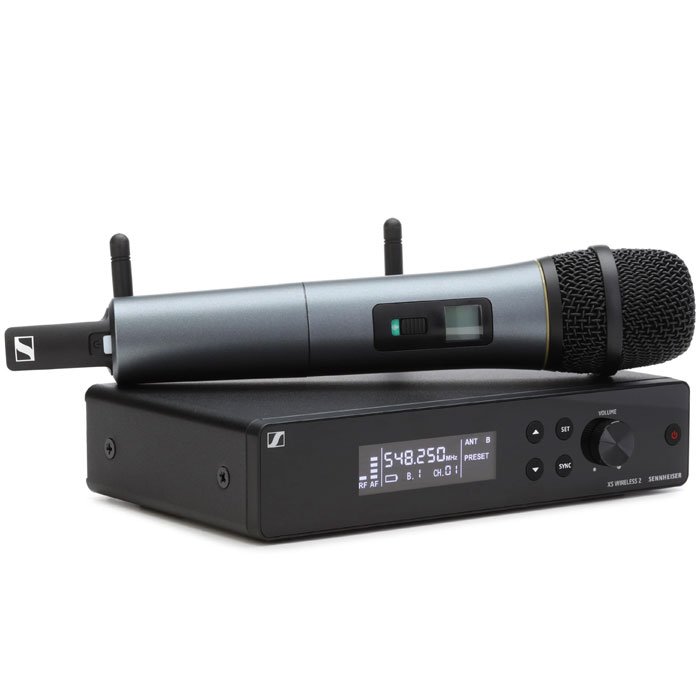

The wireless system with sennheiser XSW 2-865-A handheld microphone is ideal for a DJ, a mobile disco, or for a singer on stage. The handheld microphone is very lightweight and provides a quality solution for the user who needs a reliable UHF link. This UHF wireless hand microphone is equipped with a receiver and a hand transmitter equipped with an E865 capsule with super cardioid directivity.

You have 8 frequency banks, each with 12 channels, a bandwidth of 24 MHz and a search function for available frequencies. This UHF wireless system is equipped with external reception BNC antennas and a metal case, and connector level of an output in XLR and JACK 6.35 mm. This SENNHEISER XSW 2-865-A wireless handheld microphone is sold with a microphone clamp, carrying case and is a high-quality solution for singers and shows.

Features:

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronisation
• Remote channel for easy setup
• Fully tuneable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels
•

Specifications

XSW 2-865 System:

• Modulation: Wideband FM
• Frequency Range: A (548 - 572 MHz)
• Switching Bandwidth: up to 24 MHz
• Frequencies: adjustable in 25-kHz steps; 8 frequency banks, each with up to 12 factory-preset channels
• Signal-to-Noise Ratio: ≥ 103 dBA
• THD: ≤ 0.9%
• Temperature Range:
• Operation: 32° to +104° F | 0° to +40° C
• Storage: -4° to +158° F | -20° to +70° C
• Transmitter Sychronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
•

EM-XSW 2 Receiver:

• Receiver Principle: Double Superheterodyne
• Diversity Principle: True Diversity
• Sensitivity (@ Peak Deviation): < 3 µV at 52 dB(A)rms S/N
• AF Frequency Response: 50 to 16,000 Hz (-3 dB)
• Max. AF Output Voltage (@ Peak Deviation, 1 kHz AF): 1/4" (6.3 mm) jack socket (unbalanced): 6 dBu; XLR socket (balanced): +12 dBu
• Audio Adjustment Range: 40 dB, adjustable in 5-dB steps
• Power Supply: 12 V DC nom. / 300 mA
• Squelch: Adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
• Line/Mic Level: 20 dB, switchable
• Housing Material: rugged metal housing
• Dimensions (W x H x D): 7.87 x 1.65 x 5.0 in | 200 x 42 x 127 mm
• Weight: 24 oz | 680 g
•

SKM 865-XSW 2 Microphone:

• RF Output Power: 10 mW
• AF Frequency Response: 80 to 16,000 Hz
• Power Supply: (2) AA size batteries, 1.5 V
• Operating Time: approx. 10 hrs
• Microphone Type: Condenser
• Pick-Up Pattern: Super-cardioid
• Input Sensitivity (Caspsule): 1.8 mV/Pa
• Adjustment Range of Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
• Housing Material: Rugged ABS housing
• Dimensions (L x Diameter): 10.2 x 2 in | 260 x 50 mm
• Weight: 8.6 oz | 245 g
