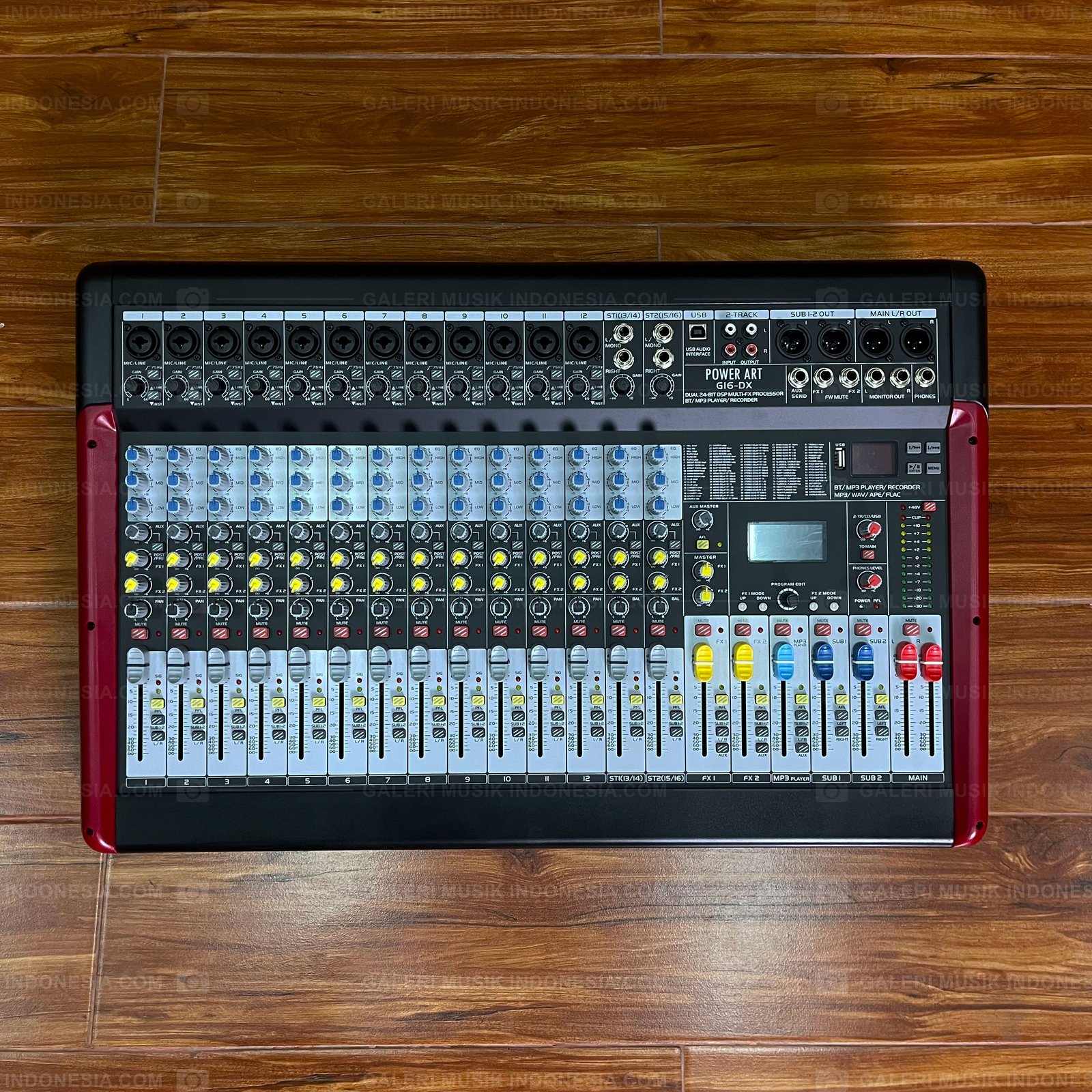

Power Art Mixer G 16DX 16 Channel Analog Mixer

Spesifikasi Power Art Mixer G 16DX 16 Channel Analog Mixer

Power Art Mixer G 16DX 16 Channel Analog Mixer

THIS IS AN ANALOGUE MIXING CONSOLE FOR PROFESSIONAL AUDIO APPLICATIONS. WHETHER OUT ON THE ROAD TOURING, IN SMALL MEETING ROOM, A BAR OR EARNING IT'S KEEP IN RENTAL STOCK, THE MIXER PROVIDES THE PERFECT SOLUTION TO PROVIDE SIMPLE AND CONVENIENT CONNECTIONS, AND QUICKLY FORM A SOUND AMPLIFYING SYSTEM. ENGINEERED TO THE SAME EXACTING STANDARDS  AS OUR TOP OF THE RANGE CONSOLE IT ENSURES THE HIGHEST RELIABILITY AND FINEST SONIC PERFORMANCE.

SPECIFICATIONS

• MIXER 16 CHANNEL (12 MONO MIC/LINE, 2 STEREO )
• MAXIMUM INPUT LEVEL      :   MIC/LINE +24dBu, OTHER LINE +20dBu
• MAXIMUM OUTPUT LEVEL  :  XLR +26dBu, TRS +20dBu
• MASTER LEVEL                    : 12 SEGMENT -30dB TO CLIP
• FREQUENCY RESPONSE    : 20Hz TO 30KHz 0,5dB
• DSP EFFECT PROCESSOR  : 24-BIT SIGMA-DELTA, 64/128-TIMES OVER SAMPLING, RATE 40KHz
• 2-TRACK RETURN                 :  RCA, UNBALANCED, 4K OHM, -2dBu
• 2-TRACK SEND                      :  RCA, UNBALANCED, <75 OHM, -2dBu
• LR MAIN MIX
• 3 AUX SENDS
• RECORDING
• 2 GROUP STEREO CHANNEL INPUTS
• PER CHANNEL PRE/POST FADER MASTERS
• ULTRA LOW NOISE MIX HEAD AMP DESIGN
• BUILT IN USB AUDIO INTERFACE, WHICH CAN DIRECTLY CONNECT TO PC/MAC TO RECORD OR REPLAY
• DUAL 99 MODE PARAMETERS-ADJUSTABLE DSP EFFECT PROCESSOR
• INTERNAL POWER SUPPLY
