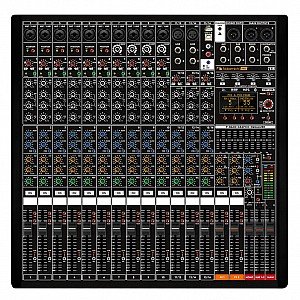

Nakamichi ZX 16 Professional 16 Channel Audio Mixer

Spesifikasi Nakamichi ZX 16 Professional 16 Channel Audio Mixer

Nakamichi ZX 16 Professional 16 Channel Audio Mixer

The Nakamichi Professional ZX16 Audio Mixer is a versatile and powerful tool designed for professional audio production environments. Boasting sixteen channels, it provides an example capacity for mixing multiple audio sources with precision and clarity. Designed with professional-grade components, the ZX16 delivers pristine sound quality and exceptional reliability, ensuring that your audio projects sound their best every time.

Packaging Contents:
1x Mixer ZX16
1x Power cable
1x User manual
1x Warranty card

Specification:
Microphone Input (MIC Preamplifier)
@00 Source impedance : -134dB/135.7dB A-Weighted
@500 Source impedance : -131dB/133.3dB A-Weighted
@1500 Source impedance : -129dB/130.5dB A-Weighted
Frequency response: <10Hz-150KHz (-1dB), <10Hz-200KHz (-3dB)
Gain range : +10to+60dB
Maximum input level: +12dBu@+10dB gain
Impedance: About 2.6KQbalanced
Signal-to-noise ratio : 110dB/112 dBA-Weighted (OdBuln@+22dBgain)
Distortion (total harmonic distortion + noise) : 0.005%/0.004%A-Weighted
Туpе: 6.3-mm-stereo channel, blanced
Impendance : About 20 KOblanced 10 Kunblanced
Gain range : +10 to-40
Maximum input level : +22dBu@0dB gain
Signal Attenuation (Crosstalk Attenuation)
Main output fader off: 90dB
Channel mute 89dB
Channel fader off 89dB

Digital Effector (DSP)
Converter: 32-bit digital-to-analog converter 64/128-times (sampling rate)
Scan speed: 40KHz
Frequency Response
<10Hz-90KHz: +0dB/-1dB
<10Hz-160KHz: +0dB/-3dB
Digital Effector (DSP)
Converter : 6.3-mm-Stereo channel
Scan speed: +19dBu/1502 (+25dBm)
