Spesifikasi P Audio X7-10A 10" 800W 2Way Active Loudspeaker

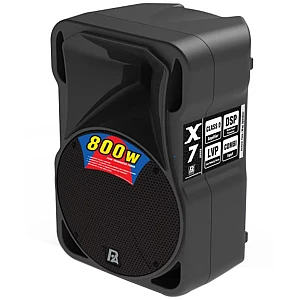

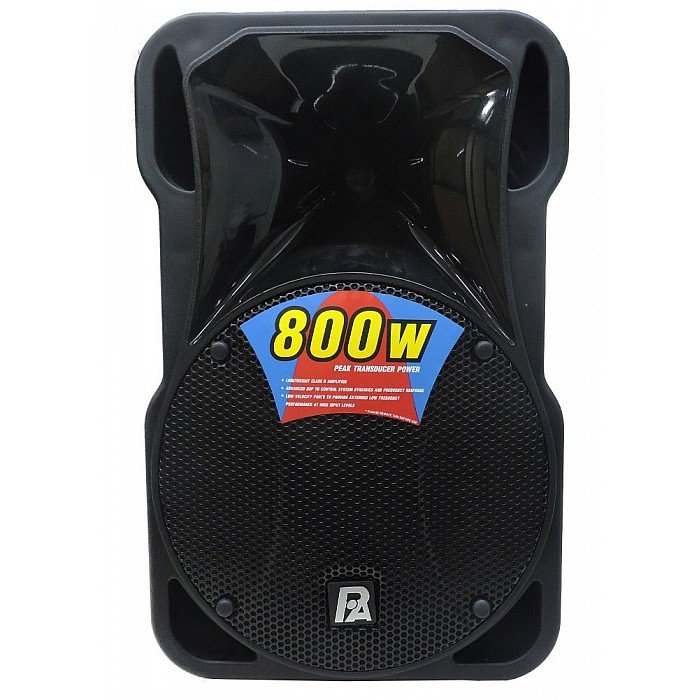

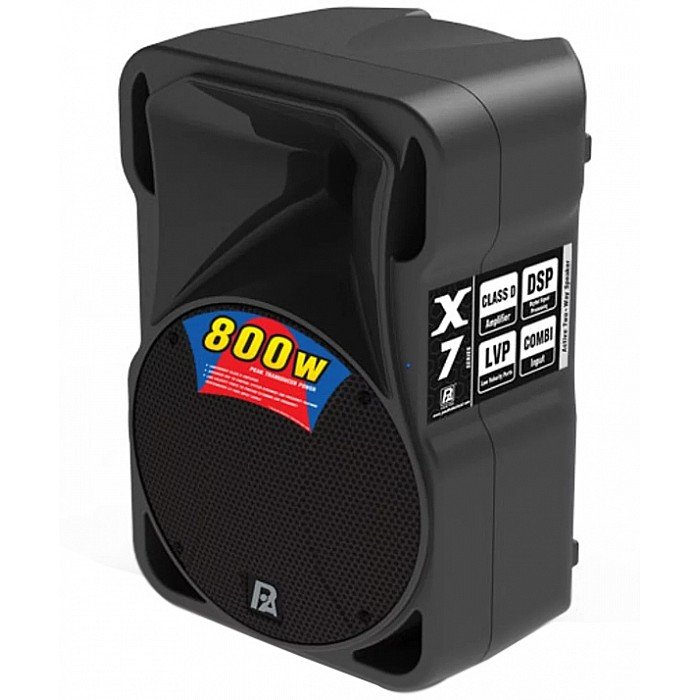

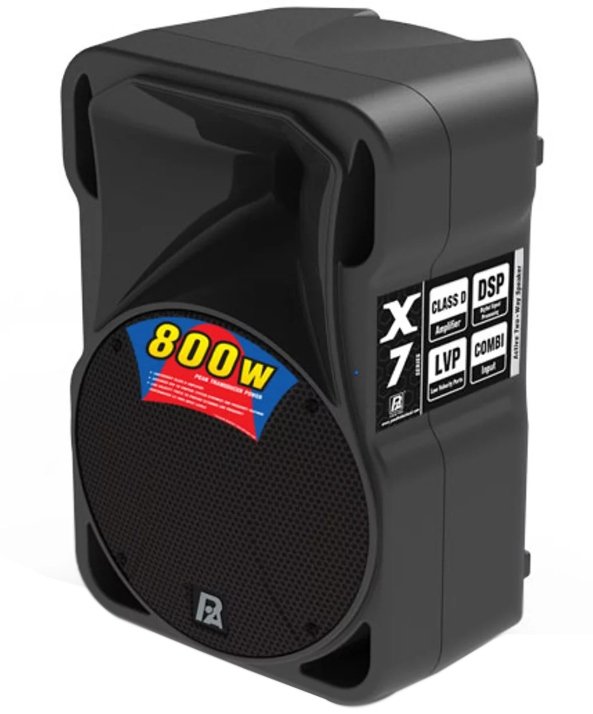

P Audio X7-10A 10" 800W 2Way Active Loudspeaker
The P Audio Cab X7-10A is a small format bi-amplified acoustic reinforcement system. The design features a 10-inch low-frequency woofer and a new high-performance, small-format neodymium compression driver coupled to a large-mouth acoustic horn that provides good pattern control and acoustic load for the driver.

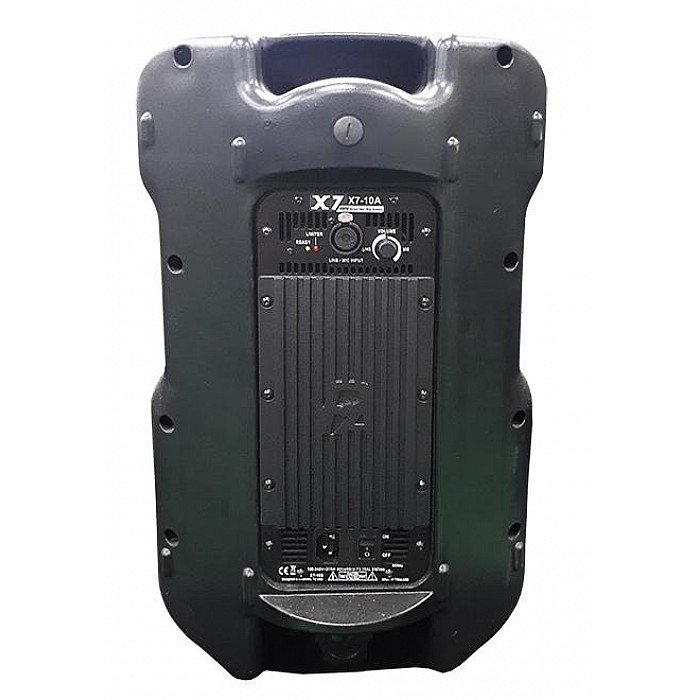

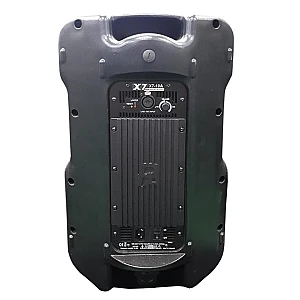

As a system, this combination offers high sensitivity and extended frequency response from a small format system. The X7-10A is a bi-amplified design, using 250 + 150w amplifiers for a total of 400 watts of peak output power. The preamplifier is a DSP-based design that features a combination of XLR / Jack inputs that is switchable between the microphone and the line level sensitivity.
The DSP also provides a high-order crossover, system equalization and system dynamics control to ensure high reliability and improved acoustic performance.
The X7-10A is an injection molded design, using the latest in plastics technology. A new type of polypropylene has been used to reduce the weight but maintaining the rigidity of the cabinet. The cabinet has a 35 mm female connector for mounting the speaker stand and 3 M8 rig points for rigging in a permanent installation. The system has been designed for a variety of indoor applications, including DJ operation in small events, salons and bars.
