Spesifikasi JBL PRX 835W 1500W 15 inch 3 way Powered Speaker
JBL PRX 835W 1500W 15 inch 3 way Powered Speaker
Audio professionals looking for a powered PA system with subtlety and nuance will be impressed by the JBL PRX835W, a 3-way active loudspeaker designed for main PA applications with extensive Wi-Fi control over the onboard DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker is optimized for full-range sound reinforcement applications. The PRX835W is designed to match the PRX815XLF or PRX818XLF subwoofers (separately sold), offering a high-performance, self-powered sub/satellite system.
The speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer, 6.5" midrange driver, and 1.5" compression driver, which combine to offer a frequency range of 42 Hz to 20 kHz at 138 dB maximum SPL output, plenty of output to cover audiences of up to 400.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder coated steel grille with acoustical transparent black cloth backing.
Features
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ, and up to 50ms of speaker delay to fine-tune your sound
- High-powered 1500W amplifier delivers ample power to fill your venue
- JBL Differential Drive transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4”, and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Durable wooden cabinets, tour-proven DuraFlex finish and dent-resistant 16-gauge grille
- Universal power supply for worldwide compatibility
- dbx Type IV limiting ensures clear, accurate sound at high volumes
- Brutal testing regimen—including JBL's 100-hour power test to ensure reliable performance
Specs
- Configuration Active 3-Way
- Enclosure Type Bass-Reflex Loudspeaker
- Total Power Capacity 1500 W
- Amplifier Power Rating 2 x 750 W
- Amplifier Class Class-D
Drivers

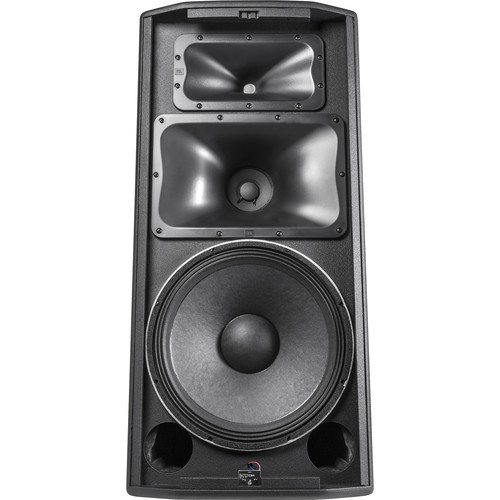

- HF Driver 1 x 1.5" / 3.8 cm Polymer Compression Driver
- MF Driver 1 x 6.5" / 16.5 cm Horn-Loaded
- LF Driver 1 x 15" / 38.1 cm Woofer
-
Magnet HF:
Neodymium
Performance
- Frequency Range 34 Hz to 20 kHz -10 dB
- Frequency Response 39 Hz to 20 kHz ±3 dB
- Maximum SPL 138 dB (Peak)
- Coverage Angle 90° H x 50° V
-
Directivity
- 10.5 dB (Directivity Index)
- 11.2 (Directivity/Q Factor)
I/O Impedance Input:
- 20 Kilohms (Balanced)
- 10 Kilohms (Unbalanced)
-
Protections Output Limiter
Connectivity

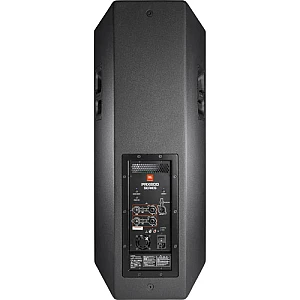

- Audio I/O 2 x Combo XLR-1/4" TRS Balanced Mic/Line Input
- 1 x Stereo RCA Unbalanced Aux Input
- 1 x XLR 3-Pin Balanced Line Output
-
Network I/O None
USB None
Wireless Connectivity Wi-Fi
Signal Processing
Crossover
EQ Yes
Parametric EQ None
Semi-Parametric EQ None
Dynamic Processing Limiter
Alignment Delay 0 to 50 ms
Phase Adjustment None
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical

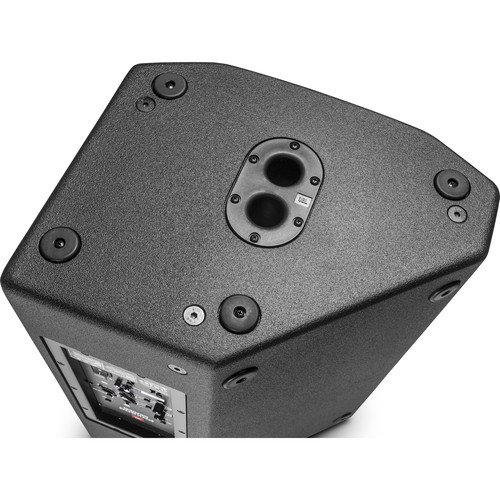

- Mounting 12 x M10 Fly Point

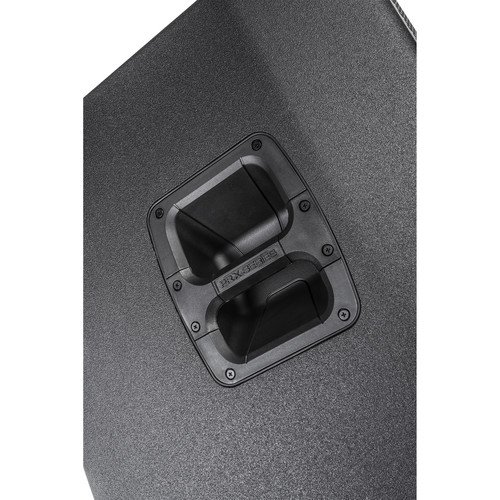

- Handles 1 x Each Side
- Cooling Fan (Variable Speed)
Construction Material Perforated Metal Grille, Plywood
- Dimensions 36.9 x 21.2 x 17.5" / 93.7 x 53.8 x 44.5 cm
- Weight 71.4 lb / 32.4 kg
Packaging Info
- Package Weight 85.4 lb/40 Kgs
- Box Dimensions (LxWxH) 39 x 25.5 x 21"
