Spesifikasi Lexicon I-ONIX U42 USB 2.0 Audio/MIDI Interface

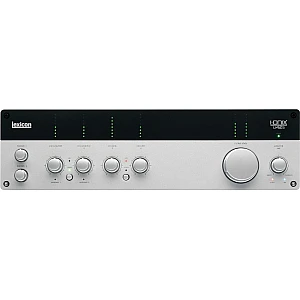

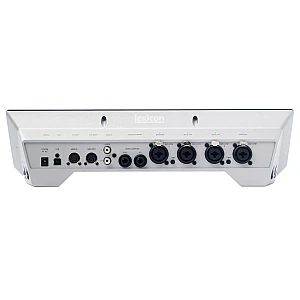

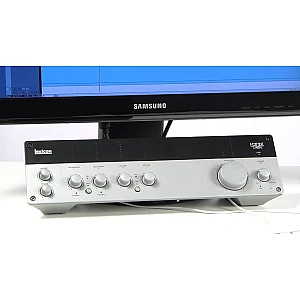

Lexicon I-ONIX U42 USB 2.0 Audio/MIDI Interface

Computer System Recommendations

Windows

• Microsoft Windows® 7, Vista 32 and XP SP2
• 1.8 GHz CPU or faster
• 1 GB RAM
• Display resolution 1024x768 pixels
• DVD-ROM drive
• USB 2.0
• Internet access required for software license activation

Macintosh

• Mac® OS X 10.4.9 or higher
• Intel® Multicore system (Required)
• 1 GB RAM
• Display resolution 1024x768 pixels
• DVD-ROM drive
• USB 2.0
• Internet access required for software license activation

Specifications

• Combi-jack Analog Inputs    4
• Simult. Recording Sources    6
• Microphone Preamps    4
• Hi-Z Instrument Inputs    2
• S/PDIF    Yes
• MIDI    Yes
• Headphone Connections    2
• 1/4" TRS Balanced Analog Outputs    2
• Microphone Inputs    Female XLR Pin 2 Hot
• Input Impedance    3k Ω balanced
• Phantom Power    +48 Volts
• Maximum gain    +55 dB
• E.I.N. (at max gain)    -127 dB @ 55dB gain typical (150O source) -130 dB @ 55dB gain typical A-weighted (150O source)
• Maximum Input Level    +8 dBu
• Frequency Response    +/-1.5 dB, 20Hz - 20kHz
• THD+N    <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, -6 dBu
• Line In puts    1/4” TRS balanced or unbalanced
• Input Impedance    20k Ω balanced, 13k Ω unbalanced
• Maximum Input Level:    +18 dBu
• Frequency Response:    +/-1.5 dB, 20Hz - 20kHz
• THD+N:    <0.02%, 20Hz - 20kHz, <0.002%, 1kHz, +18 dBu
• Instrument Input    1/4" TS unbalanced
• Input Impedance:    1M Ω
• Maximum Input Level    +10 dBu
• Frequency Response    +/-2.5 dB, 20Hz - 20kHz
• THD+N:    <0.08%, 1kHz, +4 dBu
• Line Outputs    1/4” TRS balanced or unbalanced
• Level    +18 dBu maximum
• Impedance    32 Ω Balanced, 16 Ω Unbalanced
• Headphone Output:    1/4” stereo jack 250mW per channel at 50O
• MIDI Interface:    5 pin DIN connectors for MIDI in and MIDI out
• Sample Rate:    44.1, 48, 88.2, or 96 kHz (determined by computer application)
• Dynamic Range:    A/D (24 Bit) 108 dB typical, A-weighted, 20Hz - 20kHz
• Dynamic Range    D/A (24 Bit) 110 dB typical, A-weighted, 20Hz - 20kHz
• Dynamic Range    A/D/A (24 Bit) 106 dB typical, A-weighted, 20Hz - 20kHz
• Power Requirements    Power adaptors available for 100 – 240 VAC, 50/60 Hz, 15 Watts
• Lexicon engineers are constantly working to improve the quality of our products. Specifications are therefore subject to change without notice.
