PreSonus AudioBox iOne USB Audio Interface

Overview

PreSonus AudioBox iOne Adalah Audio Interface USB 2-In/2-Out Portabel Yang Dirancang Untuk Recording Vokal, Podcast, Streaming, Voice Over, Home Studio, Dan Recording Gitar/Bass. Interface Ini Mendukung Windows, macOS, Dan iPad, Dilengkapi Preamp Class-A Berkualitas Tinggi, Phantom Power +48V, Serta Resolusi Audio Hingga 24-Bit/96 kHz.

Interface Configuration

• USB 2.0 Audio Interface
• 2 Inputs / 2 Outputs
• 1 × Microphone Input
• 1 × Instrument (Hi-Z) Input
• Class-A Microphone Preamplifier
• Direct Monitoring System
• USB Bus-Powered Operation
• iPad Compatible Recording Interface

Audio Performance

• Resolution: 24-Bit
• Sample Rate: 44.1 / 48 / 88.2 / 96 kHz
• Dynamic Range: 105 dB
• Low Noise Recording Path
• Professional AD/DA Conversion
• High Headroom Audio Design

Microphone Preamp

Input 1

• 1 × Class-A Microphone Preamplifier
• XLR Balanced Input
• Gain Range: 0 dB – 52 dB
• Input Impedance: 1200 Ω
• Signal-To-Noise Ratio: >95 dB
• THD+N: <0.008%
• Common Mode Rejection Ratio: >65 dB

Input Configuration

Microphone Input

• 1 × XLR Female Balanced Input
• Dynamic Microphone Compatible
• Condenser Microphone Compatible
• Broadcast Microphone Compatible

Instrument Input

• 1 × 1/4″ TS Hi-Z Instrument Input
• Guitar Compatible
• Bass Compatible
• Input Impedance: 1 MΩ
• Direct Instrument Recording Ready

Output Configuration

Main Outputs

• 2 × 1/4″ TRS Balanced Outputs
• Studio Monitor Compatible
• Mixer Compatible
• Professional Line-Level Output

Headphone Output

• 1 × 1/4″ Stereo Headphone Output
• Independent Headphone Volume Control
• Maximum Output: 60 mW Per Channel @ 60 Ω
• Dedicated Monitoring Circuit

Monitoring Features

Direct Monitoring

• Zero-Latency Monitoring
• Internal Analog Mixer
• Direct Monitor Button
• Fixed 50/50 Input & Playback Mix
• Real-Time Recording Monitoring

Phantom Power

• +48V Phantom Power
• Supports Condenser Microphones
• Studio Recording Ready
• Global Phantom Power Activation

Controls

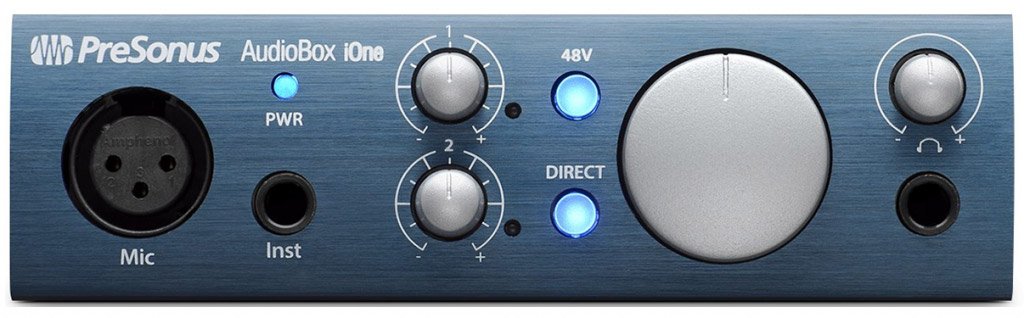

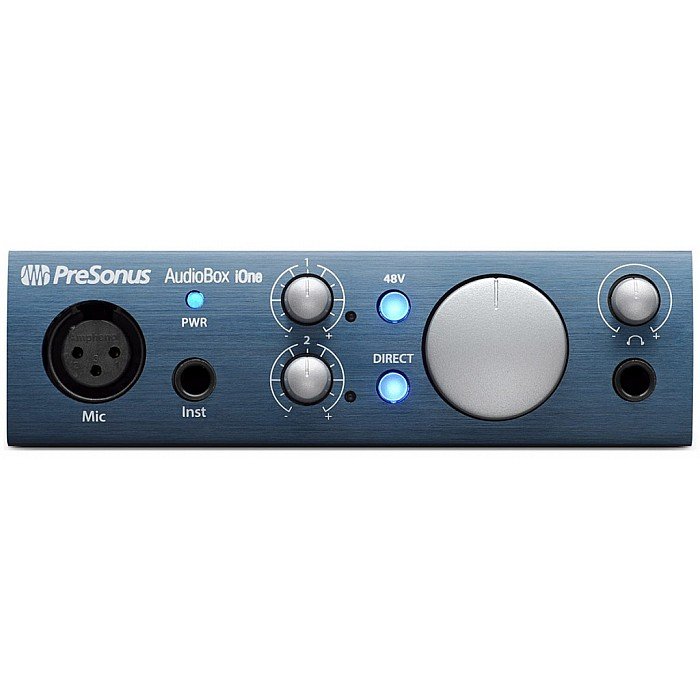

Front Panel

• Microphone Gain Control
• Instrument Gain Control
• Headphone Volume Control
• Main Output Volume Knob
• Direct Monitor Button
• Signal LED Indicator
• Clip LED Indicator

Connectivity

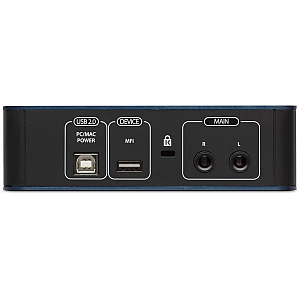

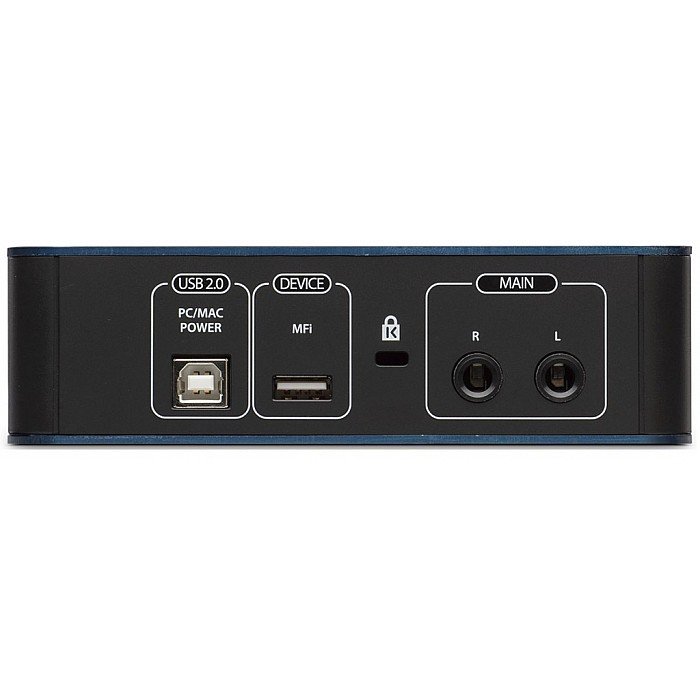

Computer Connection

• USB 2.0 Interface
• USB-B Port For Computer
• USB-A Port For iPad Connection
• Bus-Powered Operation
• No External Power Supply Required

Compatibility

Operating Systems

• Windows Compatible
• macOS Compatible
• iPad Compatible
• iOS Recording Support
• Universal Recording Software Compatibility

Included Software

• Studio One Artist DAW
• Studio Magic Plug-In Suite
• Capture Duo For iPad Support
• Music Production Software Bundle

Applications

Recording

• Vocal Recording
• Podcast Production
• Voice Over Recording
• Acoustic Instrument Recording
• Guitar Recording
• Bass Recording

Content Creation

• Live Streaming
• YouTube Production
• Online Teaching
• Multimedia Production
• Home Studio Recording
