LD Systems LD Systems XS 200 PA Power Amplifier Class D LD Systems XS 200 PA Power Amplifier Class D

Spesifikasi LD Systems XS 200 PA Power Amplifier Class D

LD Systems XS 200 PA Power Amplifier Class D

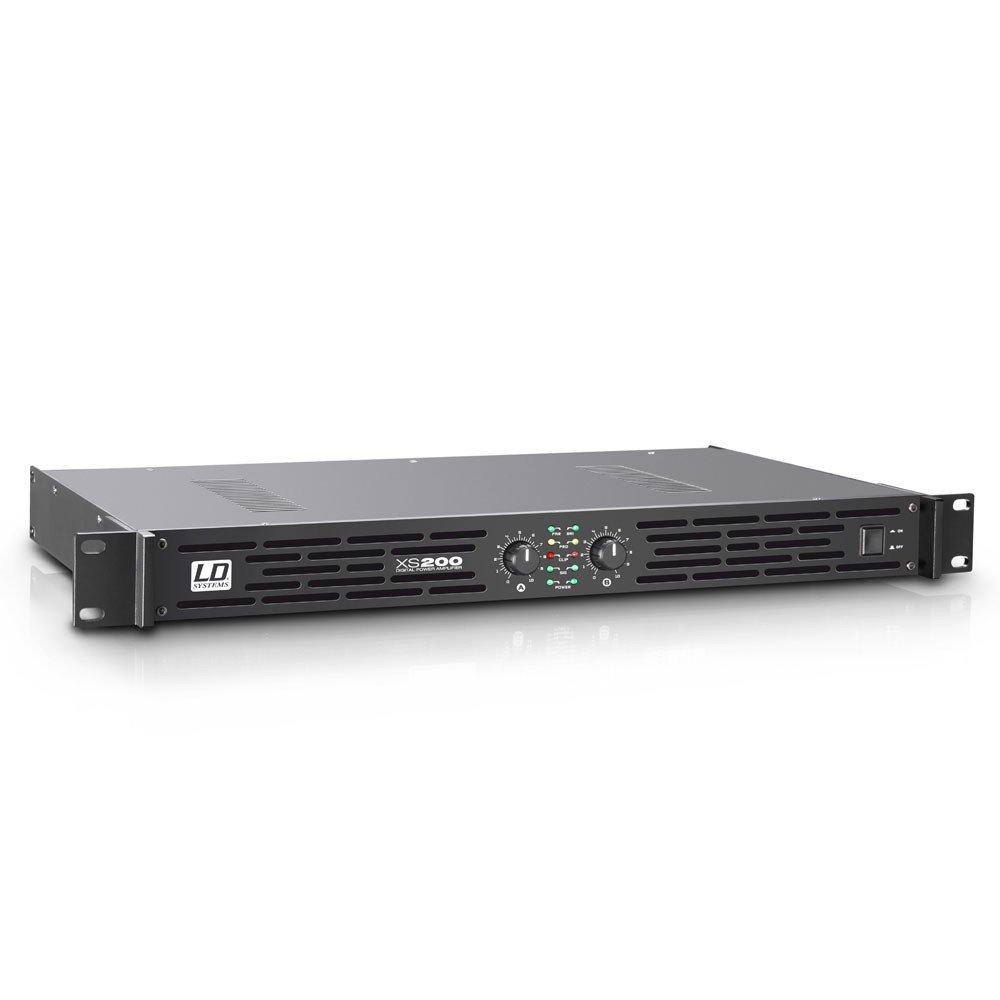

The XS200 is an extremely compact, dependable Class D power amplifier with an output of 100W per channel at 4 ohms and a transmission range of 20Hz – 20kHz. With just 1U and a weight of 3kg, it is conceived for all professional applications in which ease of transport or space is important, whether mobile, in installations or at home, since no fan is required.

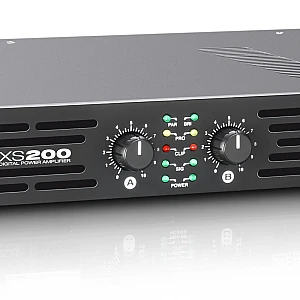

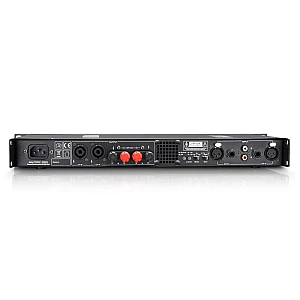

The XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum. LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound.

SPECIFICATIONS

Product number:LDXS200
Product type:Power Amplifiers
Type:PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms):2 x 100W
Rated ouput power (1kHz @ 8 Ohms):2 x 50W
Rated ouput power (1kHz @ 8 Ohms, bridged):200W
Output circuitry:Class D
Frequency response:20 - 20000Hz
THD:< 0.1 %
Gain:30 dB / 26 dB / 24 dBdB
Input sensitivity:0.77 V / 1.1 V / 1.4 V (passed)V
Protection circuits:soft start, over-current, DC, short circuit, thermal overload
Controls:limiter, ground lift, Gain, mode, volume, On / Off
Indicators:Protect (protection circuit engaged), mode, clip, Signal, Power
Line inputs:2
Line input connectors:RCA, 6.3 mm jack
Loudspeaker outputs:2
Speaker output connections:Terminal posts, Speakon compatible
Operating voltage:Switching power supply, 115 V AC / 230 V AC (switchable)
Power consumption @ full load:240 W
Width:482mm
Height:44mm
Depth:244mm
Weight:3kg
Rp.4.480.000,00Tersedia

LD Systems XS 200 PA Power Amplifier Class D

Merek: LD Systems
Kode Produk: LD Systems LDXS200
Ketersediaan: Tersedia
Harga:
Rp.4.480.000,00
Home Credit Instan Kredit Proses Hanya 30 menit.
Mau cicilan tanpa kartu kredit sekarang ANDA BISA...Cukup bawa Fc Ktp / Sim . Kunjungi kami sekarang..
  • 6x Rp.865.397,67
  • 9x Rp.621.110,60
  • 12x Rp.501.504,33
  • 18x Rp.387.500,61
  • AeonUp to
    24x
  • BCAUp to
    24x
  • MandiriUp to
    24x
  • MastercardUp to
    12x
  • Visa (2006-2014)Up to
    12x

Spesifikasi LD Systems XS 200 PA Power Amplifier Class D

LD Systems XS 200 PA Power Amplifier Class D

The XS200 is an extremely compact, dependable Class D power amplifier with an output of 100W per channel at 4 ohms and a transmission range of 20Hz – 20kHz. With just 1U and a weight of 3kg, it is conceived for all professional applications in which ease of transport or space is important, whether mobile, in installations or at home, since no fan is required.

The XS200 is protected against short-circuiting, DC, overheating, and overloading and has a soft-start delay. The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. Slide switches on the rear panel let you select the mode of operation and gain and activate the limiter and the ground-lift function for eliminating ground loop hum. LEDs indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS200 impresses with its high dynamics, impulse fidelity, and transparent sound.

SPECIFICATIONS

Product number:LDXS200
Product type:Power Amplifiers
Type:PA Power Amplifiers
Rated ouput power (1kHz @ 4 Ohms):2 x 100W
Rated ouput power (1kHz @ 8 Ohms):2 x 50W
Rated ouput power (1kHz @ 8 Ohms, bridged):200W
Output circuitry:Class D
Frequency response:20 - 20000Hz
THD:< 0.1 %
Gain:30 dB / 26 dB / 24 dBdB
Input sensitivity:0.77 V / 1.1 V / 1.4 V (passed)V
Protection circuits:soft start, over-current, DC, short circuit, thermal overload
Controls:limiter, ground lift, Gain, mode, volume, On / Off
Indicators:Protect (protection circuit engaged), mode, clip, Signal, Power
Line inputs:2
Line input connectors:RCA, 6.3 mm jack
Loudspeaker outputs:2
Speaker output connections:Terminal posts, Speakon compatible
Operating voltage:Switching power supply, 115 V AC / 230 V AC (switchable)
Power consumption @ full load:240 W
Width:482mm
Height:44mm
Depth:244mm
Weight:3kg
