LD Systems ICOA 12A BT 12 Inch Active Coaxial PA Speaker with Bluetooth

Spesifikasi LD Systems ICOA 12A BT 12 Inch Active Coaxial PA Speaker with Bluetooth

LD Systems ICOA 12A BT 12 Inch Active Coaxial PA Speaker with Bluetooth

LD Systems ICOA 12 A BT
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor.

The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Class-D power amplifier
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions.

Perfect Perfomance

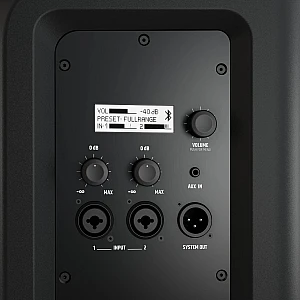

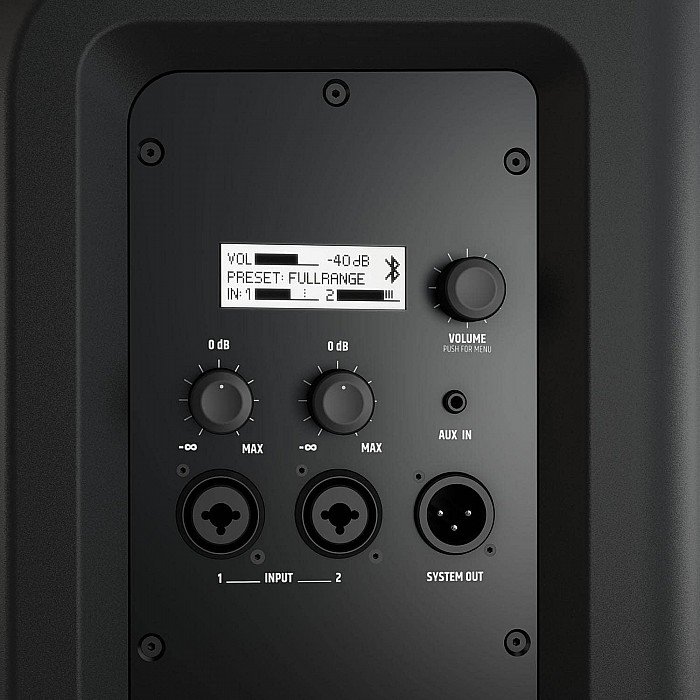

The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

Smart accessories for installation

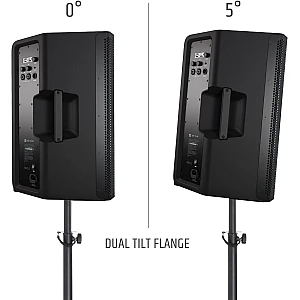

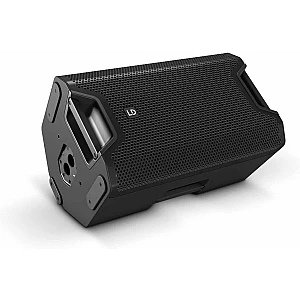

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 1 or 5 degree tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

• General
• Product type PA loudspeaker
• Type Powered
• Low/mid Woofer dimensions 12 "
• Woofer dimensions (mm) 304.8 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• Horn BEM optimized CD Horn
• HF driver dimensions 1 "
• HF driver dimention (mm) 25.4 mm
• HF driver magnet Ferrite
• HF driver brand Custom-made
• HF driver voice coil 1.4 "
• HF driver voice coil 35 mm
• Amplifier Class D
• Dispersion (H x V) 90° x 50°
• System Power (RMS) 300 W
• Peak power 1200 W
• Frequency response 50 Hz - 20000 Hz
• Crossover frequency kHz 2 kHz
• Max. SPL (Peak) 126 dB
• Protection circuits Multiband limiter, over voltage, over-current, thermal overload
• Controls 2 x gain, On / off switch, Rotary/push encoder
• Indicators LC display
• Mic/ line inputs 2
• Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
• Line inputs 1
• Line input connectors 3.5 mm TRS
• Line outputs 1
• Line output connectors XLR
• Operating voltage SMPS
• Power consumption 150 W
• Ambient temperature (in operation) 0 - 40 °C
• Operating voltage 100 V - 240 V AC / 50 - 60 Hz
• Relative Humidity < 80 %, not condensing
• Fuse T4AL 250 V
• Cabinet material Polypropylene
• Cabinet construction Bass Reflex
• Mounting 36mm flange (0°, 5°), 6 x M10 flying points
• Monitor angle 55 °
• Width 375 mm
• Height 635 mm
• Depth 396 mm
• Weight 19,95 kg
• Accessories (included) Power cord
