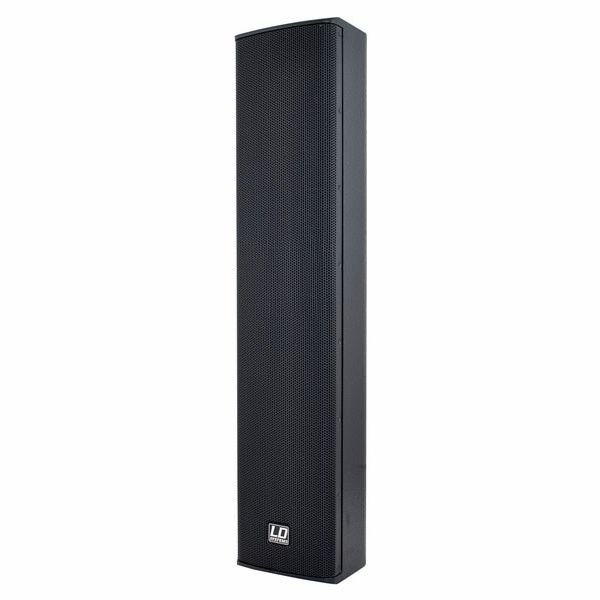

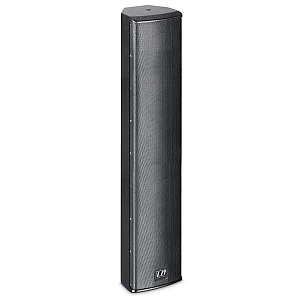

LD Systems SAT 442 G2 4 x 4inch Passive Installation Speaker

Spesifikasi LD Systems SAT 442 G2 4 x 4inch Passive Installation Speaker

LD Systems SAT 442 G2 4 x 4inch Passive Installation Speaker

Description
The LD Systems SAT442G² is an extremely slim installation monitor that can be unobtrusively integrated into almost any environment. The elegant column design of the SAT442G² achieves a smooth balanced 120° horizontal dispersion with a focused 30° vertical directivity and a maximum sound pressure of 114 db. Four 4" custom-made woofers and a 1" compression driver from Celestion provide a balanced playback with a frequency response of 75 Hz to 20 kHz; spring terminals are used as connection. For a powerful, deep bass extension, we recommend the subwoofer installation series from LD Systems.

The rugged cabinet of the SAT442G², featuring a durable textured coating, is made of 12 mm MDF and is available in black or white. M6 inserts and an included universal joint mount (LDSATWMB10B) provide a wide range of possibilities for mounting.

Features
Slim installation speaker for bars, restaurants, shops etc.
120° horizontal dispersion with a 30° vertical bundling
Four 4" custom-made woofers
1" Celestion tweeter
Maximum Power Output of 200 watts
Universal joint mount and M6 fixing points for a wide variety of installation possibilities

• Product type Installation Loudspeakers
• Type Wall-mounted Loudspeaker
• Low/mid Woofer dimensions 4 x 4 "
• Woofer dimensions (mm) 4 x 101 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• HF driver dimensions 1 "
• HF driver dimention (mm) 25 mm
• HF driver magnet Ferrite
• HF driver brand Celestion
• Dispersion (H x V) 120° x 30 °
• Load rating (RMS) 200 W
• Frequency response 75 - 20000
• SPL (1W/1m) 94 dB
• Max. SPL 114 dB
• Impedance 8 Ohm(s)
• Protection circuits HF Driver
• Loudspeaker inputs 1

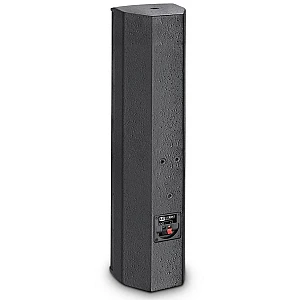

• Speaker input connections Clamp connector
• Speakers per amplifier channel (DSP44/45K) 4
• Cabinet material 12 mm MDF
• Cabinet surface texture paint
• Cabinet colour Black
• Cabinet construction Closed
• Width 140 mm
• Height 670 mm
• Depth 155 mm
• Weight 8 kg
• Features incl. universal joint mount
• ​
