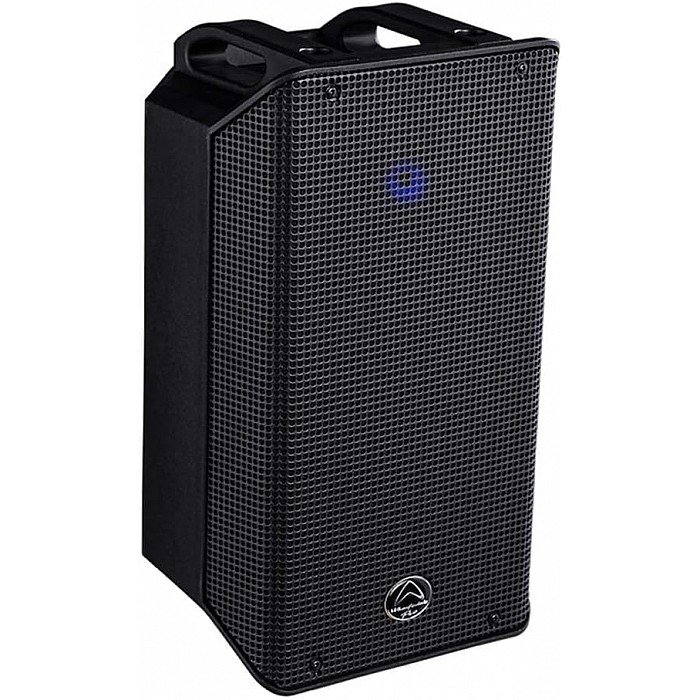

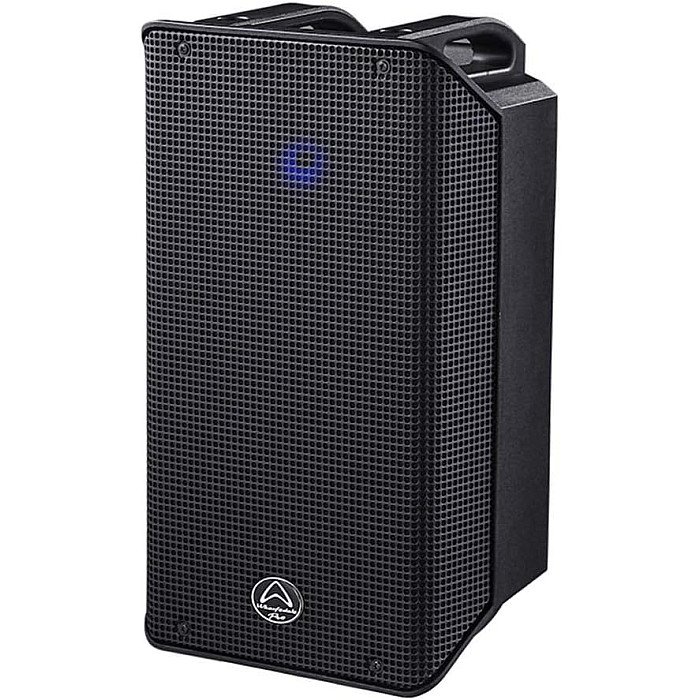

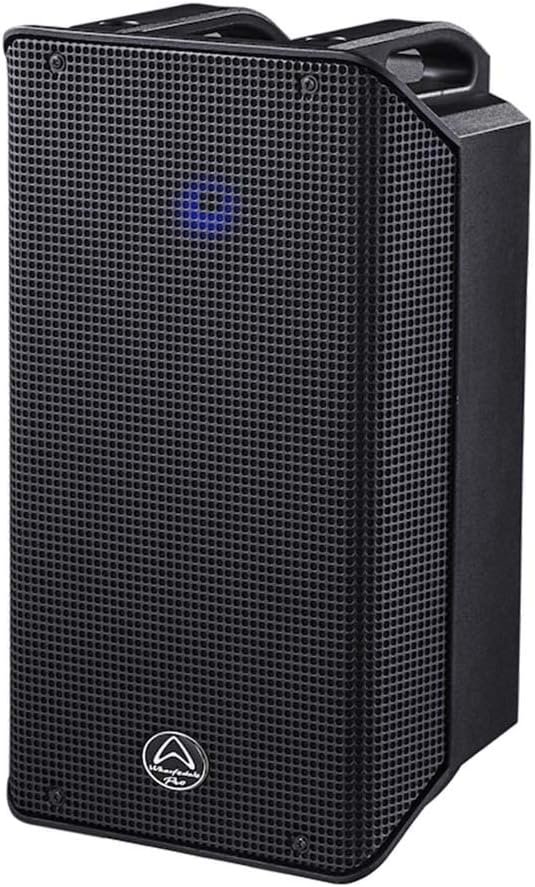

Wharfedale Typhon AX8 8inch 720 Watt Active Speakers with Bluetooth

Spesifikasi Wharfedale Typhon AX8 8inch 720 Watt Active Speakers with Bluetooth

Wharfedale Typhon AX8 8inch 720 Watt Active Speakers with Bluetooth

WHARFEDALE PRO TYPHONAX8BT DETAILS
Custom Wharfedale Pro transducers have been selected for the Warfedale Typhon-AX8-BT.

Features:

• 8" Bi-amplified active loudspeaker
• 1.75" HF compression driver
• 720 w Continuous
• 1440 w Peak
• 127 dB Max SPL @ 1 meter
• 2.5" LF voice coil

IP54 Certified
The custom compression driver features a large 1.75" voice coil. This is coupled to a 100° x 80° waveguide for smooth HF dispersion.

The custom Wharfedale Pro LF transducers have a newly designed ferrite core, use flat coil windings to aid cooling, and feature a moisture rejecting cone material which allows Typhon to be used in damp or humid conditions. In fact…..all Typhon loudspeakers are IP54 Certified ! Just like all other Wharfedale Pro plastic active loudspeakers, the two amplifiers inside a Typhon are extremely efficient. So efficient that they can use convection cooling. This means that there are no fans! Fans inside loudspeakers can add to operational noise, weight, price and can lead to reliability issues.

BLUETOOTH and TWS Linking
The Typhon "BT" models feature aptX Bluetooth input connectivity and TWS linking which makes setup with mobile devices simple and cable free.Simply pair your Bluetooth audio source (such as a smartphone or laptop) with a Typhon "BT" model and thats it! High quality aptX streaming makes connection easy.Typhon "BT" models however also features a TWS LINK mode. This allows two Typhon "BT's" to communicate with each other to create a wireless stereo pair.

Lets look inside
Just like all other Wharfedale Pro plastic active loudspeakers, Typhon uses the largest HF voice coils in their class. All models use a 1.75" coil HF compression driver.These custom made Wharfedale Pro compression driver delivers crisp and precise high frequencies, even at extreme volumes.The internal amplifiers of Typhon have been tuned specifically for the HF and LF drivers that we have chosen. This makes for perfect power and frequency transfer, resulting in the sonic experience that you'd expect from a Wharfedale Pro active loudspeaker.

HARDWARE
A completely new polypropylene cabinet design with a full frontal steel grille houses the most advanced active loudspeakers ever created by Wharfedale Pro.This injection moulded cabinet is carefully engineered to feature 5 carry handles making transportation easy and well balanced.For on stage or for fixed installation, the carefully designed hardware of Typhon makes setup and positioning easy and effective.

Specs:

Model Name: Typhon-AX8-BT
System Type: Active 8" 2-way
Frequency Response (+/-3dB): 65Hz-20kHz
Frequency Range (-10 dB): 60Hz-20kHz
Maximum SPL (peak@1m): 127dB
Sensitivity @ 1W / 1m): 96dB
Size (mm / inches): 203.8mm / 8"
Voice-Coil Size (mm / inches): 65mm / 2.5"
Rated Impedance: 4O
HF Driver Type: Compression Driver
Coil Size (mm / inches): 44mm / 1.75"
Exit Size (mm / inches): 25mm / 1"
Diaphragm Material: Titanium
Rated Impedance: 8O
Nominal Coverage (H x V): "Hybrid Symmetry Horn 100°x80°"
Amplifier Design: 2 x Class D
Power rating: 1440w Peak (1200W LF+240W HF), 720W Continuous (600W LF + 120W HF)
DSP Controls-D-EQ: FLAT/MONITOR/BASS/PUNCH
Power On Protection: Yes
Thermal Protection: Yes
Low Line Voltage Shut Down: Yes
Driver Protection: Yes
DC Protection: Yes
Short Protection: Yes
Clip Limiter: Yes
Limiter Indicator: Yes
Power Indicator: Yes

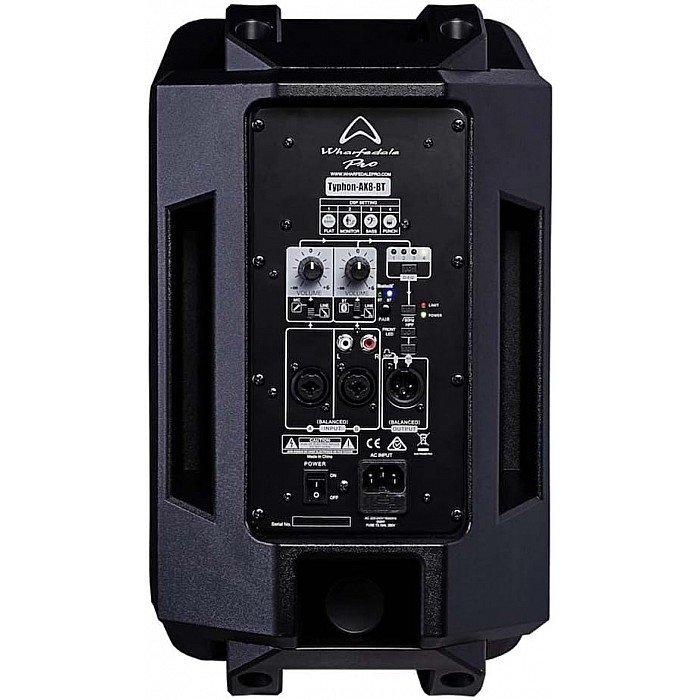

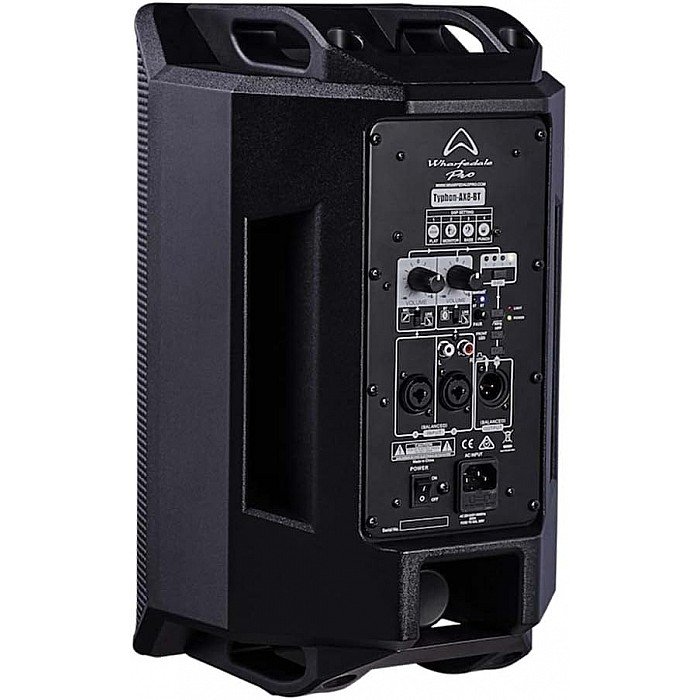

Input A - type: Balanced/RCA/Bluetooth(aptX,with link Stereo)
Input Sensitivity: 775mV (0dBu)
Maximum Input Level: 4V
Input Connector: 2 x XLR/ 6.3mm combi jack, 2 x RCA (Line/MIC)
Input Impedance: 20K ohms
Line Output Connector: XLR
Loop Gain: 0dB
Power Supply: 220~240VAC/100~120VAC 50/60Hz
Rigging / Bracket / Mounting Options: 8 x M6 (1 x M8 Back) threaded inserts, 35 mm pole socket with lock screw, Optional WPB-2 wall-mount bracket
Handles: 4 carry handles (on top and bottom side)
Enclosure Material and finish: Injection Moulded Polypropylene
Colour Options: Black paint
Grille Material & Finish: steel


Dimensions - Unpacked

• Height: 433.6mm / 17.1"
• Width Front: 256mm / 10.1"
• Width Rear: 100.1mm / 3.9"
• Depth: 240mm / 9.5"
• Net Weight (kg / lbs) 10.7kg / 23.5lbs
• Country of Origin: China
