Spesifikasi JBL PRX 812W 1500W 12 inch Powered Speaker

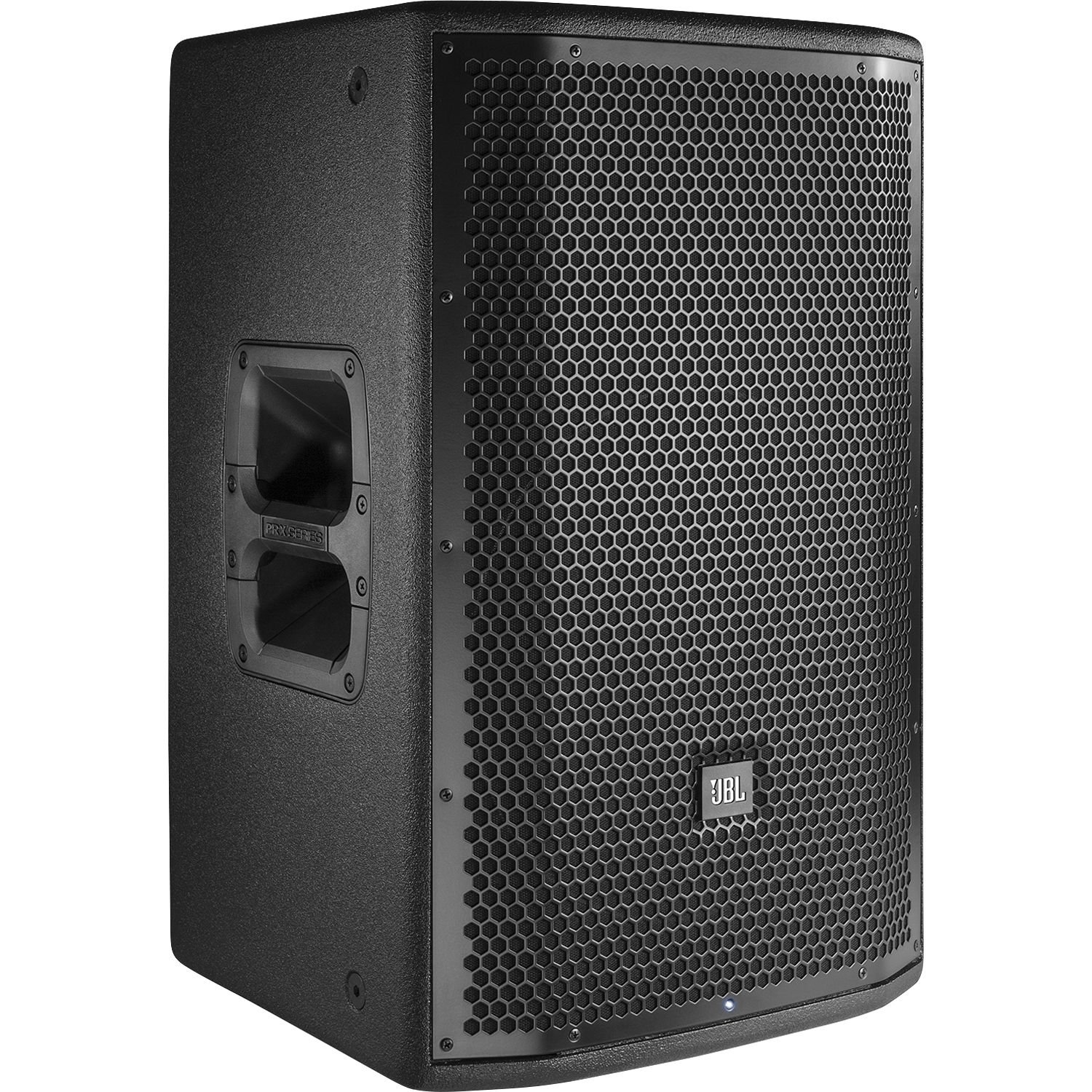

JBL PRX 812W 1500W 12 inch Powered Speaker
Efficient Active Speaker with Remote Operation
Achieve complete control over your live rig's tuning and performance, courtesy of the JBL PRX812W active PA speaker's onboard Wi-Fi technology and advanced DSP.
And do it from anywhere in the venue using your tablet and the free PRX Connect app.
Housed in a rugged all-wood cabinet, the PRX812W's lightweight yet powerful 1500-watt Class D amplifier employs JBL's acclaimed Differential Drive technology for efficient power handling. A redesigned input panel and universal power supply yield easy, reliable operation wherever you go.
Features at a Glance:
- 1500W, 12" 2-way active PA speaker
- Onboard Wi-Fi technology and advanced DSP offer remote system operation
- User-selectable presets and EQ settings using the free PRX Connect app and your tablet
- Differential Drive technology yields efficient power handling
- Doubles as an active floor monitor
- Universal power supply provides reliable operation worldwide
- Housed in a rugged all-wood cabinet
Specs
- Powered : Yes
- Power Configuration : Bi-amped

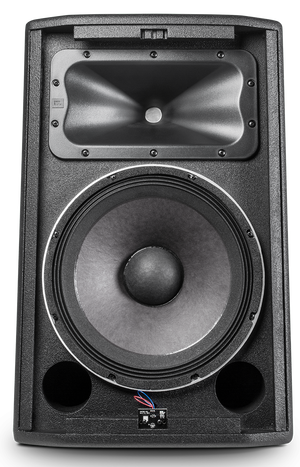

- LF Driver Size : 12" woofer
- HF Driver Size : 1.5" compression driver
- LF Driver Power Amp : 750W Class D
- HF Driver Power Amp : 750W Class D
- Total Power : 1500W

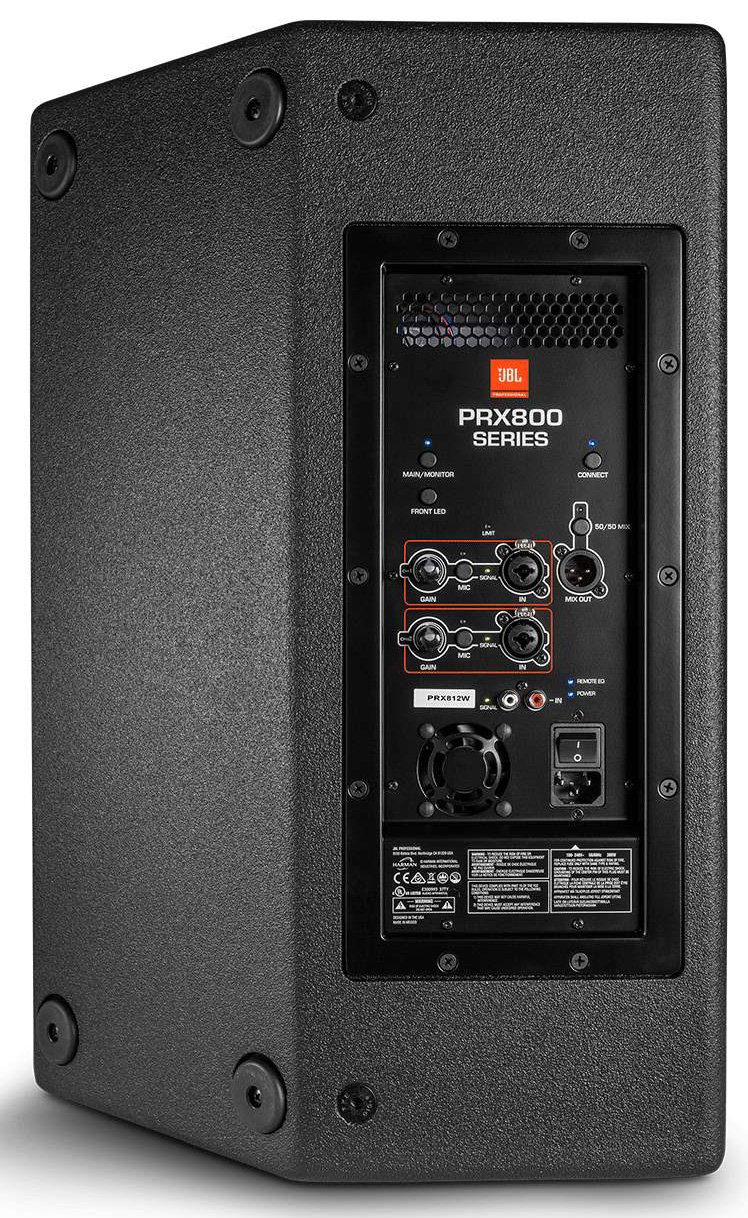

- Inputs : 2 x XLR-1/4" combo (Mic/Line), 2 x RCA (stereo)
- Outputs : 1 x XLR (mix out)
- Wireless : Wi-Fi controllable features via PRX Connect App
- Frequency Range : 52.6Hz-20khz (-10 dB)
- Frequency Response : 58.1Hz-20kHz (±3 dB)
- Crossover Frequency : 1.85 kHz
- Maximum Peak SPL : 135 dB SPL
- Horizontal Coverage Angle : 90-degrees
- Vertical Coverage Angle : 50-degrees
- Signal Processing : EQ, dbx Type IV limiter
- Enclosure Material : Birch/Poplar
- Mounting Options : Pole Mount with dual 1.41" socket, 12 x M10 Fly Points
- Height : 23.6"
- Width : 15.1"
- Depth : 13.4"
- Weight : 42.5 lbs/ 19.27768Kgs
