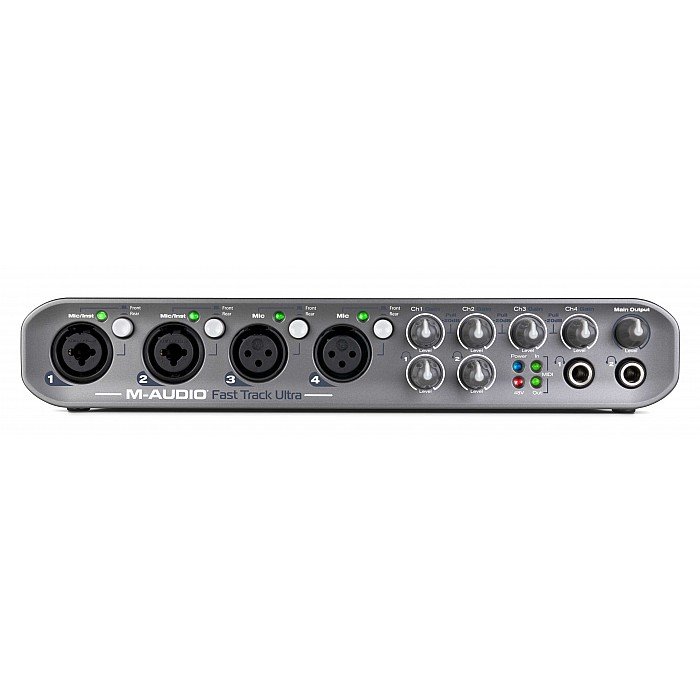

M-Audio Fast Track Ultra

Spesifikasi Fast Track Ultra

Fast Track Ultra

The Fast Track® Ultra 8 x 8 audio/MIDI interface takes M-Audio’s acclaimed mobile recording line to the next level with high-speed USB 2.0 connectivity, MX Core™ DSP mixer and four preamps with award-winning Octane™ technology. Featuring both analog and digital I/O, it allows recording on all eight channels simultaneously with pristine 24-bit/96kHz fidelity—while M-Audio’s mature low-latency drivers ensure rock-solid stability and performance. The on-board MX Core™ DSP mixer processes eight hardware inputs and eight software returns to the eight hardware outputs, delivering flexible routing and monitoring with delay and reverb. Compatible with most major audio software*, Fast Track Ultra lets you record the way you want—in the studio or on the go.

Specifications:

All specs measured at 48kHz sampling rate unless otherwise stated
Mic Inputs (A/D)

Input Impedance	1.7k ohms unbalanced, 3.4k ohms balanced

Maximum Input Level	from +21dBu @ min gain (with pad) to -50dBu @ max gain (no pad)

Channel-to-Channel Crosstalk	< -110dB

SNR (min gain, no pad)	-103dB, A-weighted

Dynamic Range (min gain, no pad)	103dB, A-weighted

THD+N (min gain, no pad)	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB

Preamp Gain	> 60dB

Pad	-20dB
Instrument Inputs (A/D)

Input Impedance	1M ohm, unbalanced

Maximum Input Level	from +14dBV @ min gain (no pad) to -40dBV @ max gain (no pad)

SNR (min gain, no pad)	-103dB, A-weighted

Dynamic Range (min gain, no pad)	103dB, A-weighted

THD+N (min gain, no pad)	0.005% (-86dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB @ 48kHz sample rate

Preamp Gain	>45dB

Pad	-20dB
Line Inputs (A/D)

Input Impedance	28k ohm balanced / 20k ohm unbalanced

Maximum Input Level	+3.4dBu, balanced/+1.2dBV, unbalanced

Channel-to-Channel Crosstalk	< -110dB

SNR	-103dB, A-weighted

Dynamic Range	103dB, A-weighted

THD+N	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Input Inserts (analog)

Maximum Level Send	+6dBV, unbalanced

Maximum Level Return	+6dBV, unbalanced

THD+N	0.002% (-94dB) @ -1dB from max level, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Line Outputs (D/A)

Output Impedance	150 ohms, unbalanced / 300 ohms, balanced

Maximum Output Level	+10dBu, balanced
+1.8dBV, unbalanced

Channel-to-Channel Crosstalk	< -100dB

SNR	-104 dB, A-weighted

Dynamic Range	104dB, A-weighted

THD+N	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Headphone Output (D/A)

Maximum Output	0dBV at THD < 0.05% into 32 ohms

Channel-to-Channel Crosstalk	< -55dB

Frequency Response	20Hz to 20kHz, +/- 0.7dB

Working Range	24 to 600 ohms

Rp.5.200.000,00 Tersedia

Fast Track Ultra

Toko Alat Musik Jual Semua Product M-Audio Terlengkap Original dan Termurah

Merek: M-Audio
Kode Produk: Fast Track Ultra
Ketersediaan: Tersedia

Harga:

Rp.5.200.000,00

Jml:

0 review | Tulis review

Keterangan Review (0) Tags:

Spesifikasi Fast Track Ultra

Fast Track Ultra

Specifications:

All specs measured at 48kHz sampling rate unless otherwise stated
Mic Inputs (A/D)

Input Impedance	1.7k ohms unbalanced, 3.4k ohms balanced

Maximum Input Level	from +21dBu @ min gain (with pad) to -50dBu @ max gain (no pad)

Channel-to-Channel Crosstalk	< -110dB

SNR (min gain, no pad)	-103dB, A-weighted

Dynamic Range (min gain, no pad)	103dB, A-weighted

THD+N (min gain, no pad)	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB

Preamp Gain	> 60dB

Pad	-20dB
Instrument Inputs (A/D)

Input Impedance	1M ohm, unbalanced

Maximum Input Level	from +14dBV @ min gain (no pad) to -40dBV @ max gain (no pad)

SNR (min gain, no pad)	-103dB, A-weighted

Dynamic Range (min gain, no pad)	103dB, A-weighted

THD+N (min gain, no pad)	0.005% (-86dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB @ 48kHz sample rate

Preamp Gain	>45dB

Pad	-20dB
Line Inputs (A/D)

Input Impedance	28k ohm balanced / 20k ohm unbalanced

Maximum Input Level	+3.4dBu, balanced/+1.2dBV, unbalanced

Channel-to-Channel Crosstalk	< -110dB

SNR	-103dB, A-weighted

Dynamic Range	103dB, A-weighted

THD+N	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Input Inserts (analog)

Maximum Level Send	+6dBV, unbalanced

Maximum Level Return	+6dBV, unbalanced

THD+N	0.002% (-94dB) @ -1dB from max level, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Line Outputs (D/A)

Output Impedance	150 ohms, unbalanced / 300 ohms, balanced

Maximum Output Level	+10dBu, balanced
+1.8dBV, unbalanced

Channel-to-Channel Crosstalk	< -100dB

SNR	-104 dB, A-weighted

Dynamic Range	104dB, A-weighted

THD+N	0.002% (-94dB) @ -1dBFS, 1kHz

Frequency Response	20Hz to 20kHz, +/- 0.1dB
Headphone Output (D/A)

Maximum Output	0dBV at THD < 0.05% into 32 ohms

Channel-to-Channel Crosstalk	< -55dB

Frequency Response	20Hz to 20kHz, +/- 0.7dB

Working Range	24 to 600 ohms
