Spesifikasi Tascam DP 24SD 24 Track Digital Portastudio

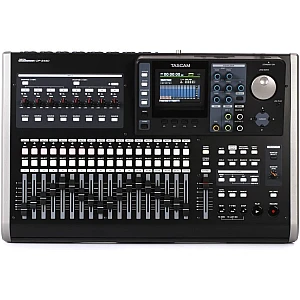

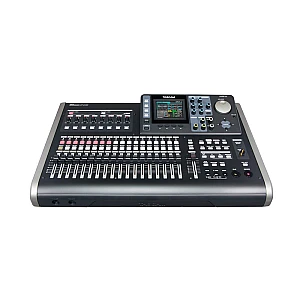

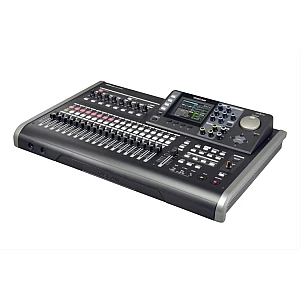

Tascam DP 24SD 24 Track Digital Portastudio

The TASCAM DP-24SD 24-track Digital Portastudio is the perfect all-in-one recording solution for computer-phobic musicians. With eight individual input channels, the 24-channel DP-24SD lets you easily track an entire band. Onboard effects, signal processors, and mastering tools give you everything you need to polish your tracks to perfection and save them to the included SD card or export them to your computer via USB. And thanks to its intuitive master section and full set of hands-on controls, producing music with the TASCAM DP-24SD 24-track Digital Portastudio is as fun as it is rewarding.

TASCAM DP-24SD Digital Portastudio Recording System at a Glance:

• Enough simultaneous inputs to track a whole band
• Loaded with onboard effects and powerful built-in signal processors
• Intuitive channel-strip-style controls make tracking and mixing easy

• Enough simultaneous inputs to track the whole band

Track the whole band at once, with the TASCAM DP-24SD Digital Portastudio. The DP-24SD comes loaded with eight individual inputs. Each input is equipped with an XLR-1/4" combo jack and a microphone preamplifier, complete with phantom power for your condenser mics. That means even if you use a handful of microphones on drums and a couple more on guitars and bass, you'll still have an input left on the DP-24SD to track vocals.

• Loaded with onboard effects and powerful built-in signal processors

No studio is complete without quality effects and signal processors. That's why TASCAM loaded their DP-24SD Digital Portastudio with a ton of studio-style tools. Record with vital processors such as equalizers, compressors, and limiters, while the DP-24SD's onboard guitar-amp-simulation engine adds real amplifier sound to your instrument input. You can sweeten your sound with reverb, chorus, and other enhancements during mixdown. What's more, the TASCAM DP-24SD's powerful onboard mastering effects let you get the most out of your final mixes.

• Intuitive channel-strip-style controls make tracking and mixing easy

Why wade through tedious menus for the controls that should be close at hand? TASCAM built the DP-24SD to be both powerful and intuitive to use, with none of the frustrating awkwardness that plagues over-engineered gear. The DP-24SD's simple master channel-strip section gives you hands-on controls for your channel EQ, pan, and send settings. There's also an easy-to-read color display that gives you instant feedback as you tweak your channel settings, effects, and processors, as well as dedicated controls for all essential recording function.

• Records to SD/SDHC Media

The DP-24SD uses SD/SDHC media. These cards provide secure shock resistance due to the absence of any moving parts. The file format in the DP-24SD is FAT 16 or 32. You can transfer the recorded files to your computer via USB

• 8 XLR/TRS Inputs, 8 Channel Recording

The DP-24SD has 8 XLR/TRS combo inputs. You can record up to eight sources at one time

• 3-Band EQ

Input A-H and each track are equipped with 3-band EQ. The equalizer for each track and each input are independent from other effects. Record with EQ for each individual track.

• 8 Dynamic Effects, Guitar Effects, and Mix-Down Effects

Use up to 8 dynamics effects at once, one for each input source. For example, utilize the built-in compressor effect for your bass, guitar and drum tracks. In addition, the DP-24SD has multiple guitar and mixing effects.

• Built-In Digital Mastering

The unit is equipped with mastering effects for finished-sounding mixes. There is no need for computers when recording and mixing. The mastering effects section includes a Multi-Band Compressor, EQ, Noise-Shaping Dither, and a Normalize Effects. You can create a 2-track master file for transfer to your computer and delivering to CD mastering or sharing online.

Headphone Amplifier

• The headphone amplifier provides ample monitoring in loud environments such as a rehearsal studios or live performance
• Track bounce function
• Virtual tracks (8 virtual tracks per one track)
• Locate mark up to 99 at one song
• Chromatic tuner

Specs

• Simultaneous Rec Tracks: 8
• Simultaneous Play Tracks: 24
• Sample Rate: 44.1/48kHz
• Bit Depth: 16-bit/24-bit
• Effects: Yes
• EQ: Yes (channel/master)
• Compression: Yes (channel/master)
• Phantom Power: Yes
• Number of Mic Preamps: 8
• Computer Connectivity: USB file transferring
• Analog Inputs: 8 x XLR-1/4" combo, 1 x remote input (using RC-3F footswitch)
• Analog Outputs: 1 x Dual RCA Stereo, 2 x 1/4" (monitor), 2 x 1/4" (effects sends), 1 x 1/4" (headphone)
• USB: USB Mini-B
• Storage: SD card (2GB), SDHC card (32GB)
• Faders: 19 x 45mm
• Power: 12V DC power supply (included)
• Height: 4.1"
• Depth: 13.4"
• Width: 20.2"
• Weight: 13.67 lbs.
