Roland TM-1 Trigger Module

Spesifikasi Roland TM-1 Trigger Module

Roland TM-1 Trigger Module

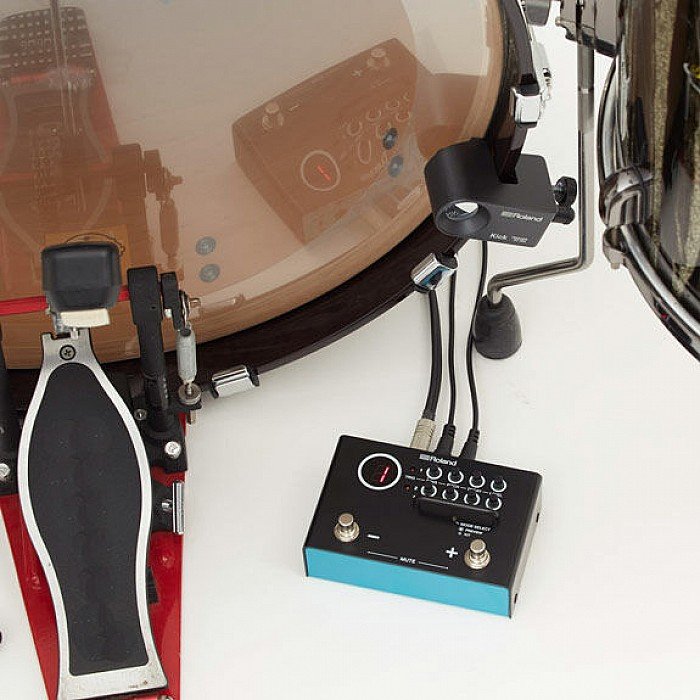

TM-1 is a unique trigger module that makes it easy to add more sounds to your acoustic drum kit. And those sounds can be anything you like, from the TM-1's onboard kick, snare, tom, cymbal, and percussion samples to your own samples and loops. Just connect any compatible Roland trigger pad to the TM-1 and directly play the sounds you need, or mount an RT-series trigger to one of your acoustic drums and play with your preferred sample layered on top in perfect sync, with no lag whatsoever.

Getting your own custom sounds into the TM-1 is a breeze, thanks to the free editor app for Mac/Windows and iOS/Android. Simply connect the TM-1 to your device, open the app, import samples from your library, and tweak the settings as needed.

With the TM-1, it's easy for any player to start their hybrid journey. With dedicated controls for sensitivity, pitch, and more, there's no technical knowledge required for operation - simply turn the knobs until the sound is right to you and start playing!

Features

• Simple and intuitive to use, with direct controls for all trigger functions
• Small size, battery operation, and sturdy floor-based design integrates easily with your regular drum set
• Two built-in footswitches for triggering sounds, changing kits, and muting the module
• 15 ready-to-play onboard kits and nearly unlimited sound customization via a convenient editor app
• Free TM-1 Editor (Mac/Windows, iOS/Android) provides access to over 150 additional sounds, plus user sample import and much more
• Compatible with Roland RT-series acoustic drum triggers and a wide variety of Roland trigger pads
• Connect up to two pads or triggers (two single-trigger devices or one dual-trigger device)
• Also works as a trigger-to-MIDI convertor when connected to a computer
• USB for editor communication and trigger-to-MIDI conversion

Specs

Kits: 15

Preloaded Sounds: 30

Number of User Sample: 30

Data Format:
Mac OSX: WAV, AIFF, MP3, AAC, Apple Lossless
Windows: WAV (44.1 kHz, 16/24 bits)
iOS: WAV, AIFF, MP3, AAC, Apple Lossless
Android: WAV (44.1 kHz, 16 bits), MP3
*The Application 'TM-1 Editor' is required.

Display: 7 segments, 1 character (LED)

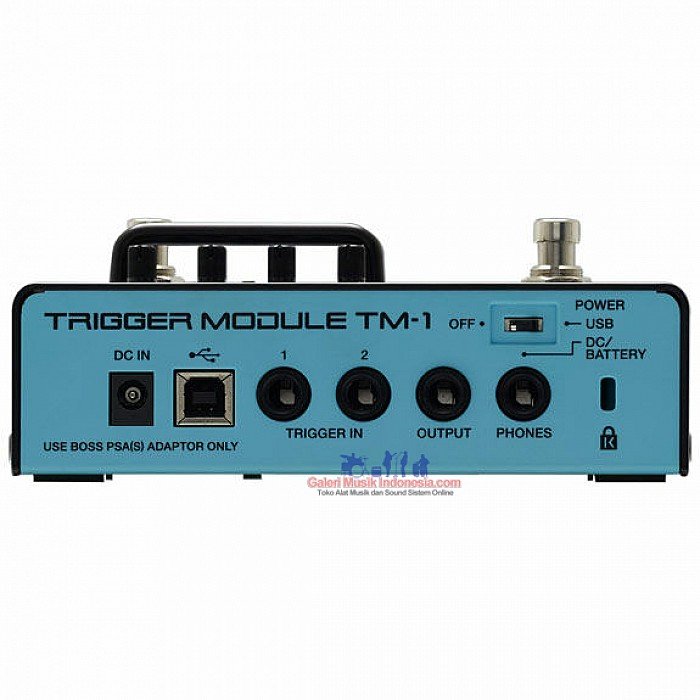

Connectors:
TRIGGER IN jack : 1/4-inch phone type, mono
OUTPUT jack : Stereo 1/4-inch phone type
*When setting the Output Setting to the "MIX", The mixed sound of trigger 1 and 2 is output in mono.
*When setting the Output Setting to the "INDIVIDUAL", Each trigger is output separately to left and right (TRIG1: L-Side, TRIG2: R-Side).
PHONES jack: Stereo 1/4-inch phone type
USB port: USB type B
DC IN jack

USB: MIDI

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (DC 9 V, sold separately)
Supplied from the computer via USB port

Current Draw: 100 mA (DC IN); 250 mA (USB)

Accessories: USB type B Cable

Size and Weight:
Width: 150 mm (5-15/16 inches)
Depth: 95 mm (3-3/4 inches)
Height: 60 mm (2-3/8 inches)
Weight (including batteries): 550 g (1 lb 4 oz)
