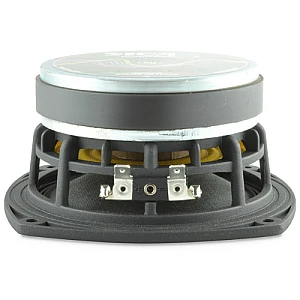

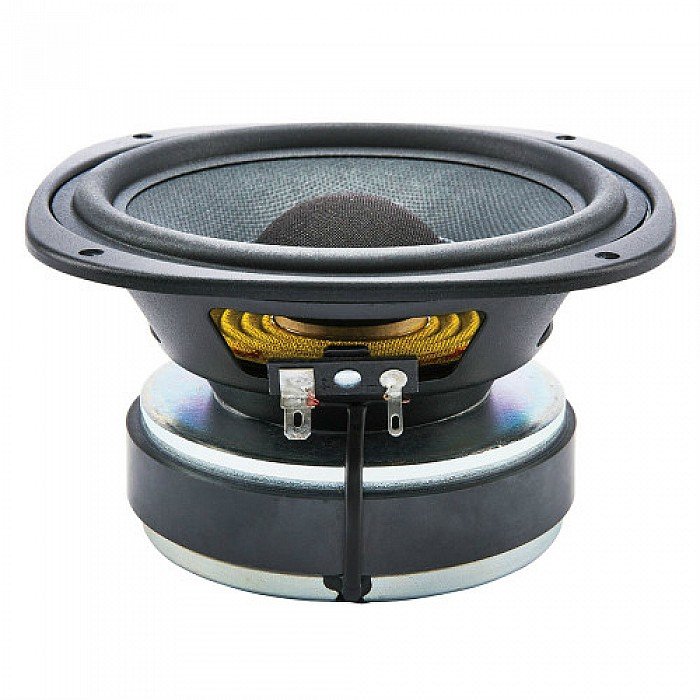

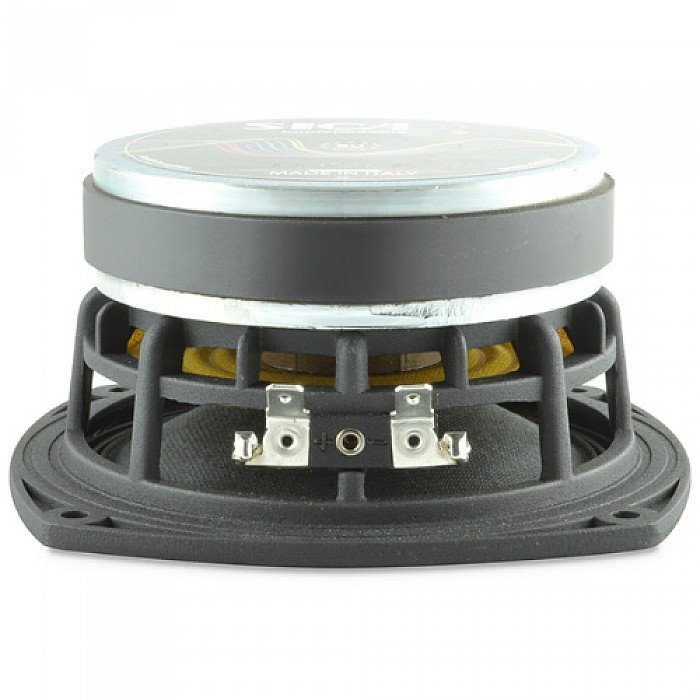

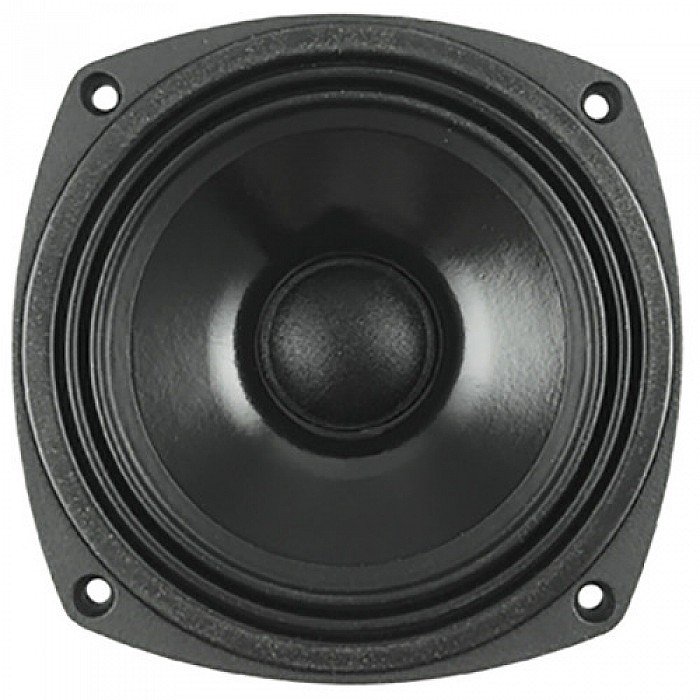

Celestion TFX0512 8 Ohm 5″ 100W Coaxial Loudspeaker

Spesifikasi Celestion TFX0512 8 Ohm 5″ 100W Coaxial Loudspeaker

Celestion TFX0512 8 Ohm 5″ 100W Coaxial Loudspeaker

Celestion announced the launch of two new small-format, coaxial drivers at the 2018 NAMM show. According to Celestion, the pressed steel chassis of the TFX0512 and TFX0615, provide a very cost effective complement to the company’s well-established FTX series of coaxial units, for applications including compact, fixed-install sound reinforcement and cinema audio.

The two new TFX drivers emphasize Celestion’s commitment to delivering a wide range of high quality solutions for sound reinforcement applications that demand a full-range point source solution. They further underscore the company as the world’s number one supplier of branded coaxial transducers.

• Silk dome tweeter
• Integrated HF waveguide
• 100° nominal HF coverage
• Ideal for Hifi and home cinema speaker designs and near field PA installations
• Superb in Bass Guitar cabinets for clear midrange and hf applications.

• Size 5”, 125 mm
• Power rating 100W (rms)
• Continuous power rating 200W
• Nominal impedance 8Ω
• Sensitivity 92dB
• Frequency range 70-4,000Hz
• Voice coil diameter 1.25”, 32 mm
• Chassis type Pressed steel
• Magnet type Ferrite
• Magnet weight 0.48kg/17oz

• Diameter 5.9”, 151 mm (max)
• Overall depth 2,8”, 72 mm
• Cut-out diameter 4.6”, 116 mm
• Number of mounting slots 4
• Mounting PCD range 5.5”, 140 mm
• Unit weight 4.4lb, 2kg
•

• D 3.94”, 100 mm
• Fs 69.1Hz
• Mms 8.6g/0.3oz
• Qms 6.184
• Qes 0.494
• Qts 0.46
• Re 5.45Ω
• Vas 5.38l/0.19ft3
• BI 6.42Tm
• Cms 0.62mm/N
• Rms 0.6kg/s
• Le (at 1kHz) 0.37mH
