Celestion

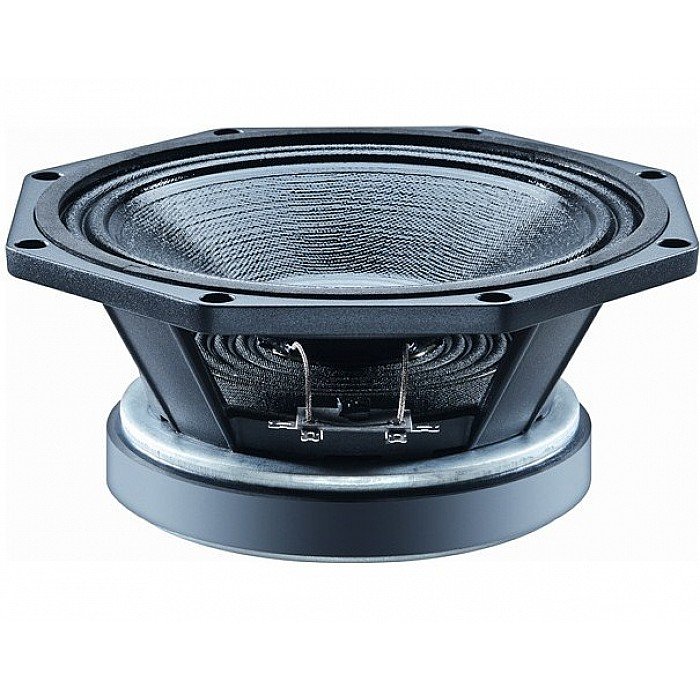

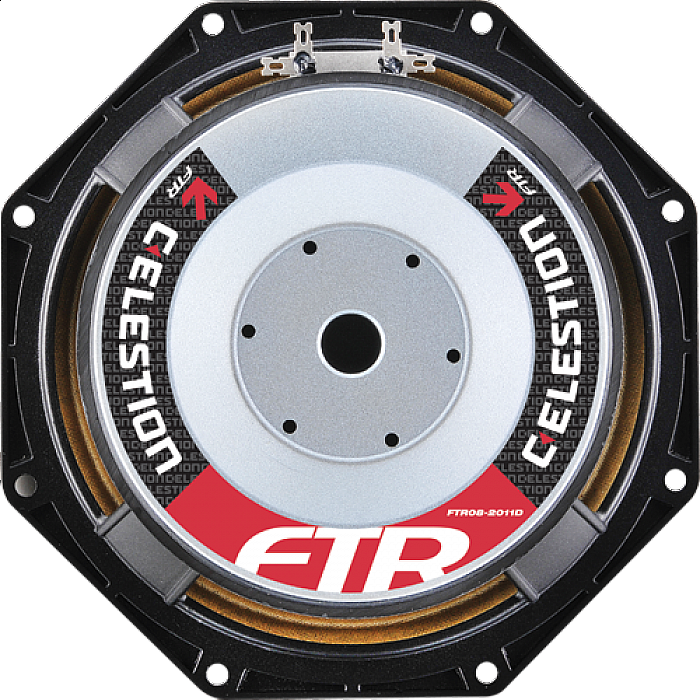

Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Rp.1.015.000,00
Tersedia
Spesifikasi Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Celestion FTR08-2011D 8" 200 Watt Professional Woofer Driver 8 Ohm
The versatile Celestion FTR08-2011D 8" driver offers excellent performance when used in bass and dedicated midrange applications. Its 2" copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures. An M-roll cone surround, for controlled excursion, is combined with an optimized Kevlar-loaded paper cone. This ensures the speaker's frequency response is smooth and extended. The octagonal frame allows for closer driver-to-driver spacing, reducing comb-filtering effects in the mid to high frequency range.
Specifications
- Nominal Diameter...........................................8"
- Power Handling (RMS)...................................200 Watts
- Power Handling (max)....................................400 Watts
- Impedance......................................................8 ohms
- Frequency Response.....................................70 to 6,000 Hz
- Sensitivity.......................................................93 dB 1W/1m
- Voice Coil Diameter.......................................2"
Thiele-Small Parameters
- Resonant Frequency (Fs).................................................86.1 Hz
- DC Resistance (Re)..........................................................5.82 ohms
- Voice Coil Inductance (Le)................................................0.38 mH
- Mechanical Q (Qms).........................................................2.24
- Electromagnetic Q (Qes)...................................................0.54
- Total Q (Qts)......................................................................0.44
- Compliance Equivalent Volume (Vas)...............................0.32 ft.³
- Mechanical Compliance of Suspension (Cms)...................0.12 mm/N
- BL Product (BL).............................................................12.71 Tm
- Diaphragm Mass Inc. Airload (Mms)................................27.75g
- Moving Mass Of Diaphragm (Mmd).................................25.01 g
- Maximum Linear Excursion (Xmax).................................3.5 mm
- Surface Area of Cone (Sd).............................................226 cm²
- Weight..........................................................................9.0000 lbs.
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume..........................................................................0.15 ft.³Sealed F3152 Hz
- Vented Volume..........................................................................0.39 ft.³Vented F375 Hz
Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Harga:
Rp.1.015.000,00
Spesifikasi Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Celestion FTR08 2011D 8 Inch 200 Watt Professional Woofer Driver 8 Ohm
Celestion FTR08-2011D 8" 200 Watt Professional Woofer Driver 8 Ohm
The versatile Celestion FTR08-2011D 8" driver offers excellent performance when used in bass and dedicated midrange applications. Its 2" copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures. An M-roll cone surround, for controlled excursion, is combined with an optimized Kevlar-loaded paper cone. This ensures the speaker's frequency response is smooth and extended. The octagonal frame allows for closer driver-to-driver spacing, reducing comb-filtering effects in the mid to high frequency range.
Specifications
- Nominal Diameter...........................................8"
- Power Handling (RMS)...................................200 Watts
- Power Handling (max)....................................400 Watts
- Impedance......................................................8 ohms
- Frequency Response.....................................70 to 6,000 Hz
- Sensitivity.......................................................93 dB 1W/1m
- Voice Coil Diameter.......................................2"
Thiele-Small Parameters
- Resonant Frequency (Fs).................................................86.1 Hz
- DC Resistance (Re)..........................................................5.82 ohms
- Voice Coil Inductance (Le)................................................0.38 mH
- Mechanical Q (Qms).........................................................2.24
- Electromagnetic Q (Qes)...................................................0.54
- Total Q (Qts)......................................................................0.44
- Compliance Equivalent Volume (Vas)...............................0.32 ft.³
- Mechanical Compliance of Suspension (Cms)...................0.12 mm/N
- BL Product (BL).............................................................12.71 Tm
- Diaphragm Mass Inc. Airload (Mms)................................27.75g
- Moving Mass Of Diaphragm (Mmd).................................25.01 g
- Maximum Linear Excursion (Xmax).................................3.5 mm
- Surface Area of Cone (Sd).............................................226 cm²
- Weight..........................................................................9.0000 lbs.
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume..........................................................................0.15 ft.³Sealed F3152 Hz
- Vented Volume..........................................................................0.39 ft.³Vented F375 Hz
