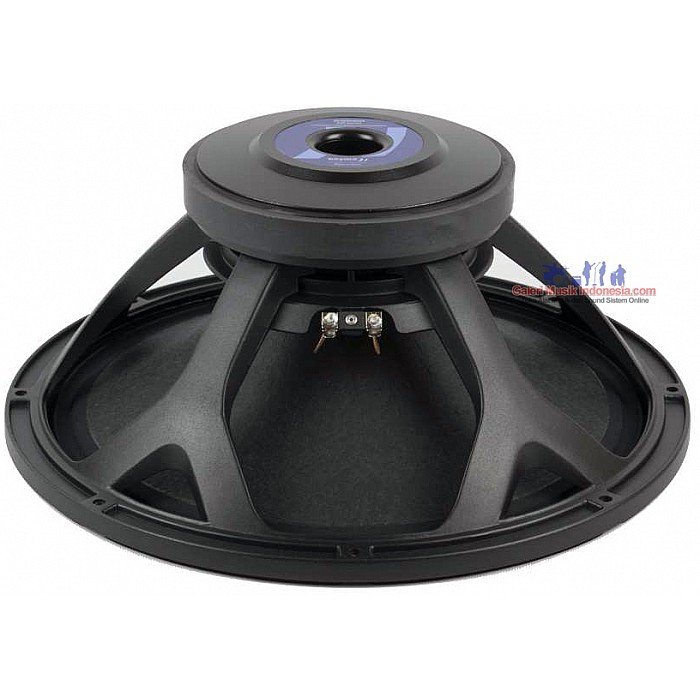

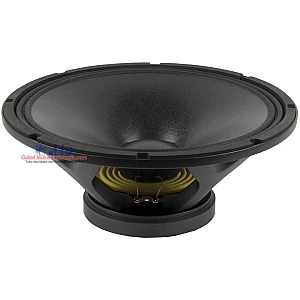

Beyma 15 WR 400 15 Inch MidBass / Bass Speaker
Kode Produk: 15 WR 400
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.2.800.000,00
Spesifikasi Beyma 15 WR 400 15 Inch MidBass / Bass Speaker
Beyma 15 WR 400 15 Inch MidBass / Bass Speaker
- NEW THE BEYMA 15WR400 15" MID-BASS / BASS SPEAKER HANDLES 400 WATTS AES & 800 WATTS PROGRAM POWER HANDLING
- FEATURES A STRONG CAST ALUMINUM FRAME & WATERPROOF FRONT AND BACK CONE
- WIDE FREQUENCY RESPONSE FROM 35HZ TO 4KHZ WITH HIGH SENSITIVITY OF 99DB SPL
- MMS TECHNOLOGY FOR HIGH CONTROL, LINEARITY AND LOW HARMONIC DISTORTION
- XMAX OF 6.3MM FOR A CLEAN TIGHT BASS & A 30MM PEAK TO PEAK DISPLACEMENT
- WORKS GREAT AS A BASS GUITAR SPEAKER FOR PLAYERS THAT WANT A GOOD COMBINATION OF SMOOTH MIDS AND TIGHT DEEP SOUNDING BASS
- ALSO DESIGNED FOR 2 OR 3-WAY SPEAKER SYSTEM AS A MID-BASS / BASS SPEAKER
- AVAILABLE IN 4 & 8 OHMS
|
Specifications |
|
|
Nominal Basket Diameter |
15" / 380mm |
|
Impedance |
8 ohms |
|
AES Power Rating |
400 Watts |
| Program Power | 800 Watts |
|
Frequency Response |
35Hz - 4.0kHz |
|
Sensitivity (1W/1m) |
99dB |
|
Voice Coil Diameter |
3" / 77mm |
| Recom. Enclosure Volume | 2.45-5.25 ft3 / 70-150 Liters |
| Voice Coil Length | 16 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
|
Mounting Information |
|
| Overall Diameter | 15.28" / 388mm |
| Bolt Circle Diameter | 14.57" / 370mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 13.76" / 349.5mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.14 ft3 / 4 Liters |
| Overall Depth | 6.3" / 160mm |
| Net Weight | 13.4 lb. / 6.1 kg. |
| Shipping Weight | 15.96 lb. / 7.1 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Waterproof Front & Back Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 36 Hz |
| Impedance (Re) | 5.5 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.2 |
| Electrical Factor(Qes) | .32 |
| Total Q (Qts) | .30 |
| Comp. Equivalent Vol. (Vas) | 7.91 ft3 / 224 Liters |
| Voice Coil Overhang (Xmax) | 6.3mm |
| Diaphragm Mass (Mms) | 91 Grams |
| Effective Surface Area (Sd) | .088 m2 |
| Reference Efficiency | 3.4% |
| BL Factor | 19.2 T-M |
| Displacement Volume | 555 cm3 |
|
Low Frequency Response & Distortion Graph |
|
 |
|
| Impedance Graph | |
 |
|
| Mounting Dimensions | |
 |
|
