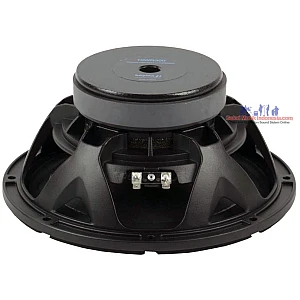

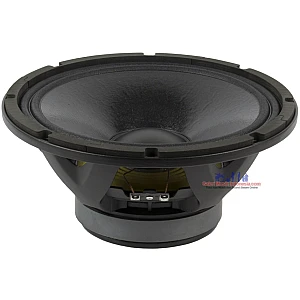

Beyma 10 WR 300 10 Inch MidBass / Bass Speaker
Kode Produk: 10 WR 300
Ketersediaan: Tersedia
Ketersediaan: Tersedia
Harga:
Rp.1.900.000,00
Spesifikasi Beyma 10 WR 300 10 Inch MidBass / Bass Speaker
Beyma 10 WR 300 10 Inch MidBass / Bass Speaker
- THE NEW BEYMA 10WR300 10" CAST FRAME MID-BASS / BASS SPEAKER THAT HANDLES 300 WATTS AES & 600 WATTS PROGRAM POWER HANDLING
- WARM LOUD MIDS WITH A DEEP RICH THICK BASS SOUND WITH A 6.0MM XMAX
- MMS TECHNOLOGY FOR BETTER CONTROL WITH VERY LOW DISTORTION AT HIGH POWER LEVELS & A PEAK TO PEAK 30MM XMAX
- WATERPROOF FRONT AND BACK CONE FOR OUTDOOR USE
- GREAT FOR BASS GUITAR WHERE CLEAN TRANSPARENT MIDS AND A TIGHT BASS ARE REQUIRED
- ALSO WORKS WELL IN 2 OR 3-WAY PA SPEAKER SYSTEMS
- AVAILABLE IN 4 & 8 OHMS
|
Specifications |
|
|
Nominal Basket Diameter |
10" / 250mm |
|
Impedance |
4 or 8 ohms |
|
AES Power Rating |
300 Watts |
| Program Power | 600 Watts |
|
Frequency Response |
50Hz - 5.0kHz |
|
Sensitivity (1W/1m) |
95dB |
|
Voice Coil Diameter |
2" / 50.8mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 8 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 14.3 N/A |
|
Mounting Information |
|
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.59" / 243.5mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 9.06" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
| Overall Depth | 4.52" / 115mm |
| Net Weight | 7.71 lb. / 3.5 kg. |
| Shipping Weight | 8.6 lb. / 3.9 kg. |
|
Materials |
|
| Basket | Cast Aluminum |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | High Currie Temperature Ferrite |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 47 Hz |
| Impedance (Re) | 6.0 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 3.9 |
| Electrical Factor (Qes) | .31 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 1.78 ft3 / 50.5 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Moving Mass (Mms) | .039 kg. |
| Surface Area of Cone (Sd)m2 | 0.035m2 |
| Reference Efficiency | 1.7% |
| Displacement Volume (Vd) | 210 cm3 |
|
Frequency Response & Distortion Curves |
|
| Note: On axis frequency response measured with loudspeaker standing on infinite baffle in anechoic chamber, 1W @ 1m | |
|
|
|
|
Impedance Curve |
|
|
|
|
|
MOUNTING INFORMATION |
|
|
|
|
