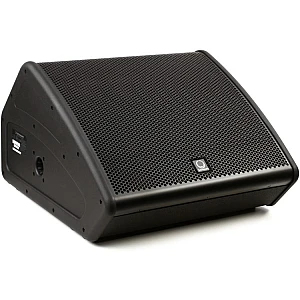

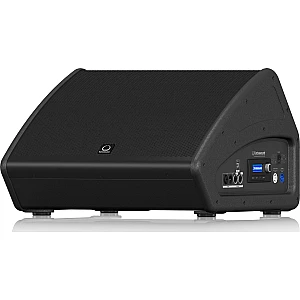

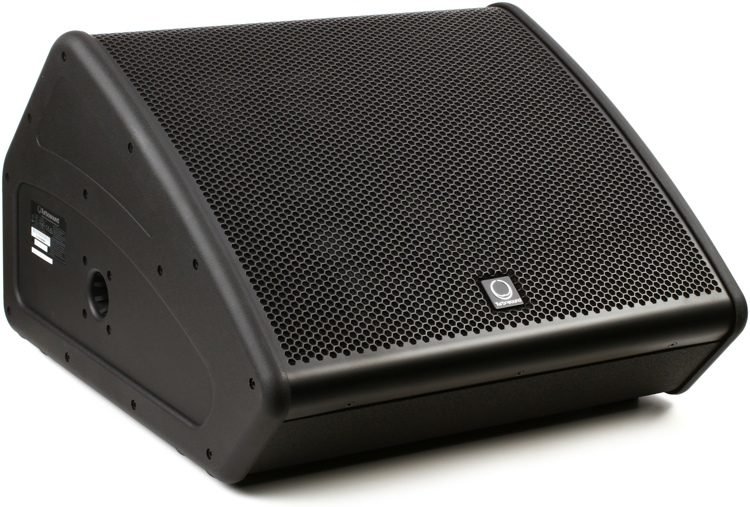

Turbosound TFM152M-AN 15" Flashline Series 2-way Stage Monitor

Spesifikasi Turbosound TFM152M-AN 15" Flashline Series 2-way Stage Monitor

Turbosound TFM152M-AN 15" Flashline Series 2-way Stage Monitor

Loaded with Ultranet digital audio connectivity and flexible onboard DSP, Turbosound's TFM152M-AN powered stage monitor takes the design of the popular TFX122M-AN and upgrades it with more than twice the power and other tour-ready features. Scaled up to 2,500 watts of highly efficient Class D amplification, the TFM152M-AN manages to retain its slim and lightweight form while blasting out a ton of volume. And thanks to the upgraded powerCON connectors, you can daisy-chain both Ultranet cables and power cables, keeping the setup simple and secure.

Pro-quality coaxial speakers produce consistent sound

Unlike typical monitor wedges, which use either a single driver or a traditional low- and high-frequency driver layout, the TFM152M-AN includes a custom Turbosound coaxial driver. This speaker includes a 15" main driver with a carbon fiber cone and neodymium magnet, at the center of which there's a 1.4" titanium dome compression driver. This structure means that all the audio comes from a single point, ensuring that you'll hear the same thing, no matter where you are onstage.

• Coaxial speakers deliver centralized sound for consistent monitoring
• 15" neodymium-coil driver with carbon fiber cone delivers powerful lows
• Titanium-dome 1.4" compression driver reproduces smooth highs
•

• Onboard Klark Teknik DSP delivers superb sound

  Thanks to its built-in DSP from Klark Teknik, the Turbosound TFM152M-AN powered loudspeaker delivers superb sound, no matter where you are. You get easy-to-use dynamic EQ for impressive full-range response at low volume levels and transparent limiting for killer sound at high output levels. You also get DSP presets that have been optimized for a wide range of applications and speaker orientations.

• Powerful onboard DSP lets you adjust critical settings
• DSP covers input configuration, EQ, delay, and more

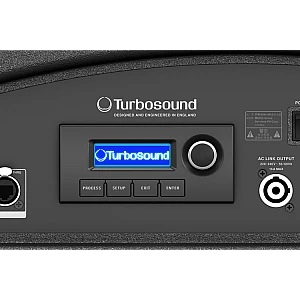

• Program DSP via the LCD controls or USB/software
•

Ultranet technology makes live digital audio easy

The TFM152M-AN features full compatibility with Behringer's Ultranet communications platform. Ultranet allows you to send digital audio between your compatible mixer and speakers (available at Sweetwater) via standard Cat 5 Ethernet cables. It's perfect for long cable runs and delivers up to 16 channels of pristine digital audio on a single cable. What's more, each TFM152M-AN includes both an Ultranet input and an Ultranet output, allowing you to daisy-chain multiple speakers.

• Receives digital audio from other Ultranet sources
• Cat 5 Ethernet supports extremely long cable runs
• Ultranet Thru port lets you daisy-chain speakers
•

Lightweight Class D amplifier for serious power

The Turbosound TFM152M-AN powered loudspeaker provides you with enormous power and incredible sonic performance in an easy-to-use, lightweight package. Klark Teknik's Class D amplifier technology makes all the difference, giving you phenomenal energy efficiency and eliminating the need for heavy power supplies and massive heat sinks.

• High-power, lightweight Class D amp onboard
• Produces 2500 watts of output with little heat
• Capable of producing 132dB peak output SPL
•

Turbosound TFM152M-AN Powered Stage Monitor Features:

• Sophisticated 2-way stage wedge that's perfect for mobile PA systems
• Klark Teknik Class D power amp delivers 2500 watts of output
• Coaxial 15" LF/1.4" HF drivers provide centralized sound for consistent projection
• Klark Teknik DSP lets you easily dial in EQ, delay, and other critical system settings
• Adjust settings via PC remote control software or LCD screen
• Ultranet digital audio networking integrates with other mixers and speakers
• Neutrik powerCON power connectors let you daisy-chain AC between speakers
• Low-profile design looks good and provides 60-degree/40-degree dispersion
• Fiberglass-reinforced 5/8" plywood provides added protection and stability

Tech Specs

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:15" Neodymium woofer
• HF Driver Size:1.4" Titanium dome, Neodymium compression driver
• Total Power:2500W
• Inputs:1 x XLR-1/4" combo, 1 x XLR (link)
• Frequency Range:50Hz-20khz (-10 dB)
• Maximum Peak SPL:132 dB SPL
• Horizontal Coverage Angle:60°
• Vertical Coverage Angle:40°
• Enclosure Material:15mm birch plywood with polypropylene plastic
• Mounting Options:Floor Wedge, pole mount socket
• Height:13.8"
• Width:22.3"
• Depth:20.9"
• Weight:44.5 lbs.
