Spesifikasi Beyerdynamic TG 534 Headworn Set w/ Neck Microphone & Transmitter

Beyerdynamic TG 534 Headworn Set w/ Neck Microphone & Transmitter

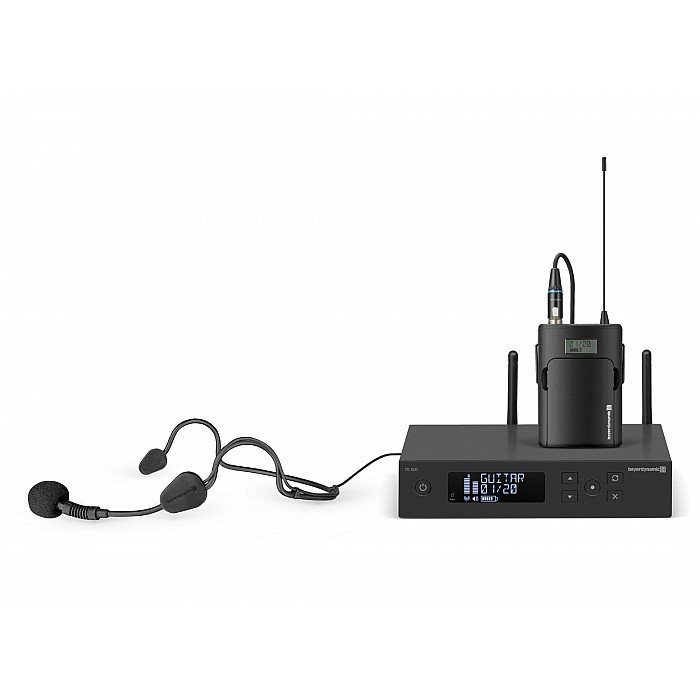

The BeyerDynamic TG 534 Headworn Set contains an individual receiver and two removable antennas. It also comes with a TG H34 neckworn microphone (condenser, super cardioid), making it the perfect choice for theatre productions. With an operating range of up to 120 metres, the BeyerDynamic TG 500 allows for substantially greater freedom than comparable systems. The switching bandwidth is up to 40 MHz, and when all four frequency bands (518–548 MHz, 606–636 MHz, 794–832 MHz and 1.780–1.810 MHz) are used, up to 72 channels (18 compatible frequencies per band) can be operated simultaneously, thus making the TG 500 system suitable even for larger installations.

SPECIFICATION

System

• Frequency range
  • 518 – 548 MHz
  • 606 – 636 MHz
  • 794 – 832 MHz
  • 1,780 – 1,810 MHz
• Transmission range: up to 120 m (line of sight)
• Number of the simultaneously active channels: 18 per frequency band
• Audio frequency response: 45 – 15 kHz
• Audio dynamic range: 106 dB (A-weighted)
• Operating principle: Analogue wireless microphone system with diversity receiver

Single receiver

• Output level: max. +3 dBV/+5 dBu
• Display: 2 x LCD, white backlit
• Mains connection: 100 – 240 V AC with power adapter
• Power consumption: 3 W (typ.)
• Ambient temperature: 0 to +55 °C
• Weight: 960g
• Dimensions: 200 x 175 x 42 mm
• Antenna connection: 2 x BNC input
