Mipro ACT-311B/ACT-32T/MU-23 Wireless Microphone Mipro ACT-311B/ACT-32T/MU-23 Wireless Microphone

Spesifikasi Mipro ACT-311B/ACT-32T/MU-23 Wireless Microphone

Mipro ACT-311B/ACT-32T/MU-23 Wireless Microphone

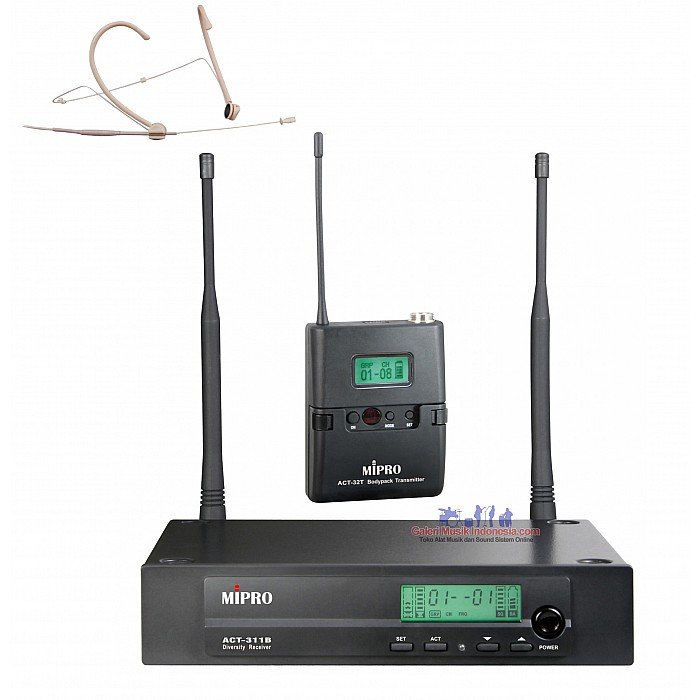

The Mipro ACT-311B / ACT-32T wireless microphone system comprises of one ACT-311B single channel UHF radio mic receiver and one ACT-32T wireless beltpack transmitter.

The system operates on channel 38 which requires a licence.

Automatic Channel Targeting (ACT) feature makes system set up extremely simple by matching and synchronising transmitters and receiver at the press of a button.

1U high, half rack width - rack mountable using the optional FB-71 or FB-72 rack mount ears - see related products.



  • EIA standard 1/2U metal rack-mountable receiver.
  • Stable PLL circuit. Auto Scan function allows quick search for an interference-free working channel from 112 preset channels under 10 groups. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies.
  • World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
  • Advanced diversity technology for optimum reception range reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
  • Backlit LCD is lit in green indicates the receiver is in working mode when it detects an incoming signal or buttons are touched. The display dims automatically when the receiver is idle for about 10 seconds.
  • Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
  • Industry’s only RF interference warning indicator for proper adjustments of the SQ level.
  • Increase sensitivity to extend receiving range; decrease the sensitivity to reduce interference.
  • Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
  • DC input jack accepts 12~15V power supply.



The Mipro ACT-32T wireless beltpack transmitter is ideal for hands free presentations, fitness and dance instructors, You will also need to purchase a tie clip lapel mic or  headset mic - see related products.

  • Lightweight, compact size with sturdy plastic housing.
  • Mute switch, mini-XLR connector and antenna connection are found on the top.
  • Backlit LCD displays various parameters and status.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
  • Can directly match to high-low input impedance for microphone or guitar without switching.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).

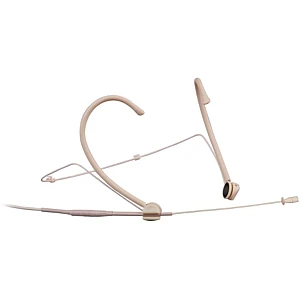

The Mipro MU-23



  • Compact ear-hook design for a secure, ultra comfortable fit.
  • Supplied in three ear-hook sizes for ideal fit. (S, M, L)
  • Subminiature Ø 3 mm omni-directional condenser capsule.
  • Resistant to moisture, perspiration and salts.
  • Fixed microphone boom.
  • Soft yet flexible thin bends 120-degree.
  • The holder can be rotated for adjusting the microphone.
  • Ideal for speech applications.
  •





Receiver Specification

Frequency RangeUHF 480 – 934 MHz
Bandwidth24 MHz
Preset Frequency112 preset channels.
Group 1-6: 8 compatible channels in each group.
Group 7-10: 16 compatible channels in each group.
Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11.
Receiving ModeDiversity
Receiving AntennaRear Panel. Detachable.
Oscillation ModePLL Synthesized
Stability≦ ±0.005% (-10 - +60℃)
Sensitivity10 dBμV at S/N > 80 dB
S/N Ratio> 106 dB(A)
T.H.D.< 0.5% @ 1 kHz
Frequency Response50 Hz – 18 kHz, with high pass filter
Squelch"PiloTone & NoiseLock" dual-squelch circuit
Audio Output AdjustmentOutput level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Max. Output LevelBalanced: +16 dBV / 0 dBV ; Unbalanced: +10 dBV / 0 dBV
Power Supply12 – 15 V DC, 1A
Power Consumption3 W
Dimensions (W × H × D)210 × 44 × 180 mm / 8.3 x 1.7 x 7.1 "
WeightApprox. 0.8 kg / 1.8 lbs

Beltpack Transmitter Specification

Frequency RangeUHF 480 – 934 MHz
Bandwidth24 MHz
Oscillation ModePLL Synthesized
Channel Set-UpACT Sync
RF Output Power10 mW / 30 mW (switchable)
Deviation< ± 40 kHz
Spurious Emissions≦ -55 dBc
LCD DisplayGroup, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status and error codes
Max. Input Level0 dBV
Mute ConnectorOptional MJ-70 remote mute switch
Battery Type2 AA alkaline
Operating TimeMin. 12 hours
Current ConsumptionHigh Power: approx. 161 mA ; Low Power: approx. 120 mA
Dimensions (W × H × D)63 × 82 × 22 mm / 2.5 × 3.2 × 0.9 "
Net WeightApprox. 83 g / 2.9 oz
Rp.7.050.000,00Tersedia

Mipro ACT-311B/ACT-32T/MU-23 Wireless Microphone

Kode Produk: Mipro ACT-311B/ACT-32T/MU-23
Ketersediaan: Tersedia
Harga:
Rp.7.050.000,00
