Spesifikasi Beta 3 U15A 15" Powered PA Speaker

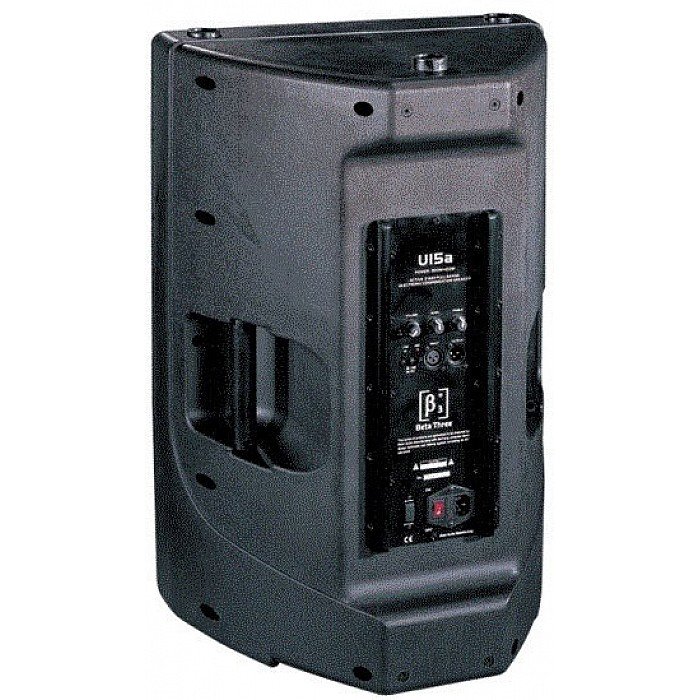

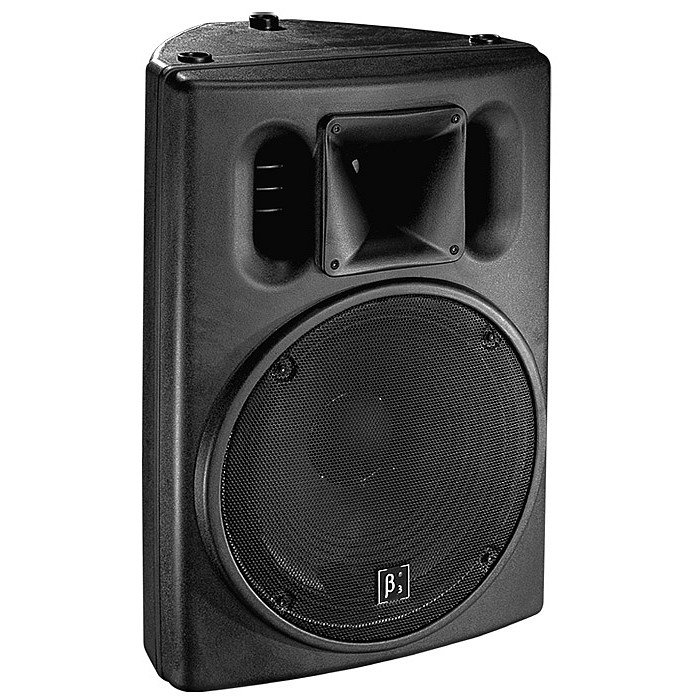

Beta 3 U15A 15" Powered PA Speaker

Portable and installed PA loudspeakers used in applications including sound reinforcement in houses of worship, events, clubs, rehearsal halls, ballrooms, etc. The U Series delivers extraordinary performance at unmatched value.

Key Features and Benefits:

• High sensitivity and SPL
• 1 x 15” high power transducer with 50mm voice coil
• 1 x 1.7” diaphragm compression driver
• Rotatable Horn: 50º-100º x 55º controlled coverage pattern
• Built-in Bi-amp power amplifier module
• Master volume control
• Bass and Treble control
• Heavy duty protective grill
• XLR input and output connectors
• Switchable between Mic and Line input
• Injection molded
• 2 x XLR connectors
• Suitable for use as a main system with or without sub speaker augmentation
• Cabinet design for FOH and Monitor use
• Portable system (stand), or permanent installation (wall, ceiling, under balcony)
• Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction

Construction: Plastic

Transducers:

• 1 x 1.7” HF
• + 1 x 15″ LF

Frequency Response (-3dB): 40Hz-18kHz

Rated Power:

• 100W HF
• 300W LF  (RMS)

Amplifier Type: Class H

Maximum SPL (1W @ 1m): 120dB (Peak)

Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ

Rated Impedance: 8Ω

Dispersion (H x V): 50º-100º x 55º

Connector: 2 x XLR

Net Dimensions: 19.1″ x 18.1″ x 27.6″

Net Weight: 67.2 lbs

Gross Dimensions: 21.5″ x 20.3″ x 31.5″

Gross Weight: 74.2 lbs
