Spesifikasi Sennheiser EW-D with Neumann KK205 Capsule Handheld Wireless System

Sennheiser EW-D with Neumann KK205 Capsule Handheld Wireless System

Get Award-Winning Neumann Sound

with an All-in-One Digital Handheld Set

This is a versatile, feature-rich system for those who sing, speak or mic their instruments which allows for seamless product pairing and management via the EW-D Smart Assist App. Receive legendary Neumann sound with the award-winning KMS 105 and it's super-cardioid pickup pattern, superior feedback rejection, and integrated foam pop protection.

Equidistant Spacing - Simpler Than it Sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in Sennheiser's flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

An Engineer in Your Pocket
The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.

Features

1. Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
2. Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
3. Auto scan creates reliable connections with minimal time and effort
4. 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
5. Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
6. 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
7. 2,240 selectable frequencies allow for fine tuning
8. Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
9.

SPECIFICATIONS
EW-D EM

Dimensions: 212 x 44 x 189 mm
Weight: Approx. 1000g (without antennas and power supply)
Current Consumption: Greater than or equal to 300 mA
Input Voltage Range: 11 - 13 V
Audio Output Level: 18 dBu max
Transmission Power: BLE: max. 10 mW EIRP

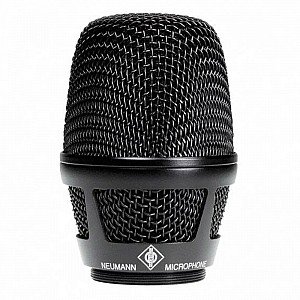

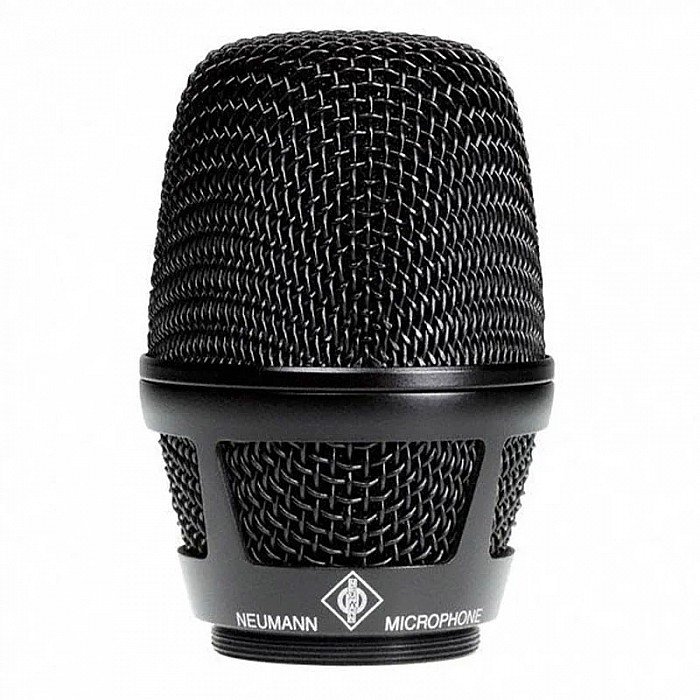

KK 205

Weight: 151 g
Sound Pressure Level (SPL): 150 dB
Transducer Principle: Externally polarized condenser microphone
Pick-Up Pattern: Super cardioid
Sensitivity: 1,8/5,7 mV/Pa

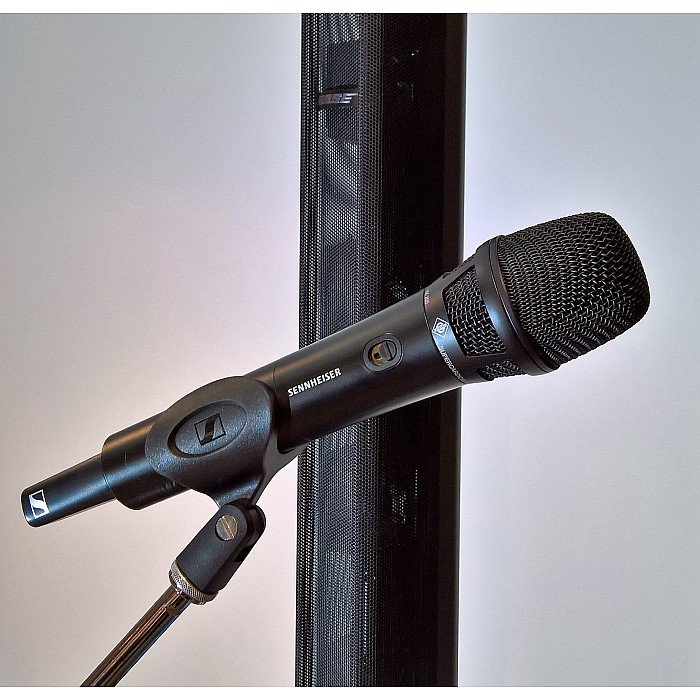

EW-D SKM-S

Weight: Approx. 195 g (without microphone module)
Power Supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
Current Consumption: Less than 300 mA
Input Voltage Range: 2.0 - 4.35 V
Transmission Power
Audio Link: 10 mW
ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
Dimensions
50 x 268 mm (incl. KK 205 microphone module)
40 x 200 mm (without microphone module)
General

Frequency Range: 470.2 - 526 MHz
THD, total harmonic distortion: greater than/equal to -60 dB for 1 kHz @ -3 dBfs input level
Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
Operating Relative Humidity: 5 - 95 % (non-condensing)
Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

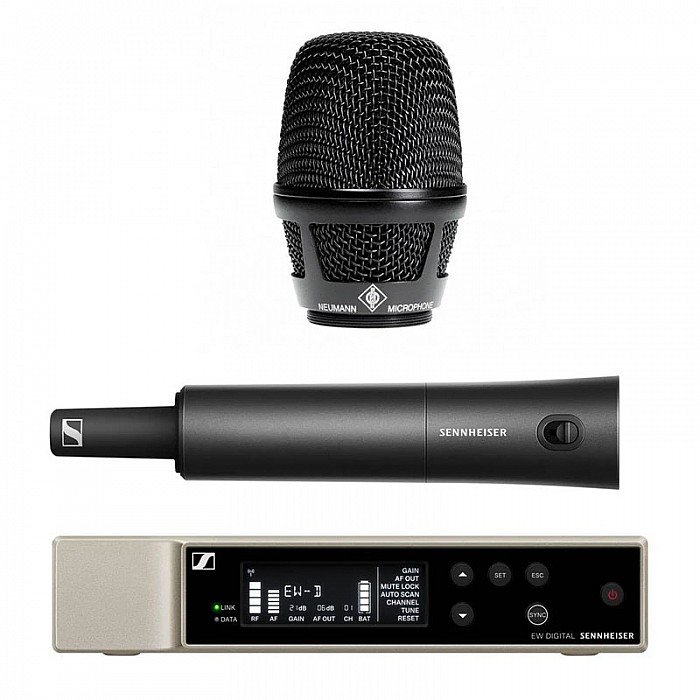

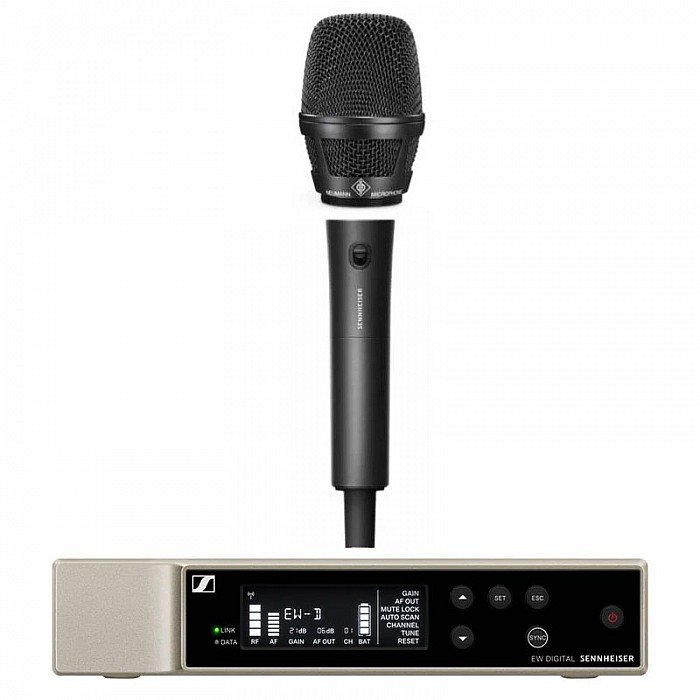

Included In Box

EW-D EM rack receiver
EW-D SKM-S handheld transmitter
KK 205 microphone module
MZQ 1 microphone clamp
2 rod antennas
Power supply with country adapters
Rackmount set
4 rubber feet
Quick guide
Safety guide
Manufacturer declaration sheet

Manufacturer: EW-DKK205
