Yamaha VS4 Passive Speaker (Pair)

Spesifikasi Yamaha VS4 Passive Speaker (Pair)

Yamaha VS4 Passive Speaker (Pair)

The Perfect Complement

A superb blend of aesthetic simplicity and functional sophistication, the VS Series delivers high quality sounds in a variety of indoor and outdoor settings, particularly locations where interior design is a consideration.

Let the VS Series be the perfect complement to your sonic needs.

• - Compact surface mount speakers with superior sound quality and sleek, functional design.
• - Series comprises two models: the VS6 (6.5" woofer) and VS4 (4" woofer) - both models feature a 1" balanced dome tweeter and are available in Black or White.
• - Waterproof construction meeting the IEC60529 IPX3 rating requirements for outdoor usage.
• - Internally mounted transformers allowing operation in 70V or 100V distributed sound systems.
• - Dedicated, color-matched steel U-bracket enclosed for horizontal or vertical installation.
• - Paintable enclosure and grill to match any decor.
• - Overload protection circuit provided to protect speaker components.
•

Specifications VS4

• Frequency response -10dB 100Hz - 20kHz
• Nominal coverage H 110
• V 110
• Components LF 4"(100mm) cone driver
• HF 1"(25mm) balanced dome tweeter
• Crossover 15kHz
• Power rating NOISE 15W
• PGM 30W
• PEAK 60W
• Nominal impedance 8

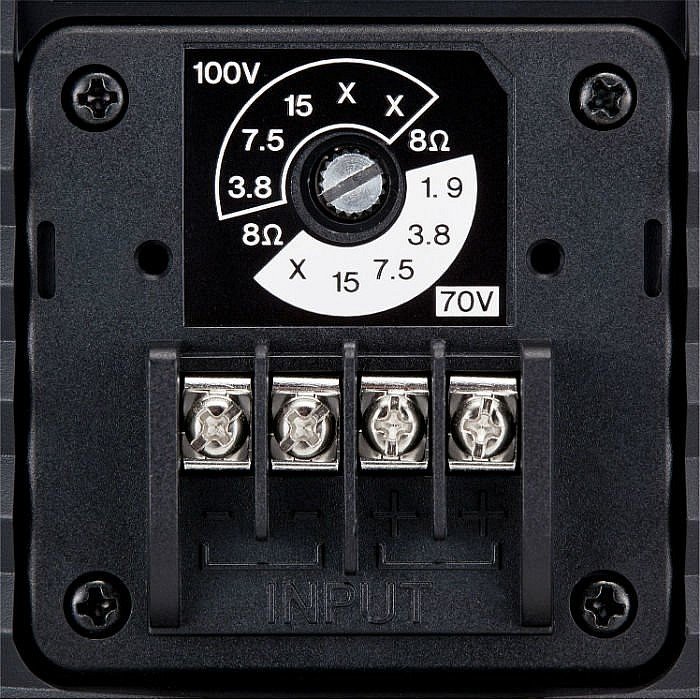

• Transformer taps 100V 15W, 7.5W, 3.8W
• 70V 15W, 7.5W, 3.8W, 1.9W
• SPL Sensitivity (1W; 1m on axis) 88dB SPL
• Peak (Calculated) 106dB SPL (60W)
• I/O connectors 2 pairs of barrier strip (parallel-wired)
• Shape Rectangular
• Cabinet material HIPS, 94-HB
• Finish VS4: Black, VS4W: White
• Flying and mounting hardware U-bracket (4 x 5.5mm and 2 x 11mm holes)
• Waterproof IEC60529 IPX3 splash proof rating
• Dimensions W 152 mm (6")
• H 243 mm (9 9/16")
• D 172 mm (6 3/4")
• Net weight 1.9kg (4.2lbs)
• Accessories U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal
• cover screw
